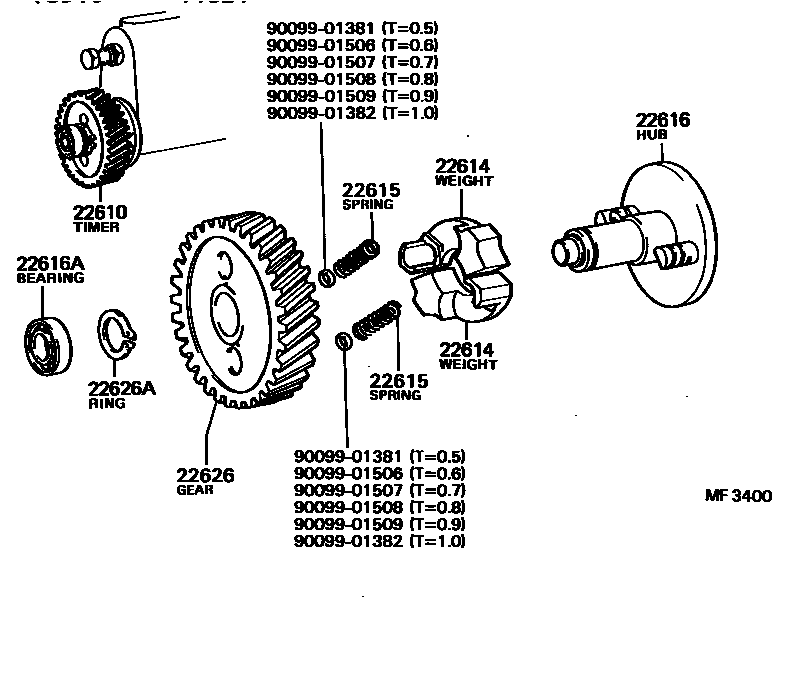

Toyota DYNA/TOYOACE — AUTOMATIC TIMER

22610TIMER ASSY, AUTOMATIC

main22610-56060i11B..BU61,81198501-198708

main22610-58020i13B#..BU62,64,77,82,85,9#198409-198708

22614WEIGHT, TIMER

main22614-56060×2i11B..BU61,81198501-198708

main22614-58020×2i13B#..BU62,64,77,82,85,9#198409-198708

22615SPRING, TIMER

main22615-58020×2i11B,13B#..BU61,62,64,77,81,82,85,9#198409-198708

22616HUB, TIMER

main22616-58020i11B,13B#..BU61,62,64,77,81,82,85,9#198409-198708

22616ABEARING(FOR TIMER HUB)

main90099-10018i11B,13B#..BU61,62,64,77,81,82,85,9#198409-198708

22626GEAR, DRIVE

main22626-58020i11B,13B#..BU61,62,64,77,81,82,85,9#198409-198708

22626ARING, CLAMP(FOR DRIVE GEAR)

main90096-90001i11B,13B#..BU61,62,64,77,81,82,85,9#198409-198708

9009901381

main90099-01381

9009901382

main90099-01382

9009901506

main90099-01506

9009901507

main90099-01507

9009901508

main90099-01508

9009901509

main90099-01509

13 parts on this diagram · 1 diagram in section
