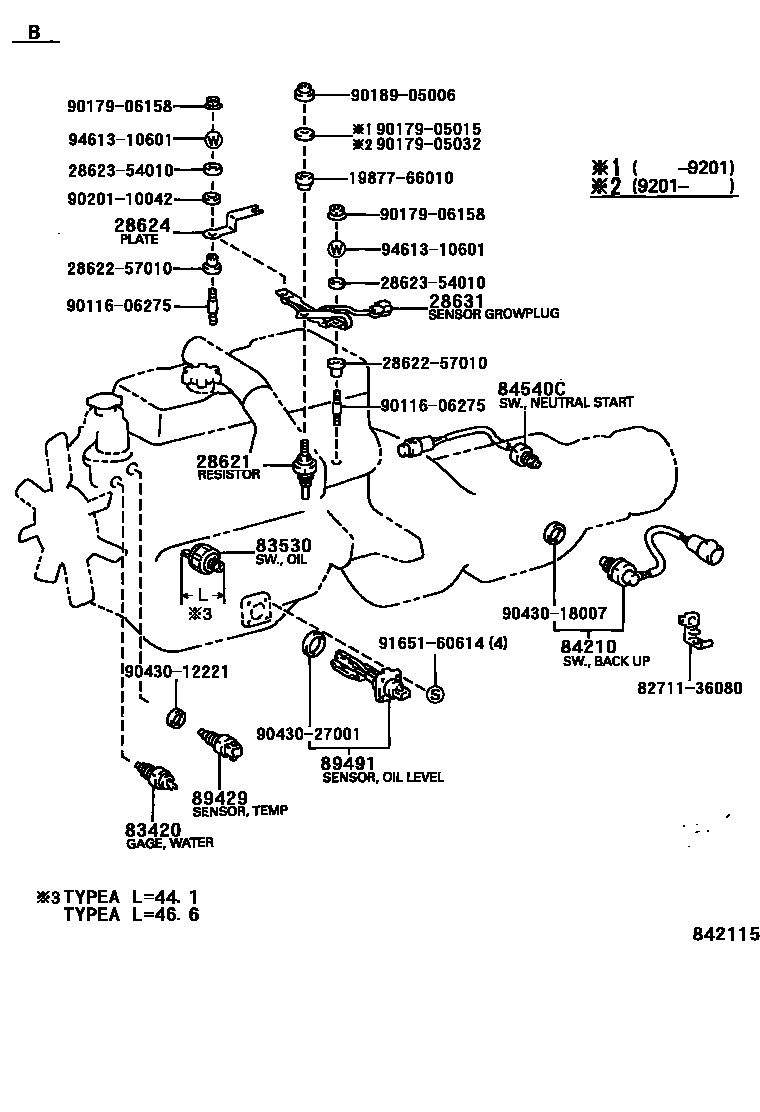

Toyota DYNA/TOYOACE QUICK — SWITCH & RELAY & COMPUTER
28621RESISTOR, GLOW PLUG
28624PLATE, CURRENT SENSOR
28631SENSOR, GLOW PLUG CURRENT
83420GAGE ASSY, WATER TEMPERATURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
TYPE A
TYPE B
84210SWITCH ASSY, BACK-UP LAMP
84540CSWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE)
89491SENSOR, ENGINE OIL LEVEL
1987766010
main19877-66010
2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1
main28622-57010
2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2
main28623-54010
8271136080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-36080
9011606275
main90116-06275
9017905015
main90179-05015
9017905032
main90179-05032
9017906158
main90179-06158
9018905006
main90189-05006
9020110042
main90201-10042
9043012221
main90430-12221
9043018007
main90430-18007
9043027001
main90430-27001
9165160614
main91651-60614
9461310601
main94613-10601
24 parts on this diagram · 4 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota DYNA/TOYOACE QUICK
This section contains 99 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota DYNA/TOYOACE QUICK. Key components include: BRACKET, EXHAUST BRAKE(FOR SOLENOID), SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE), RELAY ASSY, CHARGE LAMP, RELAY ASSY, STARTER, TIMER, PREHEATING.
