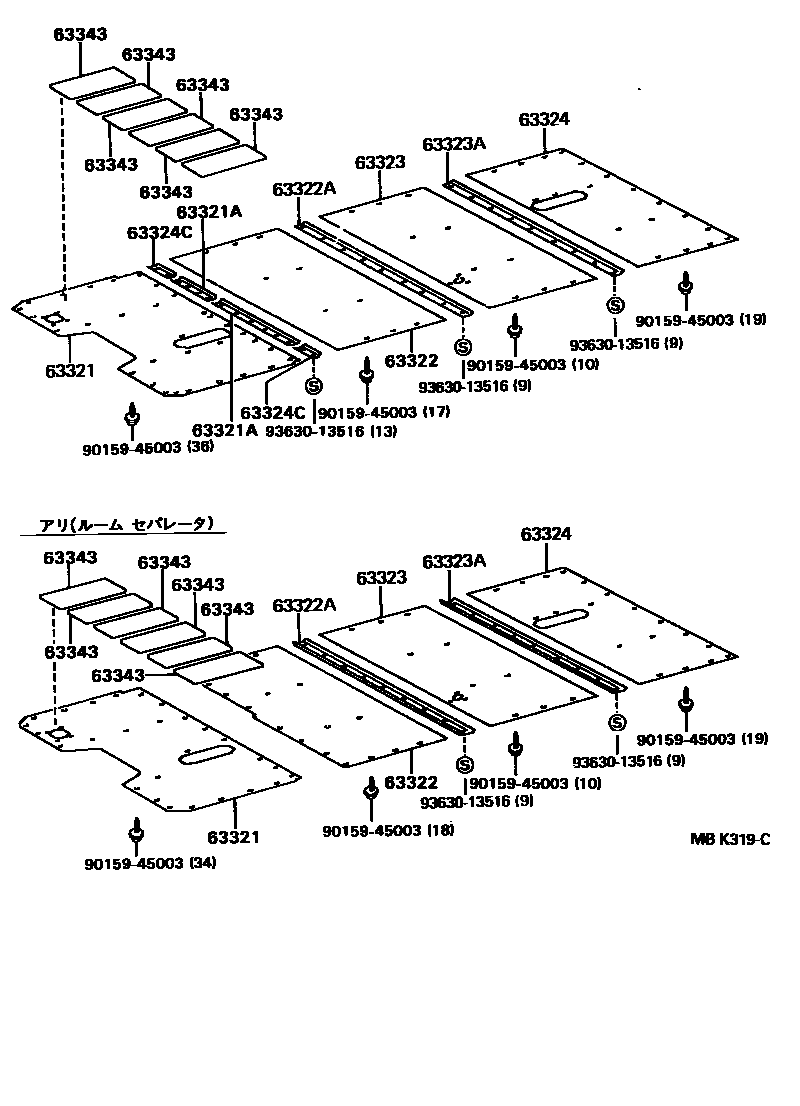

Toyota DYNA/TOYOACE QUICK — ROOF HEADLINING & SILENCER PAD
63321BOARD, ROOF, NO.1
W/ROOM LAMP
W/ROOM LAMP,RADIO
63321APLATE, ROOF HEADLINING SEAT, NO.1
63322BOARD, ROOF, NO.2
W/ROOM SEPARATOR
W/ROOM SEPARATOR CURTAIN TYPE
W/ROOM SEPARATOR SLIDE TYPE
63322APLATE, ROOF HEADLINING SEAT, NO.2
63323BOARD, ROOF, NO.3
W/ROOM LAMP
63323APLATE, ROOF HEADLINING SEAT, NO.3
63324BOARD, ROOF, NO.4
63324CPLATE, ROOF HEADLINING SEAT, NO.4
RH
LH
63343PAD, ROOF SILENCER, NO.3
9015945003
main90159-45003
9363013516
main93630-13516
11 parts on this diagram · 1 diagram in section
ROOF HEADLINING & SILENCER PAD for Toyota DYNA/TOYOACE QUICK
This section contains 11 genuine Toyota parts for the ROOF HEADLINING & SILENCER PAD system of the Toyota DYNA/TOYOACE QUICK. Key components include: BOARD, ROOF, NO.1, PLATE, ROOF HEADLINING SEAT, NO.1, BOARD, ROOF, NO.2, PLATE, ROOF HEADLINING SEAT, NO.2, BOARD, ROOF, NO.3.
