Toyota DYNA/TOYOACE QUICK — REAR BUMPER & BUMPER STAY

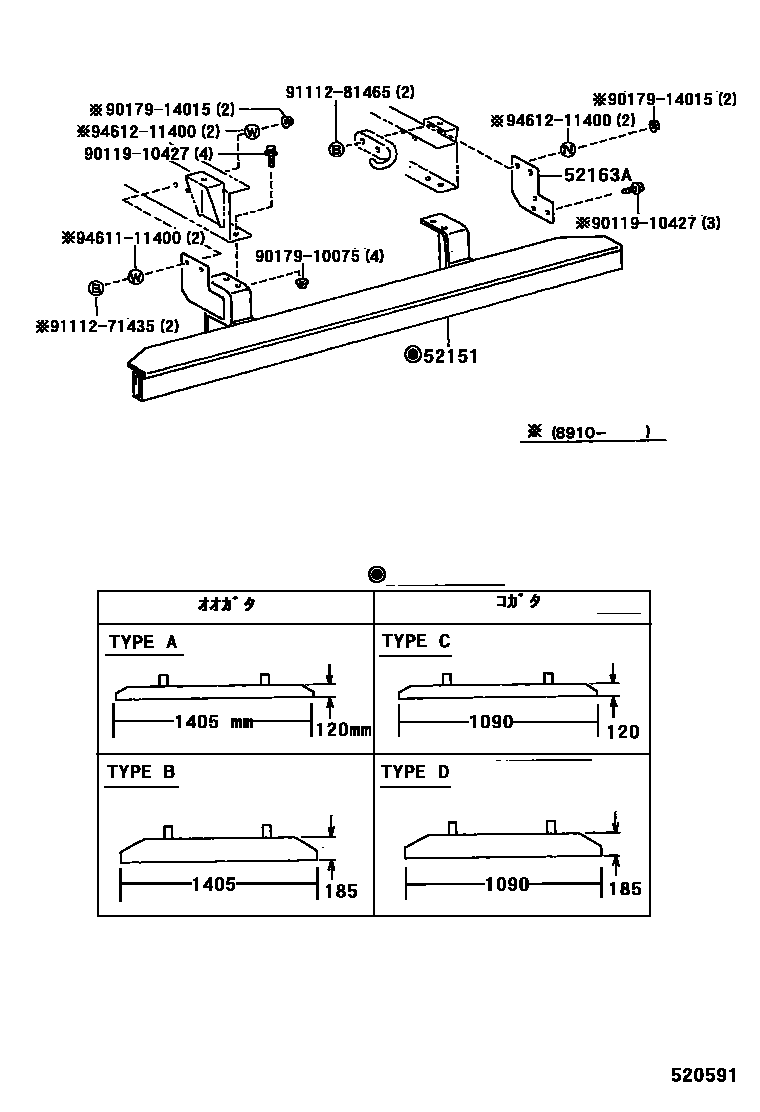

Parts diagram

52151BUMPER ASSY, REAR

main52105-90F00i198601-198708

main52105-90F03i198601-198708

main52105-90F04i198805-198910

main52105-90F05i198805-198910

main52105-90F06i198910-199008

main52105-90F07i198910-199008

main52105-90F08i199008-199505

main52105-90F09i199008-199505

52163APLATE, REAR BUMPER, RH

main52163-90F00i198910-199505

9011910427

main90119-10427

9017910075

main90179-10075

9017914015

main90179-14015

9111271435

main91112-71435

9111281465

main91112-81465

9461111400

main94611-11400

9461211400

main94612-11400

9 parts on this diagram · 1 diagram in section

REAR BUMPER & BUMPER STAY for Toyota DYNA/TOYOACE QUICK

This section contains 9 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota DYNA/TOYOACE QUICK. Key components include: BUMPER ASSY, REAR, PLATE, REAR BUMPER, RH.
