Toyota DYNA/TOYOACE QUICK — HEATING & AIR CONDITIONING - SET

88039ADDITIONAL KIT,AIRCONDITIONER

main88039-90F00i198603-198805

88820AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1

main88820-37010i199309-199505

main88820-90F01i198601-198703

main88820-90F03i198703-198808

main88820-90F06i198808-199309

88820AAIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2

main88830-37010i199309-199505

main88830-90F00i198601-198703

main88830-90F01i198703-198808

main88830-90F02i198808-198910

main88830-90F03i198910-199309

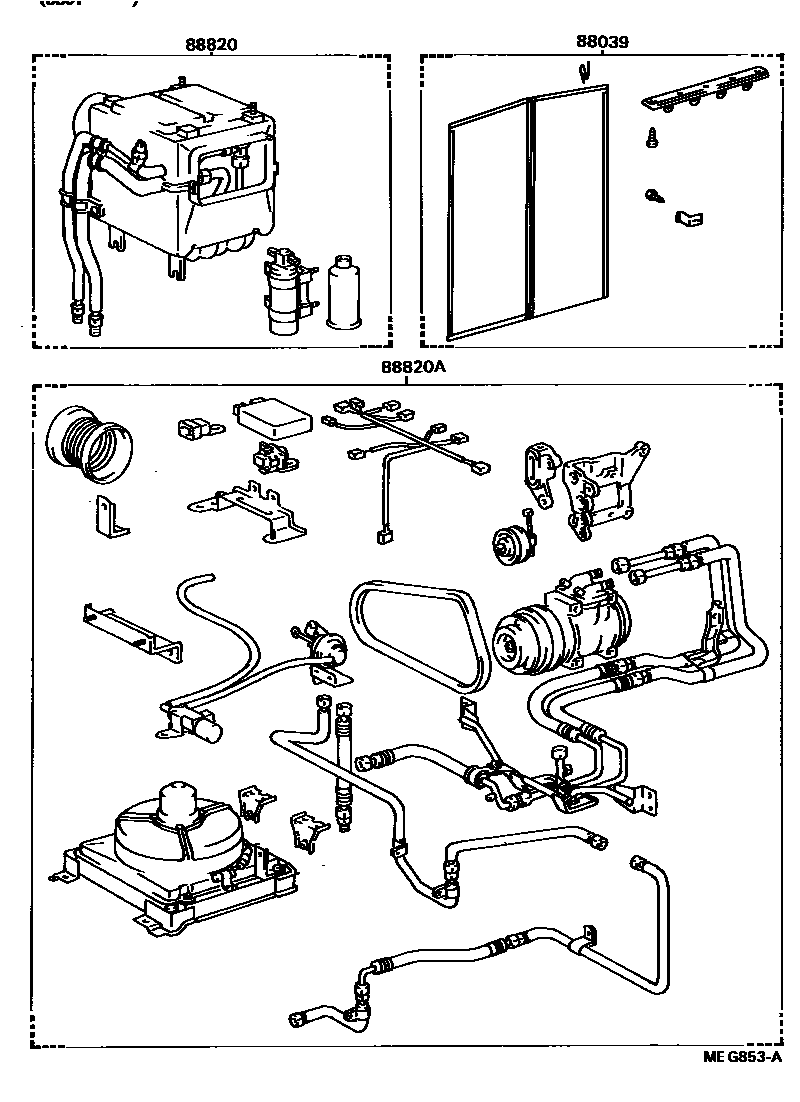

3 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - SET for Toyota DYNA/TOYOACE QUICK

This section contains 3 genuine Toyota parts for the HEATING & AIR CONDITIONING - SET system of the Toyota DYNA/TOYOACE QUICK. Key components include: ADDITIONAL KIT,AIRCONDITIONER, AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.1, AIR CONDITIONER & ACCESSORY SUB-ASSY, NO.2.
