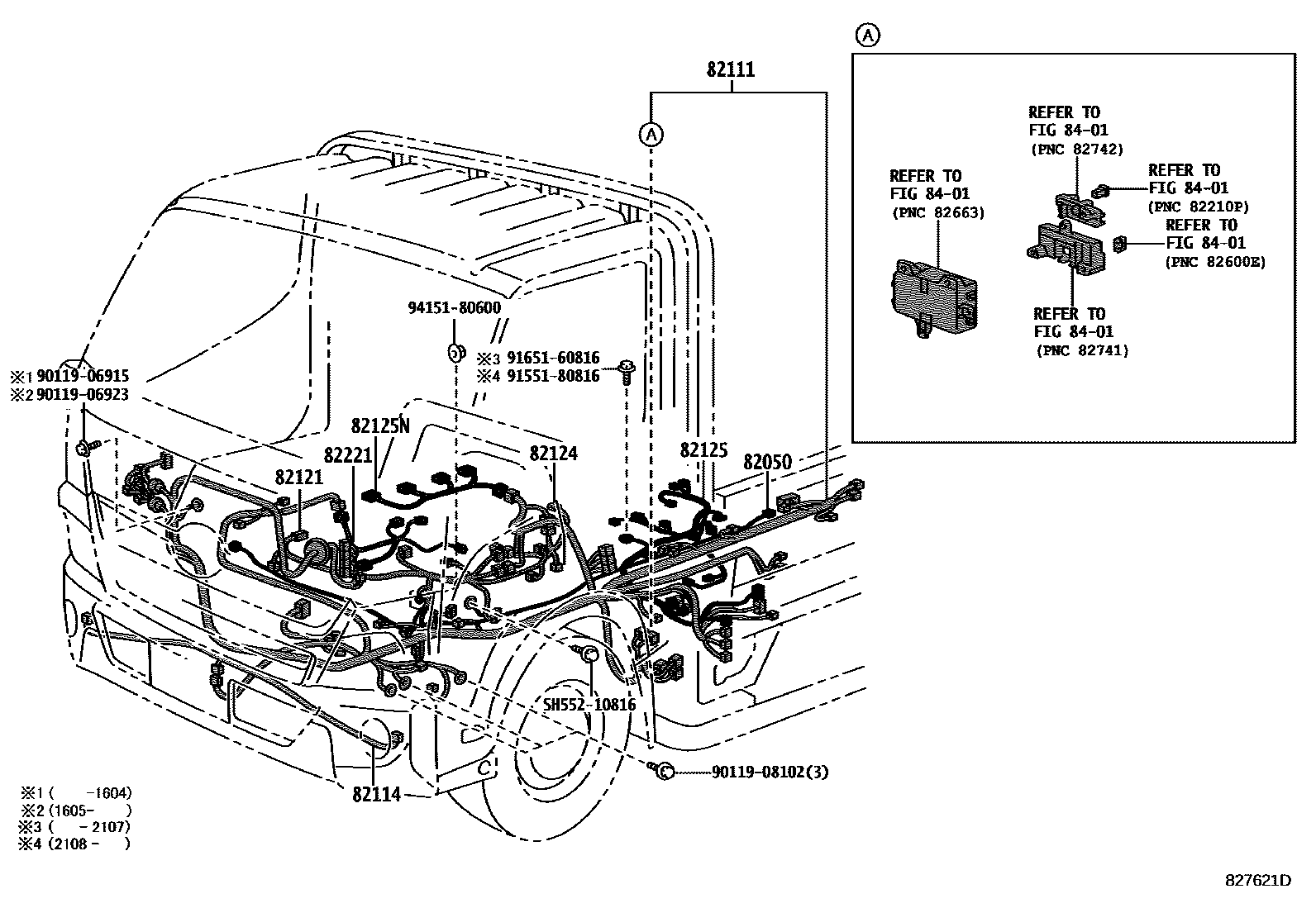

82050WIRE ASSY, ENGINE

main82050-37010

82111WIRE, ENGINE ROOM MAIN

main82115-37U07iXKU700,710,720201605-201705

main82115-37U08iXKU700,710,720..5F201705-201805

main82115-37U10iXKU700,710,720201107-201311

sub82115-37U11

main82115-37U11iXKU700,710,720201312-201405

sub82115-37U12

main82115-37U13iXKU700,710,720201405-201411

sub82115-37U14

main82115-37U14iXKU700,710,720201412-201601

sub82115-37U15

main82115-37U15iXKU700,710,720201602-201605

main82115-37V20iXKU702,71#,72#..6F201711-201905

main82115-3VG20iXKU702,71#,72#..DCWDO202310

main82116-37P60iXKU702,71#,72#201905-201907

sub82116-37P61

main82116-37P61iXKU702,71#,72#..DCRWD201908

main82116-37Z50iXKU702,71#,72#..DCWDO202103-202201

sub82116-37Z51

main82116-37Z51iXKU702,71#,72#..DCWDO202202-202310

82114WIRE, ENGINE ROOM, NO.4

main82114-37330iXKU702,71#,72#..DCWDO201905

82121WIRE, ENGINE

main82121-37K20iXKU702,71#,72#..DCRWD201905

main82121-37L90iXKU702,71#,72#..DCWDO202103

main82121-E1E71iXKU700,710,720201107-201202

sub82121-E1E72

main82121-E1E72iXKU700,710,720201202-201710

sub82121-E1E73

main82121-E1E73iXKU700,710,720..5F201711-201905

82124WIRE, ENGINE, NO.4

main82121-37K60iXKU702,71#,72#..DCRWD201905

main82121-E1M60iXKU700,710,720201107-201905

82125WIRE, TRANSMISSION

main82125-37410iXKU700,710,720201107-201805

main82125-37530iXKU702,71#,72#..6F201711-201905

main82125-37660iXKU702,71#,72#..DCRWD201905

82125NWIRE, ENGINE, NO.5

main82121-37L50iXKU702,71#,72#..DCRWD201905

main82121-E1Y50iXKU700,710,720..5F201112-201905

sub82121-37L60

mainS820647882iXKU700,710,720201107-201112

sub82121-E1Y50

82221WIRE, OIL PRESSURE SWITCH

main82221-37220iXKU700,710,720201107-201509

sub82221-37221

main82221-37221iXKU700,710,720201510-201905

8401

9011906915

main90119-06915

9011906923

main90119-06923

9011908102

main90119-08102

9155180816

main91551-80816

9165160816

main91651-60816

9415180600

main94151-80600

SH55210816

mainSH552-10816

16 parts on this diagram · 13 diagrams in section
