Toyota DYNA/TOYOACE HV — WINDSHIELD WIPER

0001 1��(�����������������) 0002 1��(�����������������)

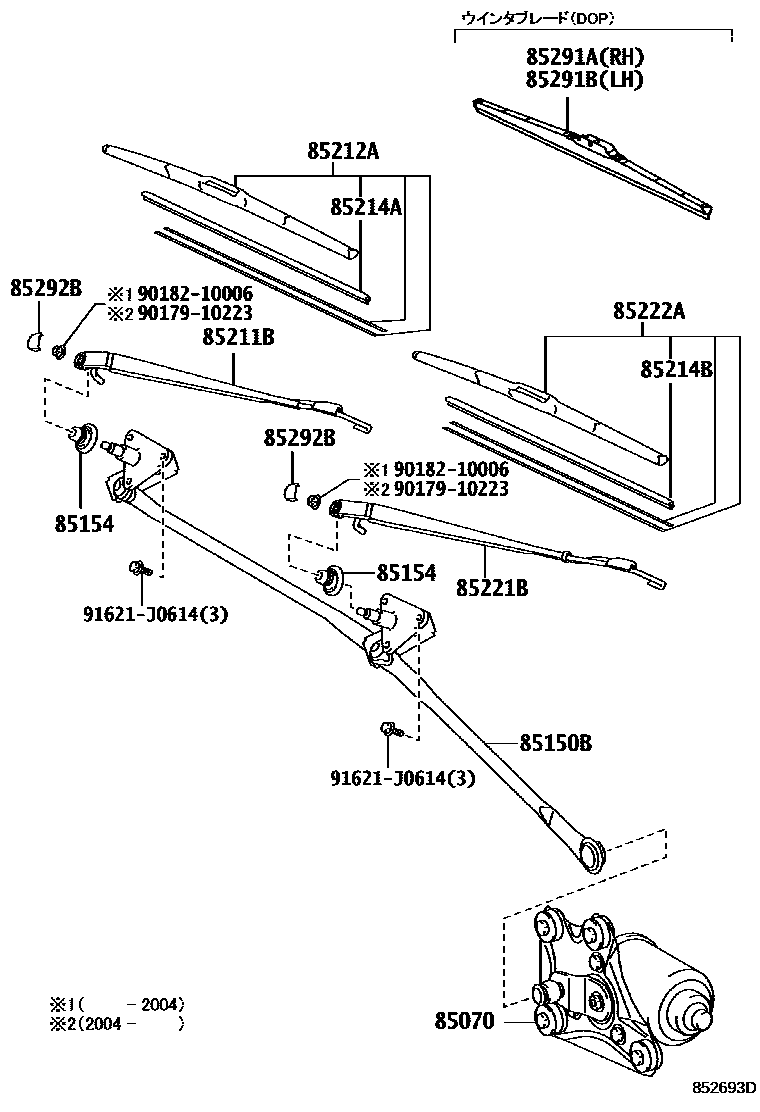

85070MOTOR & BRACKET ASSY, FRONT WIPER

main85070-37282iXKU700,710,720..5F201709-201805

main85070-37292iXKU700,710,720201107-201312

sub85070-37293

main85070-37293iXKU702,71#,72#..DCRWD201401-201905

85150BLINK ASSY, WIPER

main85150-37161iXKU702,71#,72#..DCRWD201107-201905

85154PACKING, FRONT WIPER SHAFT

main85154-37052iXKU700,710,720201107-201905

85211BARM, FRONT WIPER, RH

main85211-37151iXKU700,710,720201107-201705

main85211-37190iXKU700,710,720..5F201705-201905

85212ABLADE, FR WIPER, RH

main85212-37120iXKU702,71#,72#..DCRWD201705-201905

main85222-53060iXKU700,710,720201107-201705

85214ARUBBER, WIPER, RH

main85214-48010iXKU700,710,720..5F201705-201905

main85214-53090iXKU700,710,720201107-201705

85214BRUBBER, WIPER, LH

main85214-48010iXKU702,71#,72#..DCRWD201705-201905

main85214-53090iXKU700,710,720201107-201705

85221BARM, FRONT WIPER, LH

main85221-37201iXKU700,710,720201107-201705

main85221-37270iXKU702,71#,72#..6F201705-201905

85222ABLADE, FR WIPER, LH

main85222-12880iXKU700,710,720201107-201705

main85222-37180iXKU700,710,720..5F201705-201905

85291ABLADE, FRONT WIPER, WINTER, RH

85291BBLADE, FRONT WIPER, WINTER, LH

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iXKU700,710,720201107-201905

9017910223

main90179-10223

9018210006

main90182-10006

91621J0614

main91621-J0614

15 parts on this diagram · 2 diagrams in section
