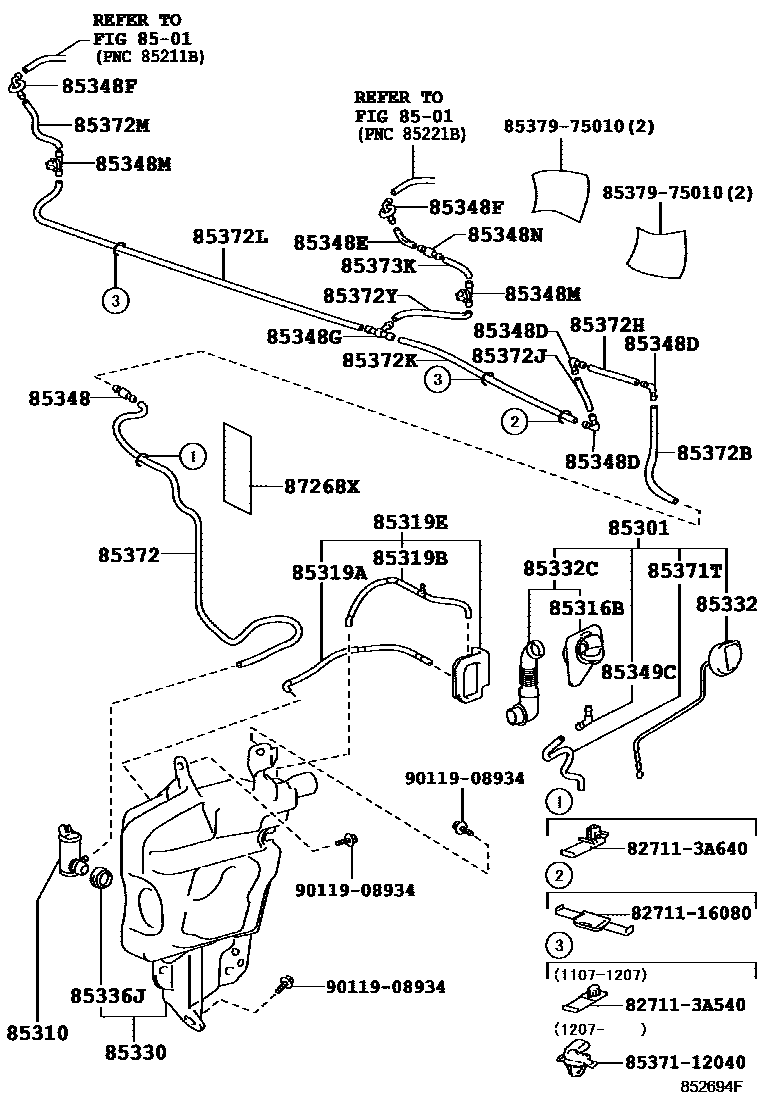

Toyota DYNA/TOYOACE HV — WINDSHIELD WASHER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1W(HEADLAMP CLEANER)

8501

85301INLET SUB-ASSY, WASHER

main85301-37022iXKU700,710,720201107-201611

main85301-37070iXKU700,710,720201611-201904

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-90B00iXKU702,71#,72#..DCWDO201905

main85310-90B00iXKU700,710,720201107-201905

85316BCAP, WASHER, INLET

main85386-37010iXKU700,710,720201107-201905

85319AHOSE, INLET

main85319-37200iXKU702,71#,72#..DCRWD201905

main85319-37200iXKU700,710,720201107-201905

85319BHOSE, WINDOW WASHER

main85319-37150iXKU700,710,720201107-201905

main85319-37150iXKU702,71#,72#..DCRWD201905

85319EINLET WASHER

main85318-37150iXKU700,710,720201107-201905

main85318-37150iXKU702,71#,72#..DCRWD201905

85330JAR ASSY, WINDSHIELD WASHER

main85315-37150iXKU700,710,720201107-201905

85332CAP, WINDSHIELD WASHER JAR

main85332-37071iXKU702,71#,72#..DCRWD201107-201905

85332CCAP, FRONT WASHER TANK

main85386-37020iXKU700,710,720201107-201611

main85386-37070iXKU702,71#,72#..6F201611-201904

85336JPROTECTOR, WASHER JAR

main90099-32089iXKU702,71#,72#..DCWDO201905

main90099-32089iXKU700,710,720201107-201905

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-12520iXKU700,710,720201107-201905

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200iXKU700,710,720201107-201304

main85375-33070iXKU702,71#,72#..DCWDO201304-202312

sub85376-10250

main85376-10250iXKU702,71#,72#..DCWDO202312

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-14481iXKU700,710,720201107-201905

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

mainS853531020iXKU700,710,720201107-201905

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250iXKU702,71#,72#..DCRWD201304-201905

main85375-28110iXKU700,710,720201107-201304

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-17050iXKU700,710,720201107-201905

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85375-12520iXKU702,71#,72#..DCRWD201107-201905

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iXKU700,710,720..5F201412-201905

85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4

main85377-50110iXKU700,710,720201107-201905

85371THOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT)

main90446-06013iXKU700,710,720201107-201905

main90446-06013iXKU702,71#,72#..DCRWD201905

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iXKU700,710,720201107-201705

main90099-33080iXKU700,710,720..5F201705-201905

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iXKU700,710,720201107-201412

main90446-07001iXKU700,710,720201412-201905

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iXKU700,710,720..5F201705-201905

main90446-07001iXKU700,710,720201107-201705

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001iXKU700,710,720201107-201705

main90446-07001iXKU700,710,720..5F201705-201905

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-33080iXKU702,71#,72#..DCWDO201304-201905

main90446-07001iXKU700,710,720201107-201304

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main90446-07001iXKU700,710,720201107-201705

main90446-07001iXKU700,710,720..5F201705-201905

85372MHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7

main90099-33080iXKU700,710,720201107-201304

main90099-33299iXKU700,710,720201304-201905

85372YHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8

main90099-33080iXKU702,71#,72#..DCWDO202103

main90099-33080iXKU700,710,720201507-201905

main90446-07001iXKU700,710,720201107-201304

85373KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.9

main90099-33299iXKU700,710,720201107-201304

87268XPROTECTOR

main87268-37110iXKU700,710,720201107-201905

8271116080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16080

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

8537975010JOINT

main85379-75010

9011908934

main90119-08934
