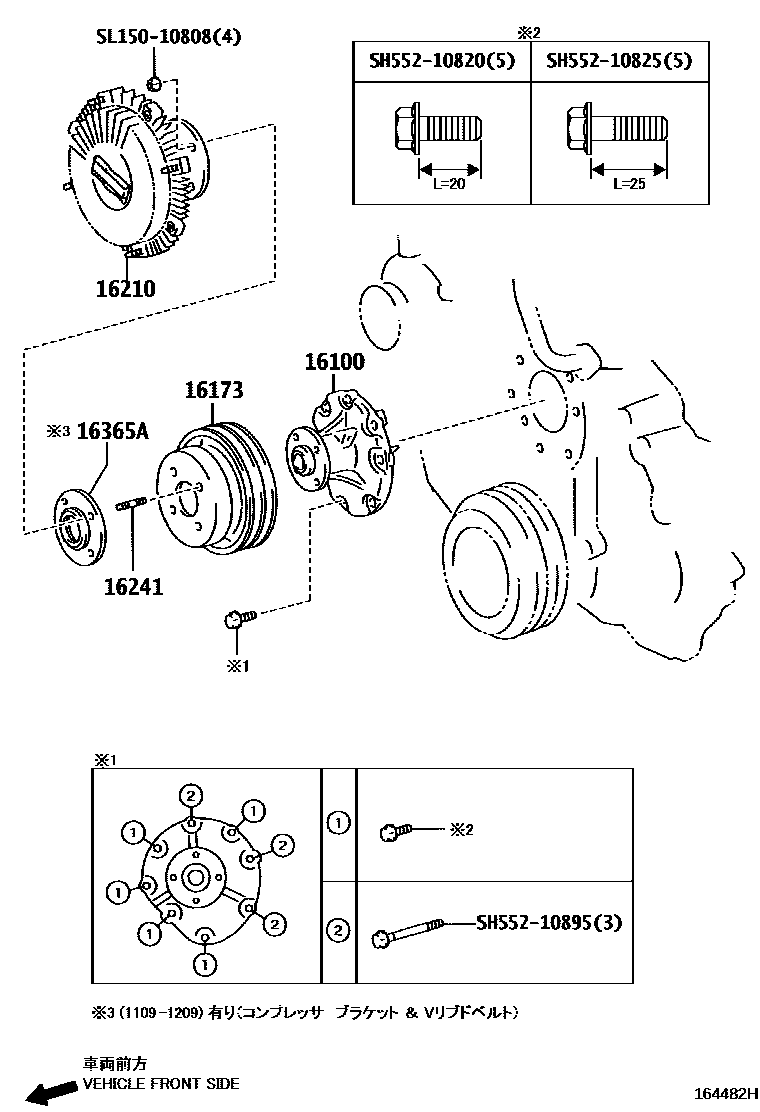

Toyota DYNA/TOYOACE HV — WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-E0780iN04C..XKU700,710,720201107-201612

sub16100-E0B60

main16100-E0B60iN04C..XKU700,710,720..5F201612-201812

sub16100-E0B61

main16100-E0B61iN04C..XKU702,71#,72#..6F201901-201905

main16100-E0B71iN04C..XKU702,71#,72#..DCRWD201905

16173PULLEY, WATER PUMP

main16107-E0020iN04C..XKU700,710,720201107-201905

main16173-78030iN04C..XKU702,71#,72#..DCRWD201905

16210COUPLING ASSY, FLUID

main16250-78220iN04C..XKU702,71#,72#..DCWDO201905

main16250-E0251iN04C..XKU700,710,720201107-201905

16241BOLT, STUD(FOR WATER PUMP COUPLING)

mainSJ11200822iN04C..XKU700,710,720201107-201905

16365ASPACER, FAN

SH55210820

mainSH552-10820

SH55210825

mainSH552-10825

SH55210895

mainSH552-10895

SL15010808

mainSL150-10808

9 parts on this diagram · 2 diagrams in section
