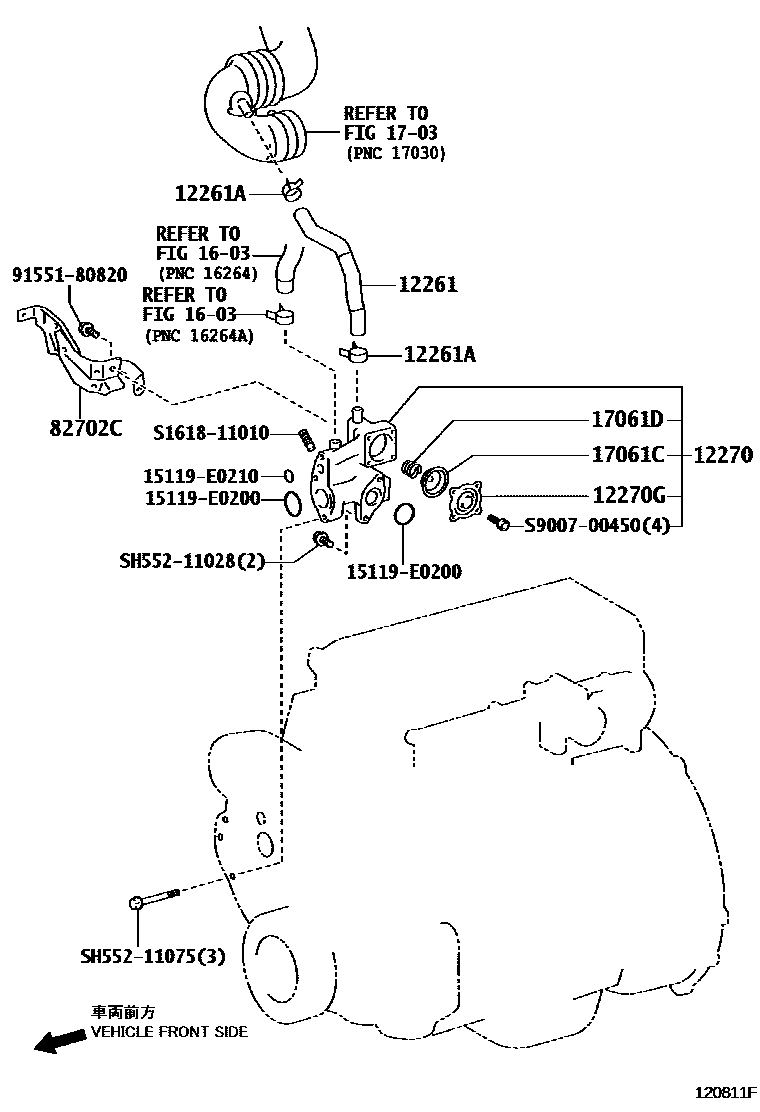

Toyota DYNA/TOYOACE HV — VENTILATION HOSE

0001 1 0002 1

12261HOSE, VENTILATION

main12261-78471iN04C..XKU700,710,720201107-201312

sub12261-78472

main12261-78472iN04C..XKU700,710,720201401-201905

main12261-78820iN04C..XKU702,71#,72#..DCWDO201905

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main96136-42901iN04C..XKU700,710,720201107-201905

main96136-42901iN04C..XKU702,71#,72#..DCRWD201905

mainSZ46628001iN04C..XKU702,71#,72#..DCRWD201905

12270SEPARATOR ASSY, OIL

main12270-78051iN04C..XKU702,71#,72#..DCRWD201905

main12270-E0130iN04C..XKU700,710,720201107-201402

sub12270-E0131

main12270-E0131iN04C..XKU700,710,720..5F201403-201905

12270GCOVER

mainS900757139iN04C..XKU700,710,720201107-201905

1603

1703

17061CDIAPHRAGM SUB-ASSY

main17061-EV010iN04C..XKU700,710,720201107-201905

17061DSPRING L

mainSZ01070031iN04C..XKU700,710,720201107-201403

subSZ010-70053

mainSZ01070053iN04C..XKU700,710,720201403-201905

82702CBRACKET SUB-ASSY, WIRING HARNESS

main82702-37760iXKU700,710,720201107-201905

15119E0200GASKET, OIL PUMP COVER

main15119-E0200

15119E0210GASKET, OIL PUMP COVER

main15119-E0210

9155180820

main91551-80820

S161811010

mainS1618-11010

S900700450

mainS9007-00450

SH55211028

mainSH552-11028

SH55211075

mainSH552-11075

16 parts on this diagram · 2 diagrams in section
