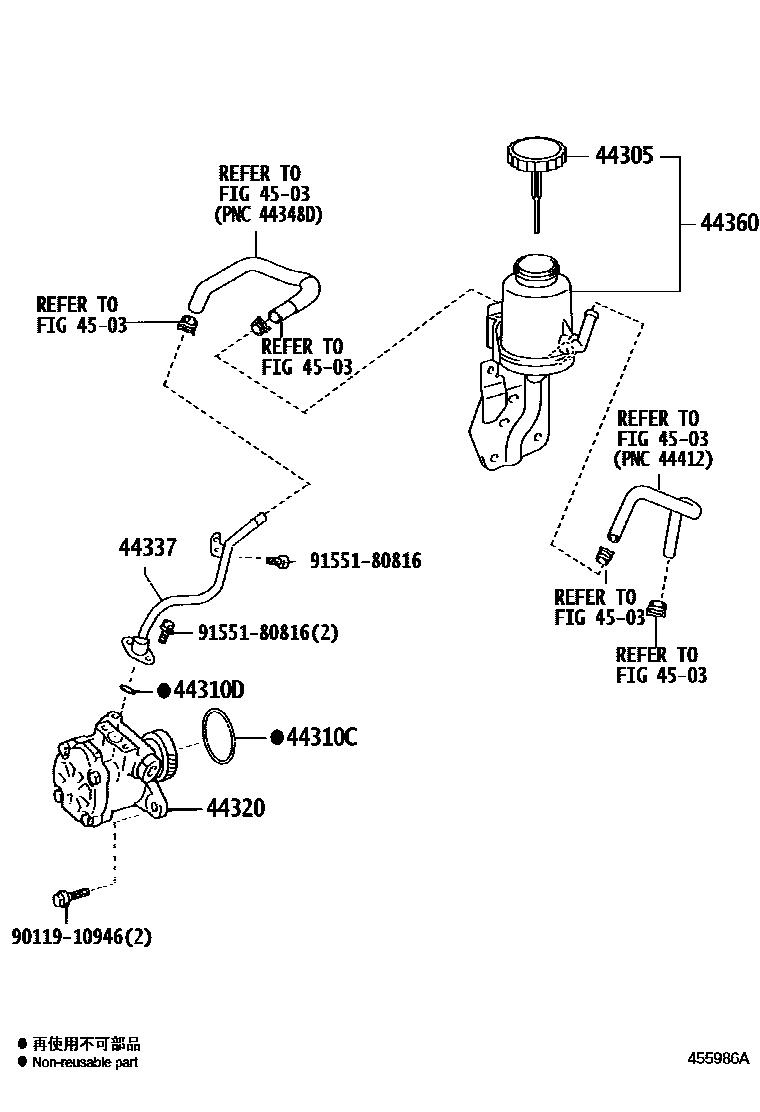

Toyota DYNA/TOYOACE HV — VANE PUMP & RESERVOIR (POWER STEERING)

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-37030iXKU700,710,720201107-201112

sub44305-37031

main44305-37031iXKU700,710,720201201-201905

44310CRING, O(FOR VANE PUMP)

main90301-60002iXKU70#,71#,72#201107-201905

44310DRING, O(FOR VANE PUMP UNION)

main90301-15019iXKU700,710,720201107-201905

44320PUMP ASSY, VANE

main44310-37180iXKU710,720..20T201107-201905

main44310-37280iXKU702,712,722..DCRWD201107-201905

44337UNION, POWER STEERING SUCTION PORT

main44337-37401iXKU700,710,720201107-201702

sub44337-37402

main44337-37402iXKU702,71#,72#..DCRWD201703-201905

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-37230iXKU700,710,720201107-201604

sub44360-37231

main44360-37231iXKU700,710,720201605-201905

4503

9011910946

main90119-10946

9155180816

main91551-80816

9 parts on this diagram · 1 diagram in section
