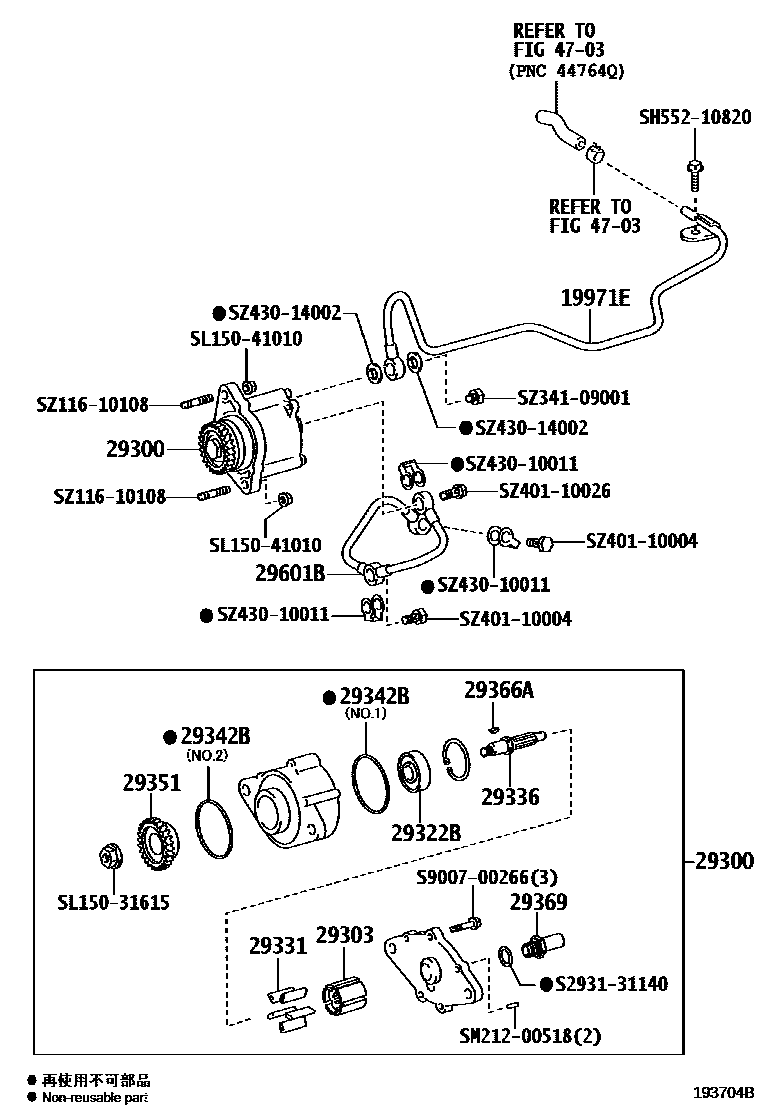

Toyota DYNA/TOYOACE HV — VACUUM PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

19971EPIPE, VACUUM

main87207-37F41iN04C..XKU700,710,720201107-201905

main87207-37F61iN04C..XKU702,71#,72#..DCWDO201905

29300PUMP ASSY, VACUUM

main29300-E0051iN04C..XKU700,710,720201107-201505

sub29300-E0090

main29300-E0090iN04C..XKU702,71#,72#..DCWDO201506-201905

main29300-E0100iN04C..XKU700,710,720201202-201309

sub29300-E0051

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-EV020iN04C..XKU700,710,720201506-201905

mainS293031020iN04C..XKU700,710,720201107-201506

29322BBEARING, VACUUM PUMP

mainS291721160iN04C..XKU700,710,720201107-201506

29331BLADE, VACUUM PUMP, A

main29331-EV020iN04C..XKU702,71#,72#..DCWDO201506-201905

mainS293311100iN04C..XKU700,710,720201107-201506

29336SHAFT, VACUUM PUMP

mainS293361030iN04C..XKU700,710,720201107-201506

29342PACKING, VACUUM PUMP

main29342-EV010iN04C..XKU702,71#,72#..6F201202-201905

29342BRING, O

main29343-EV020iN04C..XKU700,710,720201202-201309

sub29343-EV030

main29343-EV030iN04C..XKU700,710,720201506-201705

mainSZ01046050iN04C..XKU700,710,720201107-201506

mainSZ01046051iN04C..XKU700,710,720201107-201506

29351GEAR, VACUUM PUMP

mainS136331050iN04C..XKU700,710,720201107-201506

29366AKEY, VACUUM PUMP

mainSM16100413iN04C..XKU700,710,720201107-201506

29369VALVE SUB-ASSY, CHECK

main29369-EV020iN04C..XKU700,710,720201202-201309

sub29369-EV060

main29369-EV060iN04C..XKU702,71#,72#..6F201506-201905

mainS293011270iN04C..XKU700,710,720201107-201506

29601BPIPE SUB-ASSY, OIL(FOR VACUUM PUMP)

main29601-E0320iN04C..XKU700,710,720201107-201905

4703

S293131140

mainS2931-31140

S900700266

mainS9007-00266

SH55210820

mainSH552-10820

SL15031615

mainSL150-31615

SL15041010

mainSL150-41010

SM21200518

mainSM212-00518

SZ11610108

mainSZ116-10108

SZ34109001

mainSZ341-09001

SZ40110004

mainSZ401-10004

SZ40110026

mainSZ401-10026

SZ43010011WASHER, SOFT, NO.1

mainSZ430-10011

SZ43014002WASHER, SOFT, NO.1

mainSZ430-14002

25 parts on this diagram · 6 diagrams in section
