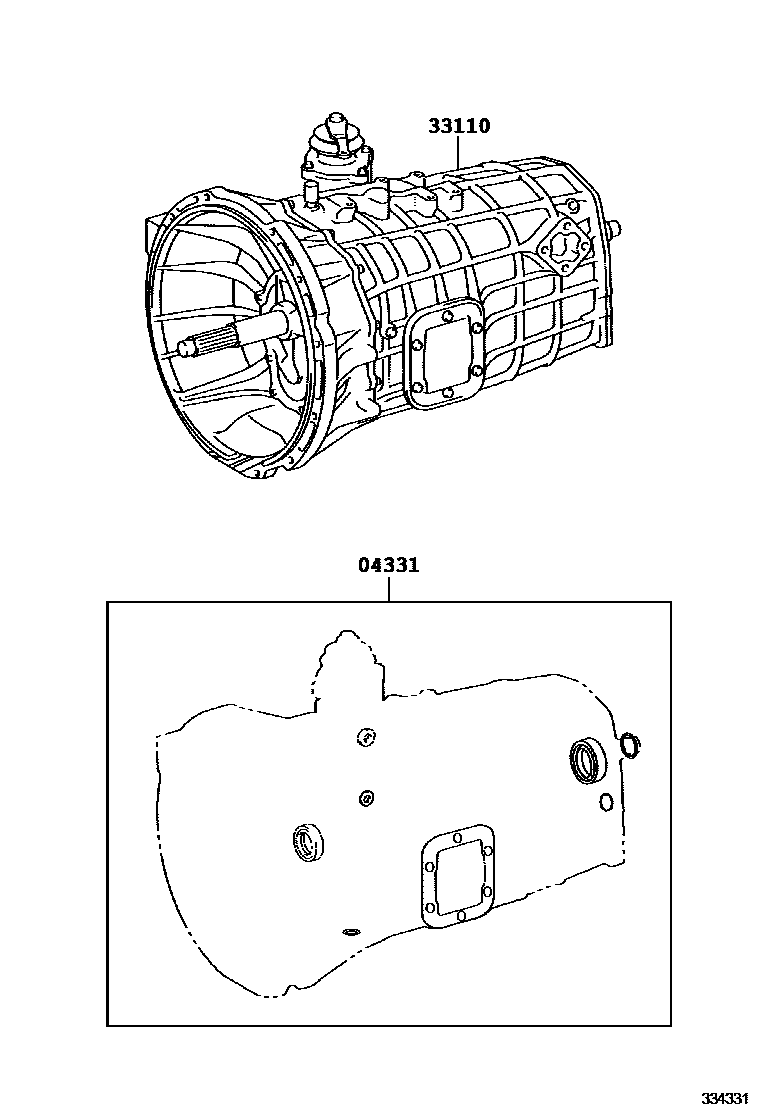

Toyota DYNA/TOYOACE HV — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1M550 0002 1RE60 0003 1RE62

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-36440iXKU700,710,720..5F201107-201805

main04331-37430iXKU702,71#,72#..6F201711-201905

main04331-37460iXKU702,71#,72#..DCRWD201905

33110TRANSMISSION ASSY, MANUAL

main33110-37J70iXKU700,710,720201107-201207

sub33110-37J71

main33110-37J71iXKU700,710,720201207-201309

sub33110-37J72

main33110-37J72iXKU700,710,720201309-201506

sub33110-37J73

main33110-37J73iXKU700,710,720201506-201606

sub33110-37J74

main33110-37J74iXKU700,710,720201607-201608

sub33110-37J75

main33110-37J75iXKU700,710,720201608-201706

sub33110-37J76

main33110-37J76iXKU700,710,720201706-201710

sub33110-37N60

sub31482-37420

sub31484-37460

sub90034-61057

sub90468-08035

main33110-37N41iXKU702,71#,72#..6F201711-201903

sub33110-37P20

main33110-37N60iXKU700,710,720..5F201710-201805

main33110-37P20iXKU702,71#,72#..6F201903-201905

sub33110-37P21

main33110-37P90iXKU702,71#,72#..DCRWD201905

2 parts on this diagram · 3 diagrams in section
