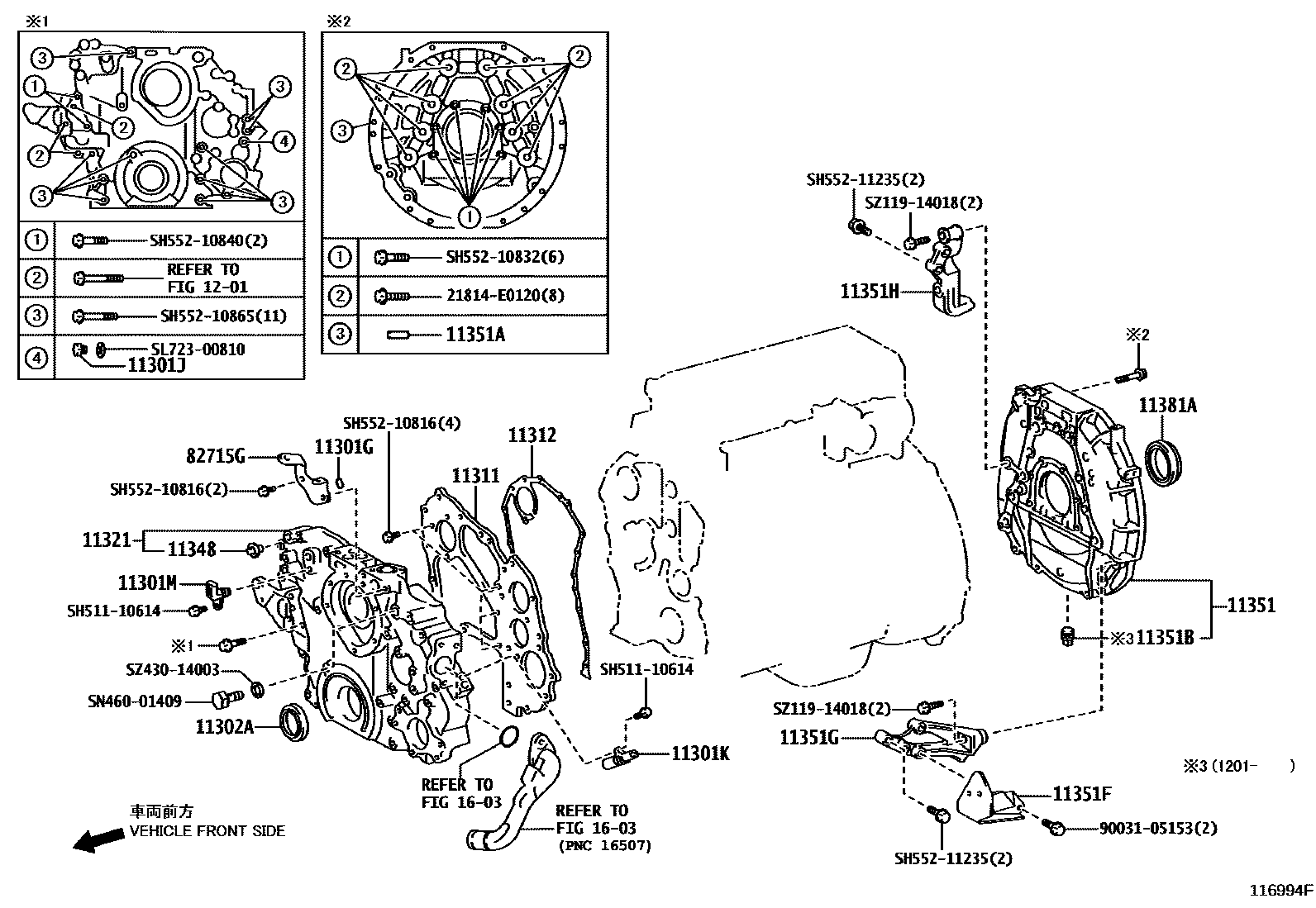

Toyota DYNA/TOYOACE HV — TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301GRING, O(FOR TIMING GEAR CASE, UPPER)

mainSN74100253iN04C..XKU700,710,720201107-201905

11301JPLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)

mainSN46000807iN04C..XKU700,710,720201107-201110

mainSZ34108001iN04C..XKU700,710,720201110-201905

11301KSENSOR, CRANK POSITION

main89411-E0040iN04C..XKU700,710,720201107-201905

main89411-E0050iN04C..XKU702,71#,72#..DCRWD201905

11301MSENSOR, CAM POSITION

mainS894101570iN04C..XKU700,710,720201107-201905

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

mainSZ31358001iN04C..XKU700,710,720201107-201403

mainSZ31358002iN04C..XKU702,71#,72#..6F201404-201905

11311PLATE, FRONT END

main11301-E0101iN04C..XKU702,71#,72#..6F201902-201905

mainS114051090iN04C..XKU700,710,720..5F201107-201902

sub11301-E0110

11312GASKET, FRONT END PLATE

mainS113121170iN04C..XKU702,71#,72#..DCWDO201107-201905

11321CASE, TIMING GEAR

main11310-78101iN04C..XKU702,71#,72#..DCRWD201905-201907

sub11310-78110

main11310-78110iN04C..XKU702,71#,72#..DCWDO201908-202408

sub11310-78111

main11310-78111iN04C..XKU702,71#,72#..DCWDO202409

main11310-E0141iN04C..XKU700,710,720201107-201208

sub11310-E0150

main11310-E0150iN04C..XKU700,710,720201208-201312

sub11310-E0151

main11310-E0151iN04C..XKU702,71#,72#..6F201312-201905

sub11310-E0152

11348SPACER, TIMING GEAR COVER

main21557-E0680iN04C..XKU700,710,720..5F201107-202104

11351HOUSING, FLYWHEEL

main11308-78400iN04C..XKU702,71#,72#..DCWDO201905

main11308-E0750iN04C..XKU700,710,720..5F201201-201905

main11351-E0J00iN04C..XKU700,710,720201107-201201

sub11308-E0750

11351APIN, STRAIGHT(FOR FLYWHEEL HOUSING)

mainSM21200824iN04C..XKU700,710,720201107-201905

11351BPLUG, HOLE(FOR FLYWHEEL HOUSING)

mainSN49101708iN04C..XKU700,710,720201201-201905

11351FPLATE, STIFFENER, LH(FOR FLYWHEEL HOUSING)

main33119-37070iN04C..XKU700,710,720201107-201304

sub33119-37100

main33119-37100iN04C..XKU702,71#,72#..DCRWD201305-201905

11351GSTAY, LH(FOR FLYWHEEL HOUSING)

main11353-78080iN04C..XKU702,71#,72#..DCWDO202310

main11353-E0060iN04C..XKU700,710,720201107-202310

sub11353-78080

11351HSTAY, RH(FOR FLYWHEEL HOUSING)

main11353-E0160iN04C..XKU700,710,720201107-201905

mainS113562030iN04C..XKU702,71#,72#..DCWDO201905

11381ASEAL, ENGINE REAR OIL

mainSZ31100002iN04C..XKU700,710,720..5F201107-201906

subSZ311-00004

mainSZ31100004iN04C..XKU702,71#,72#..DCWDO201907

1201

1603

82715GBRACKET, WIRING HARNESS CLAMP

main82715-3VL60iXKU700,710,720201612-201905

main82715-E0X90iXKU700,710,720201107-201611

sub82715-3VL60

21814E0120BOLT, FUEL INLET

main21814-E0120

9003105153

main90031-05153

SH51110614

mainSH511-10614

SH55210816

mainSH552-10816

SH55210832

mainSH552-10832

SH55210840

mainSH552-10840

SH55210865

mainSH552-10865

SH55211235

mainSH552-11235

SL72300810

mainSL723-00810

SN46001409

mainSN460-01409

SZ11914018

mainSZ119-14018

SZ43014003WASHER, SOFT, NO.1

mainSZ430-14003

31 parts on this diagram · 2 diagrams in section
