Toyota DYNA/TOYOACE HV — SWITCH & RELAY & COMPUTER

0001 1����� 0002 1����� 0003 1��������� 0004 1��������� 0005 1���������������� 1/2 0006 1���������������� 0007 1���������������� 2/2 0008 1��� 0009 1��� 1/2 0010 1��� 2/2 0011 1������������ 0012 1������������ 0013 1������� 0014 1������� 0015 1���,���,��� & ��������� 0016 1���,���,��� & ��������� 0017 1������� 0018 1�������

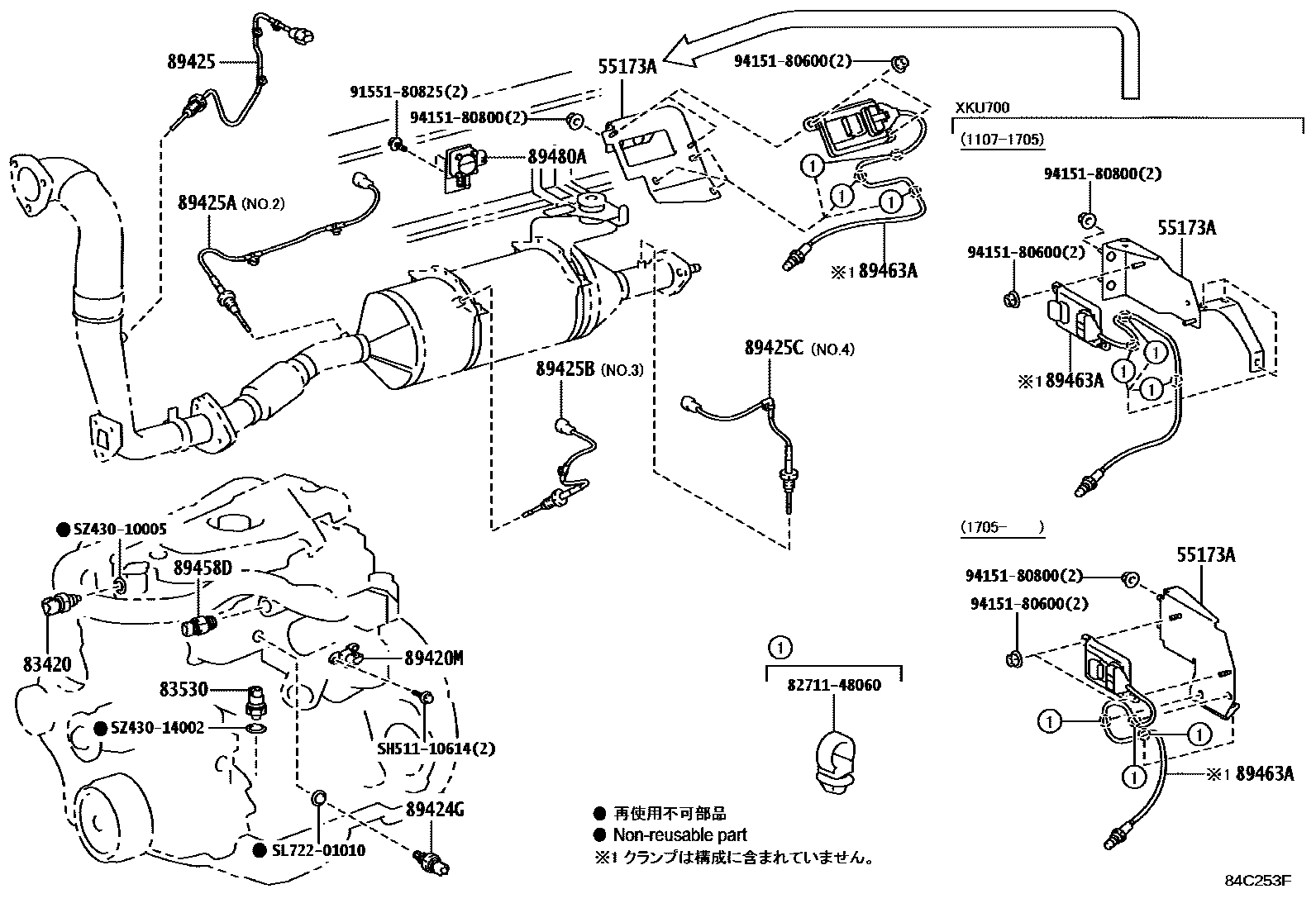

55173ABRACKET

main55173-37110iXKU710,720..5F201107-201905

main55173-37120iXKU700201107-201705

main55173-37800iXKU700201705-201905

83420GAGE ASSY, WATER TEMPERATURE SENDER

mainS834201250iXKU702,71#,72#..DCRWD201107-201905

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-E0220iXKU700,710,720201107-201908

sub83530-E0250

main83530-E0250iXKU702,71#,72#..DCWDO201909

89420MSENSOR ASSY, AIR PRESSURE

main89421-E0050iXKU700,710,720..5F201107-201905

89424GSENSOR, INLET AIR TEMPERATURE

main89424-37020iXKU700,710,720201107-201905

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-37300iXKU700,710,720201107-201905

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-37080iXKU700,710,720201107-201905

main89425-37350iXKU702,71#,72#..DCRWD201905

89425BSENSOR, EXHAUST GAS TEMPERATURE, NO.3

main89425-37190iXKU700,710,720201107-201905

sub89425-E0270

89425CSENSOR, EXHAUST GAS TEMPERATURE, NO.4

main89425-37230iXKU700,710,720201107-201905

main89425-37360iXKU702,71#,72#..DCWDO202103

89458DSENSOR, FUEL PRESSURE

main89458-E0030iXKU700,710,720201107-201905

main89458-E0050iXKU702,71#,72#..DCRWD201905

89463ASENSOR, NITROGEN OXIDES

main89463-37021iXKU700,710,720201107-201303

sub89463-37022

main89463-37022iXKU700,710,720201304-201905

main89463-E0610iXKU702,71#,72#..DCRWD201905-201912

sub89463-E0611

main89463-E0611iXKU702,71#,72#..DCWDO202001

89480ASENSOR ASSY, DIFFERENTIAL PRESSURE

main89480-37040iXKU700,710,720201107-201905

8271148060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48060

9155180825

main91551-80825

9415180600

main94151-80600

9415180800

main94151-80800

SH51110614

mainSH511-10614

SL72201010

mainSL722-01010

SZ43010005WASHER, SOFT, NO.1

mainSZ430-10005

SZ43014002WASHER, SOFT, NO.1

mainSZ430-14002

20 parts on this diagram · 18 diagrams in section
