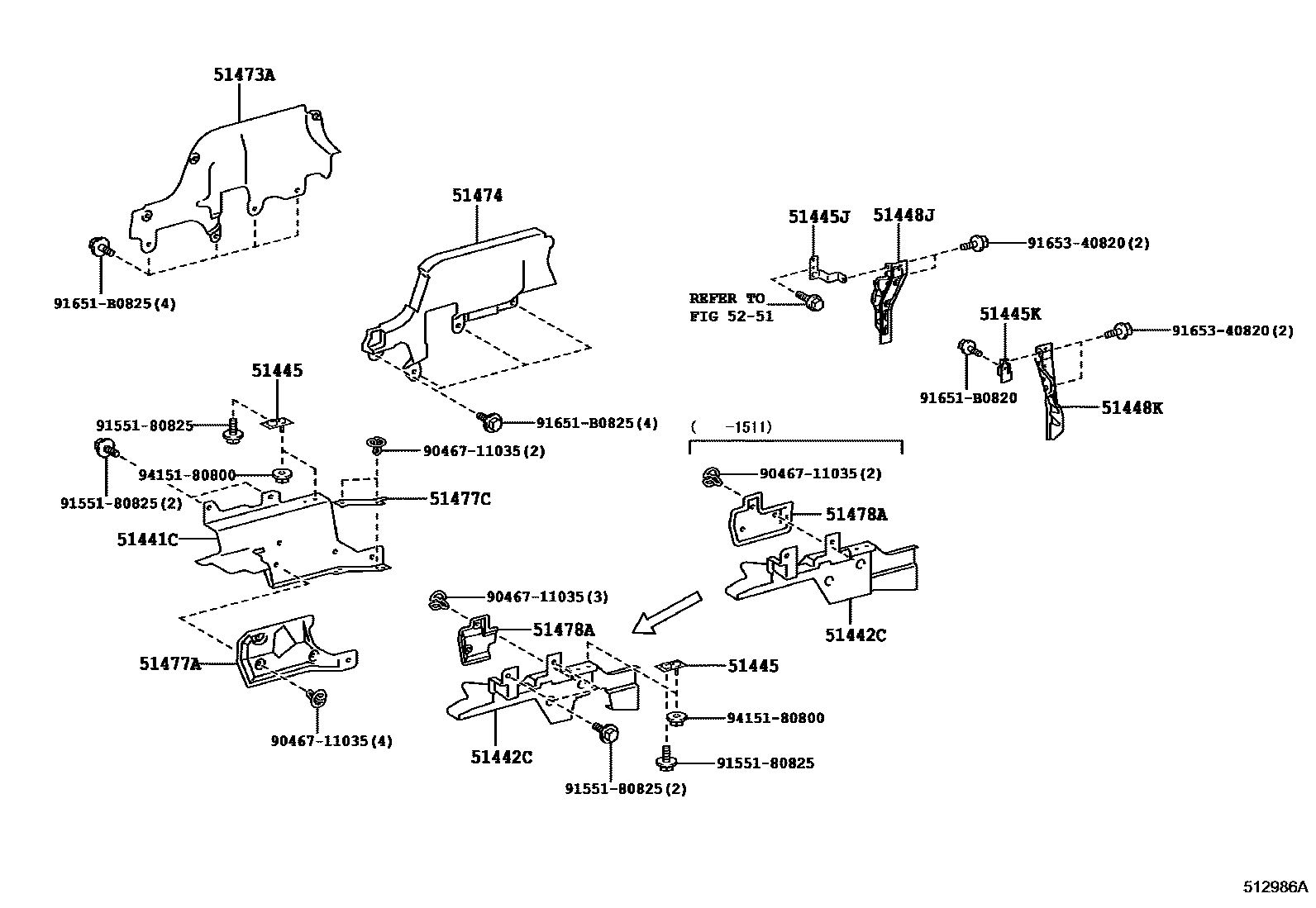

Toyota DYNA/TOYOACE HV — SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0004 1��(��������)

51441CCOVER, ENGINE UNDER, RH

main51441-37790iXKU700,710,720201107-201905

51442CCOVER, ENGINE UNDER, LH

main51441-37B30iXKU700,710,720201107-201511

main51442-37080iXKU700,710,720201511-201905

51445BRACKET, ENGINE UNDER COVER

main51445-37130iXKU700,710,720201107-201905

51445JBRACKET, ENGINE REAR COVER, RH

main51445-37C40iXKU700,710,720201107-201905

51445KBRACKET, ENGINE REAR COVER, LH

main51445-37C50iXKU700,710,720201107-201905

51448JSHUTTER, ENGINE REAR SIDE, RH

main51448-37170iXKU700,710,720201107-201905

51448KSHUTTER, ENGINE REAR SIDE, LH

main51448-37180iXKU700,710,720201107-201905

51473ACOVER SUB-ASSY, ENGINE SIDE, RH

main51473-37290iXKU700,710,720201107-201905

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51474-37250iXKU700,710,720201107-201511

sub51474-37251

main51474-37251iXKU700,710,720201512-201905

51477ASILENCER, ENGINE UNDER COVER, RH

main51477-37040iXKU700,710,720201107-202309

main51477-37041iXKU702,71#,72#..DCWDO202310

51477CSILENCER, ENGINE UNDER COVER, LOWER RH

main51477-37050iXKU700,710,720201107-202309

main51477-37051iXKU702,71#,72#..DCWDO202310

51478ASILENCER, ENGINE UNDER COVER, LH

main51478-37190iXKU700,710,720201107-201511

main51478-37210iXKU700,710,720201511-202309

main51478-37211iXKU702,71#,72#..DCWDO202310

5251

9046711035

main90467-11035

9155180825

main91551-80825

91651B0820

main91651-B0820

91651B0825

main91651-B0825

9165340820

main91653-40820

9415180800

main94151-80800

19 parts on this diagram · 3 diagrams in section
