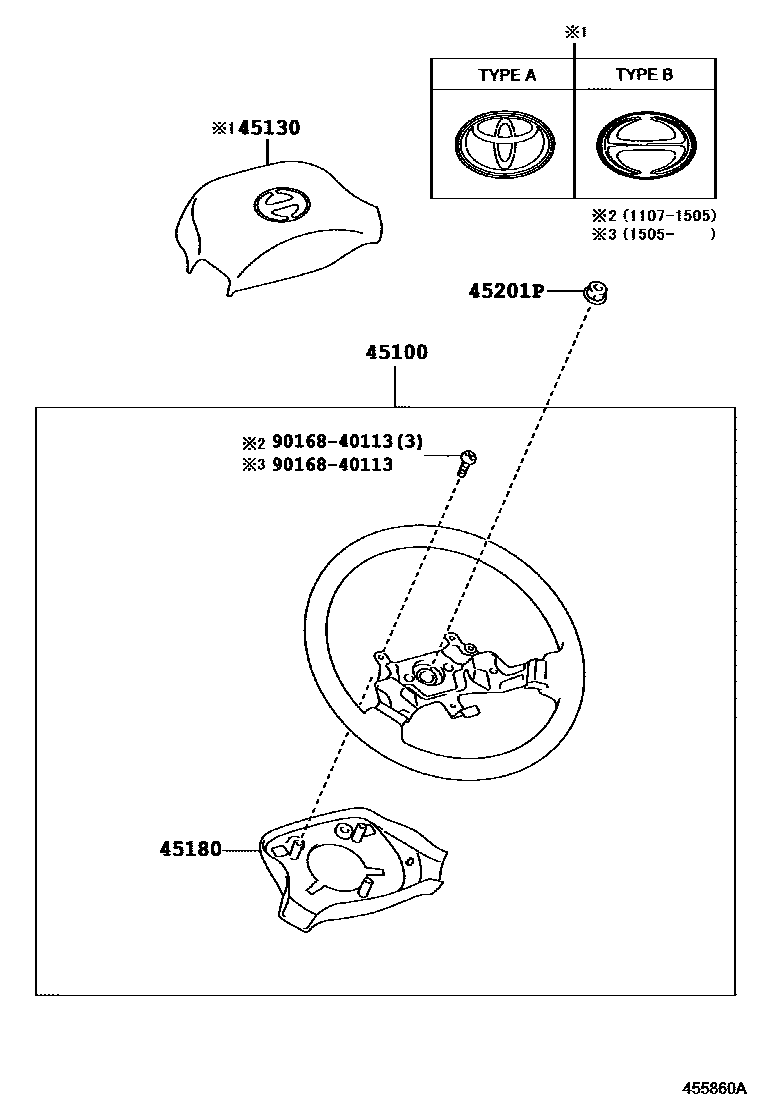

Toyota DYNA/TOYOACE HV — STEERING WHEEL

0001 12������� 0002 12�������

45100WHEEL ASSY, STEERING

main45100-37060-C0iXKU700,710,720201107-201505

main45100-37090-C0iXKU700,710,720201505-201905

main45100-37120-C0iXKU702,71#,72#..DCRWD201905

45130BUTTON ASSY, HORN

main45130-37100-C0iXKU700,710,720201107-201304

sub45130-37101

main45130-37101-C0iXKU700,710,720201305-201505

main45130-37170-C0iXKU700,710,720201505-201905

main45130-37230-C0iXKU702,71#,72#..DCRWD201905

45180COVER SUB-ASSY, STEERING WHEEL

main45180-37020-C0iXKU700,710,720201107-201505

BLACK,TRIM1#

main45180-37050-C0iXKU700,710,720201505-201905

BLACK,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12071iXKU700,710,720201107-201905

9016840113

main90168-40113

5 parts on this diagram · 2 diagrams in section
