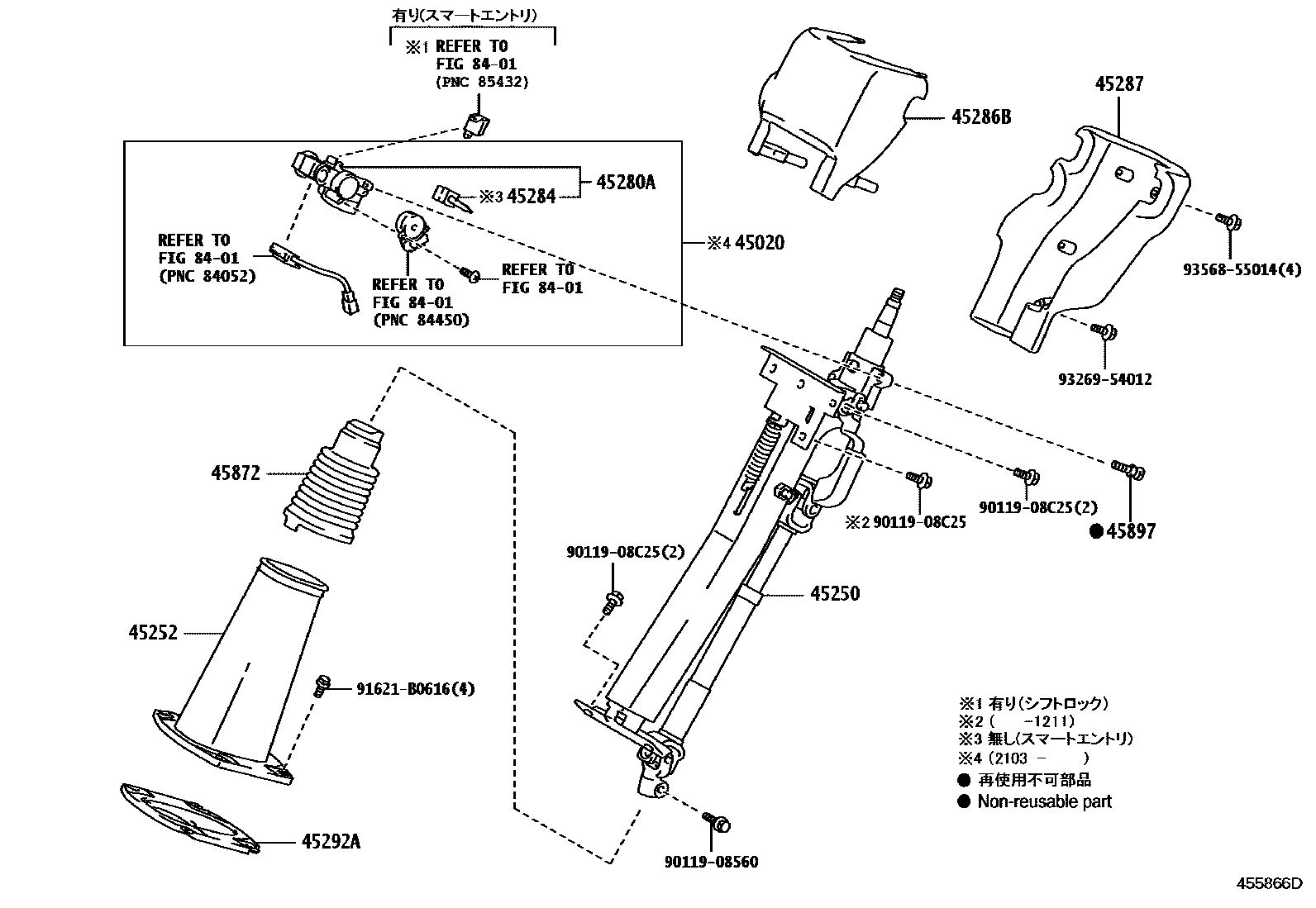

Toyota DYNA/TOYOACE HV — STEERING COLUMN & SHAFT

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-37200iXKU702,71#,72#..DCWDO202103

45250COLUMN ASSY, STEERING

main45250-37E60-C0iXKU700,710,720201107-201210

BLACK,TRIM1#

sub45250-37E61

main45250-37E61-C0iXKU700,710,720201211-201405

BLACK,TRIM1#

sub45250-37E62

main45250-37E62-C0iXKU700,710,720201406-201905

BLACK,TRIM1#

45252TUBE, STEERING COLUMN, LOWER

main45252-37060-C0iXKU700,710,720201107-201905

BLACK,TRIM1#

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-37140iXKU700,710,720201107-201905

main45280-37150iXKU702,71#,72#..DCRWD201905

45284SHAFT, STEERING LOCK CAM

main45284-37020iXKU700,710,720201107-201905

45286BCOVER, STEERING COLUMN, UPR

main45286-37130-C0iXKU700,710,720201107-201905

BLACK,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-37120-C0iXKU700,710,720201107-201905

BLACK,TRIM1#

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-37080iXKU700,710,720201107-201905

45872COVER, STEERING COLUMN TUBE

main45872-37020iXKU700,710,720201107-201905

45897BOLT, STEERING LOCK SET

main45897-E0020iXKU700,710,720201107-201905

8401

9011908560

main90119-08560

9011908C25

main90119-08C25

91621B0616

main91621-B0616

9326954012

main93269-54012

9356855014

main93568-55014

16 parts on this diagram · 1 diagram in section
