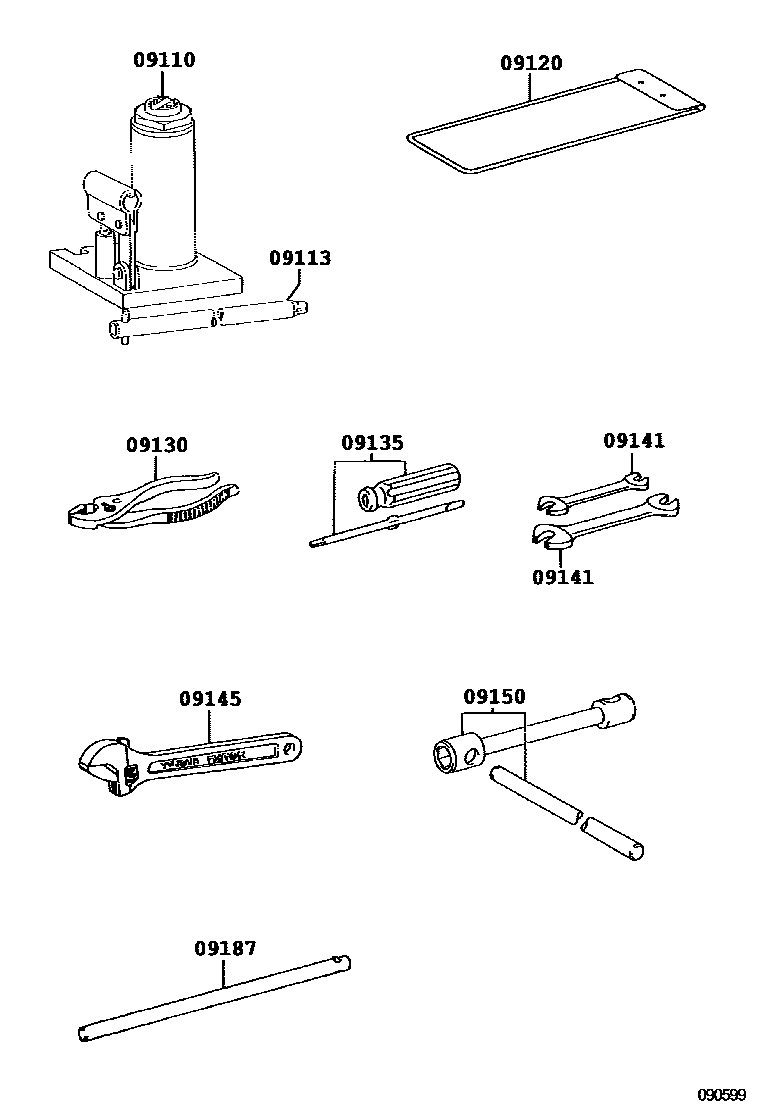

Toyota DYNA/TOYOACE HV — STANDARD TOOL

09110JACK ASSY

main09111-37282iXKU700,710,720201107-201211

sub09111-37283

main09111-37283iXKU702,71#,72#..DCRWD201212-201905

09113HANDLE, JACK

main09113-0W070iXKU700;XKU710..CBU201107-201905

main09113-0W090iXKU71#,72#..DCWDO..IV3201107-201905

09120BAG, TOOL

main09120-37031iXKU700,710,720201107-201905

09130PLIERS

main99913-11500

09135DRIVER, SCREW

main99915-10700

09141SPANNER

main99914-11214

main99914-10810

09145WRENCH, MONKEY

main99911-11200

09150WRENCH, HUB NUT BOX

main09150-37030iXKU700,710,720201107-201905

09187HANDLE, SPARE WHEEL CARRIER

main09187-37010iXKU700,710,720201107-201905

9 parts on this diagram · 1 diagram in section
