Toyota DYNA/TOYOACE HV — SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

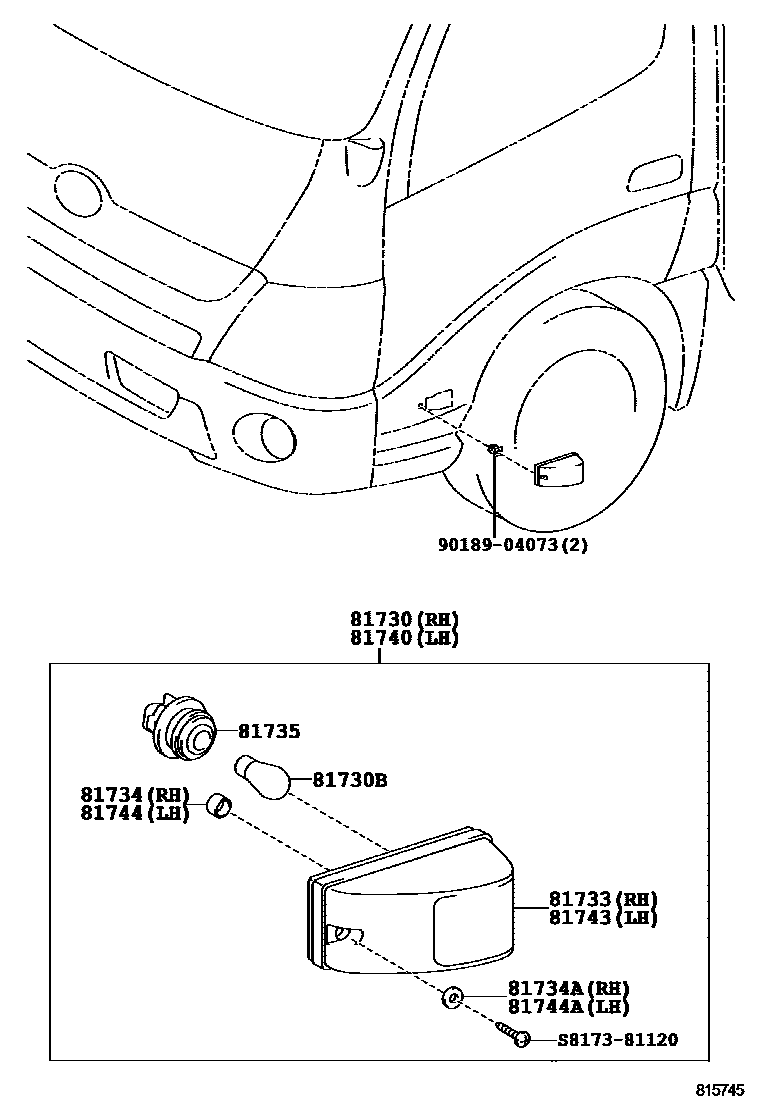

Parts diagram

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-E0081i201107-201905

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-16014i201107-201905

81733BODY, SIDE TURN SIGNAL LAMP, RH

mainS816731061i201107-201905

81734GASKET, SIDE TURN SIGNAL LAMP BODY, RH

mainS900755107i201107-201905

81734APROTECTOR, SIDE TURN SIGNAL LAMP, RH

mainS900752103i201107-201905

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

mainS817011060i201107-201905

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-E0081i201107-201905

81743BODY, SIDE TURN SIGNAL LAMP, LH

mainS816731061i201107-201905

81744GASKET, SIDE TURN SIGNAL LAMP BODY, LH

mainS900755107i201107-201905

81744APROTECTOR, SIDE TURN SIGNAL LAMP, LH

mainS900752103i201107-201905

9018904073

main90189-04073

S817381120

mainS8173-81120

12 parts on this diagram · 1 diagram in section
