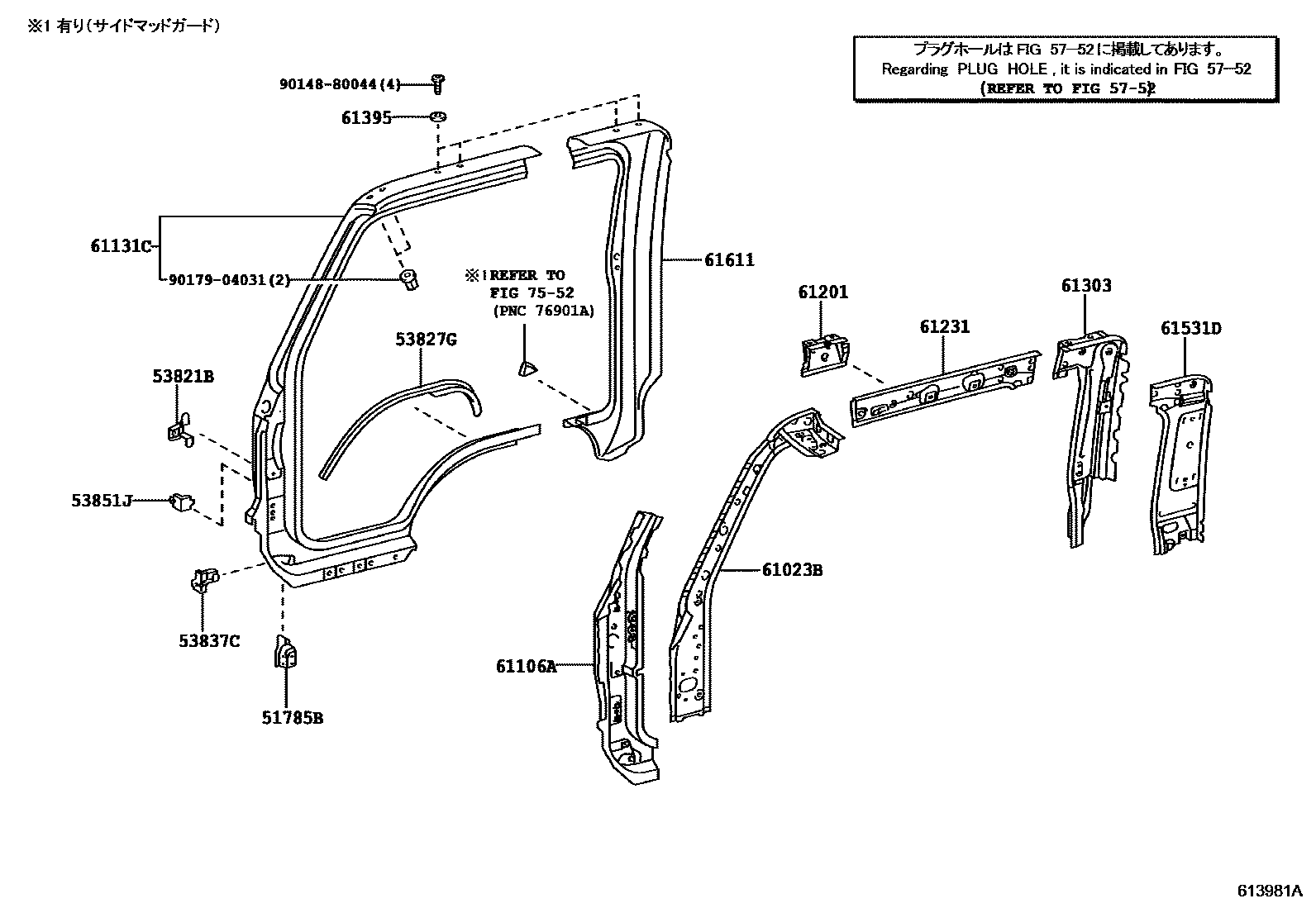

Toyota DYNA/TOYOACE HV — SIDE MEMBER

0001 1RH 0002 1LH

51785BBRACKET, FRONT STEP PANEL, RH

main51785-37040iXKU700,710,720201107-201308

sub51785-37050

main51785-37050iXKU700,710,720201309-201905

53821BBRACKET, FRONT FENDER, REAR RH

main53821-37110iXKU700,710,720201107-201905

53827GPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-37030iXKU700,710,720201107-201905

53837CBRACKET, FRONT SIDE PANEL, NO.2 RH

main53837-37040iXKU700,710,720201107-201905

53851JSTAY, FENDER, RH

main53851-37060iXKU700,710,720201107-201905

5752

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-37130iXKU700,710,720201107-201905

61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH

main61106-37010iXKU700,710,720201107-201408

sub61106-37011

main61106-37011iXKU700,710,720201409-201905

61131CPILLAR, FRONT BODY, OUTER RH

main61131-37140iXKU700,710,720201107-201905

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-37030iXKU700,710,720201107-201905

61231RAIL, ROOF SIDE, INNER RH

main61231-37140iXKU700,710,720201107-201905

61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH

main61303-37020iXKU700,710,720201107-201703

sub61303-37021

main61303-37021iXKU700,710,720201704-201905

61395SEAL, CENTER BODY PILLAR, RH

main61395-37010iXKU700,710,720201107-201905

61531DPANEL, CAB REAR PILLAR, INNER RH

main61531-37060iXKU700,710,720201107-201703

sub61531-37061

main61531-37061iXKU700,710,720201704-201905

61611PANEL, QUARTER, RH

main61611-37420iXKU700,710,720201107-201905

7552

9014880044

main90148-80044

9017904031

main90179-04031

18 parts on this diagram · 2 diagrams in section
