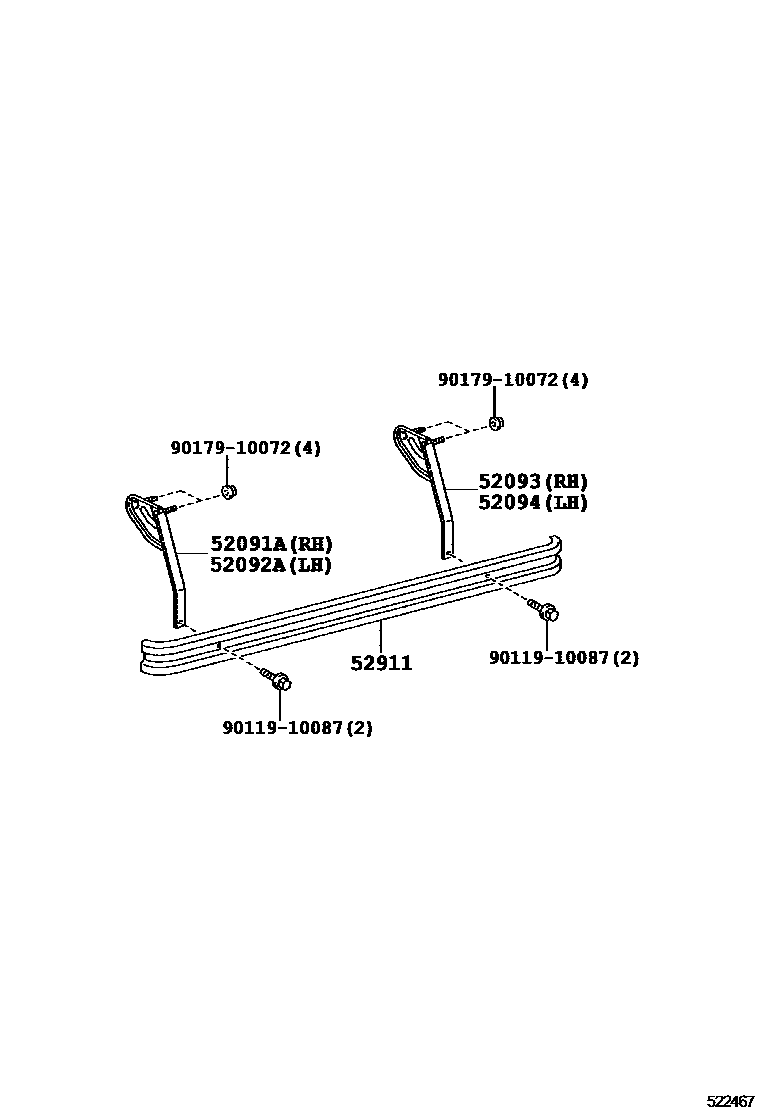

Toyota DYNA/TOYOACE HV — SIDE BUMPER & BUMPER STAY

0001 1 0002 1

52091ASTAY SUB-ASSY, SIDE BUMPER, FRONT RH

main52091-37A40iXKU710..T4..5F..CBU201107-201905

main52091-37A50iXKU710..(T3,T5)..CBU201107-201905

main52091-37B40iXKU71#..T4..DCRWD..CBU201905

main52091-37B50iXKU71#..(T3,T5)..DCWDO..CBU201905

52092ASTAY SUB-ASSY, SIDE BUMPER, FRONT LH

main52092-37870iXKU710..T4..5F..CBU201107-201905

main52092-37880iXKU710..(T3,T5)..CBU201107-201905

main52092-37A50iXKU71#..T4..DCWDO..CBU201905

main52092-37A60iXKU71#..(T3,T5)..DCWDO..CBU201905

52093STAY SUB-ASSY, SIDE BUMPER, REAR RH

main52093-37190iXKU710..T4..CBU201107-201905

main52093-37200iXKU71#..(T3,T5)..6F..CBU201107-201905

52094STAY SUB-ASSY, SIDE BUMPER, REAR LH

main52092-37870iXKU710..T4..CBU201107-201905

main52092-37880iXKU710..(T3,T5)..CBU201107-201905

52911BAR, SIDE BUMPER

main52901-37250iXKU710..(20T,30T,35T)..CBU201107-201905

main52901-37260iXKU710..40T..CBU201107-201905

9011910087

main90119-10087

9017910072

main90179-10072

7 parts on this diagram · 2 diagrams in section
