Toyota DYNA/TOYOACE HV — SHORT BLOCK ASSEMBLY

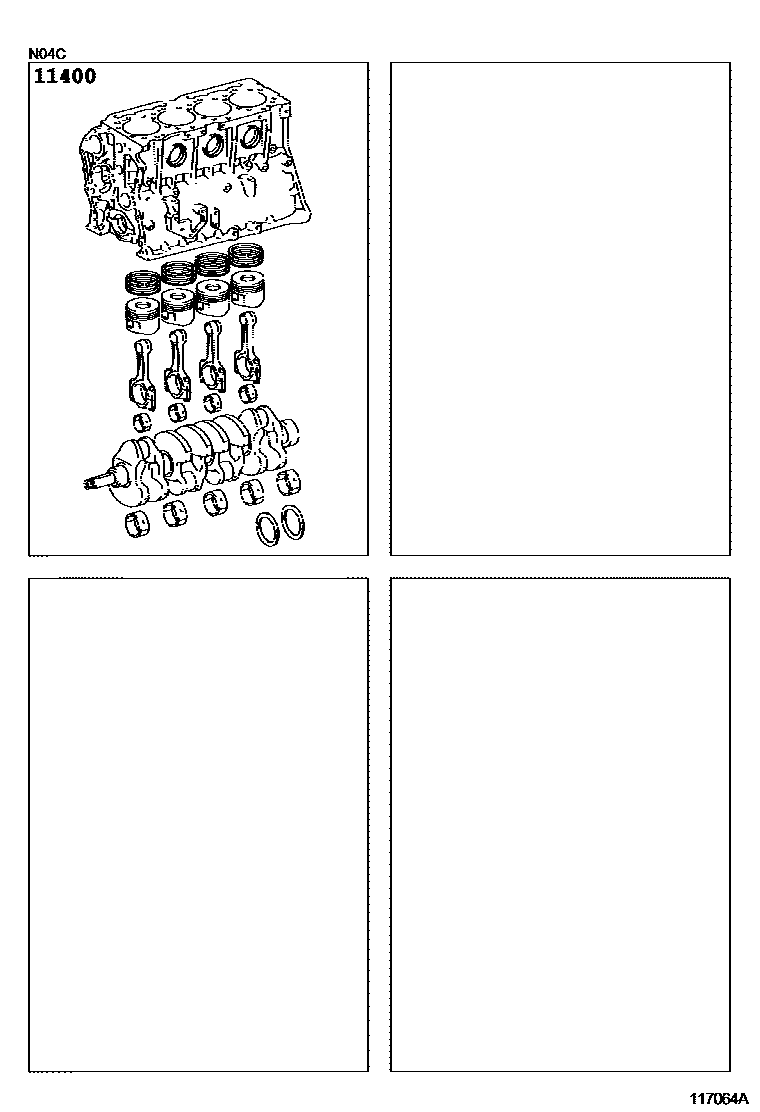

11400BLOCK ASSY, SHORT

main11400-78600iN04C..XKU700,710,720201107-201201

sub11400-78601

main11400-78601iN04C..XKU700,710,720201201-201202

sub11400-78602

main11400-78602iN04C..XKU700,710,720201202-201209

sub11400-78603

main11400-78603iN04C..XKU700,710,720201209-201406

sub11400-78604

main11400-78604iN04C..XKU700,710,720201406-201508

sub11400-78605

main11400-78605iN04C..XKU700,710,720201508-201704

sub11400-78606

main11400-78606iN04C..XKU700,710,720201704-201712

sub11400-78607

main11400-78607iN04C..XKU700,710,720..5F201712-201901

sub11400-78608

main11400-78608iN04C..XKU702,71#,72#..6F201901-201902

sub11400-78609

main11400-78609iN04C..XKU702,71#,72#..6F201902-201905

sub11400-78C60

main11400-78B50iN04C..XKU702,71#,72#..DCRWD201905-201906

sub11400-78B51

main11400-78B51iN04C..XKU702,71#,72#..DCRWD201906-202310

sub11400-7C100

main11400-7C100iN04C..XKU702,71#,72#..DCWDO202310

1 parts on this diagram · 1 diagram in section
