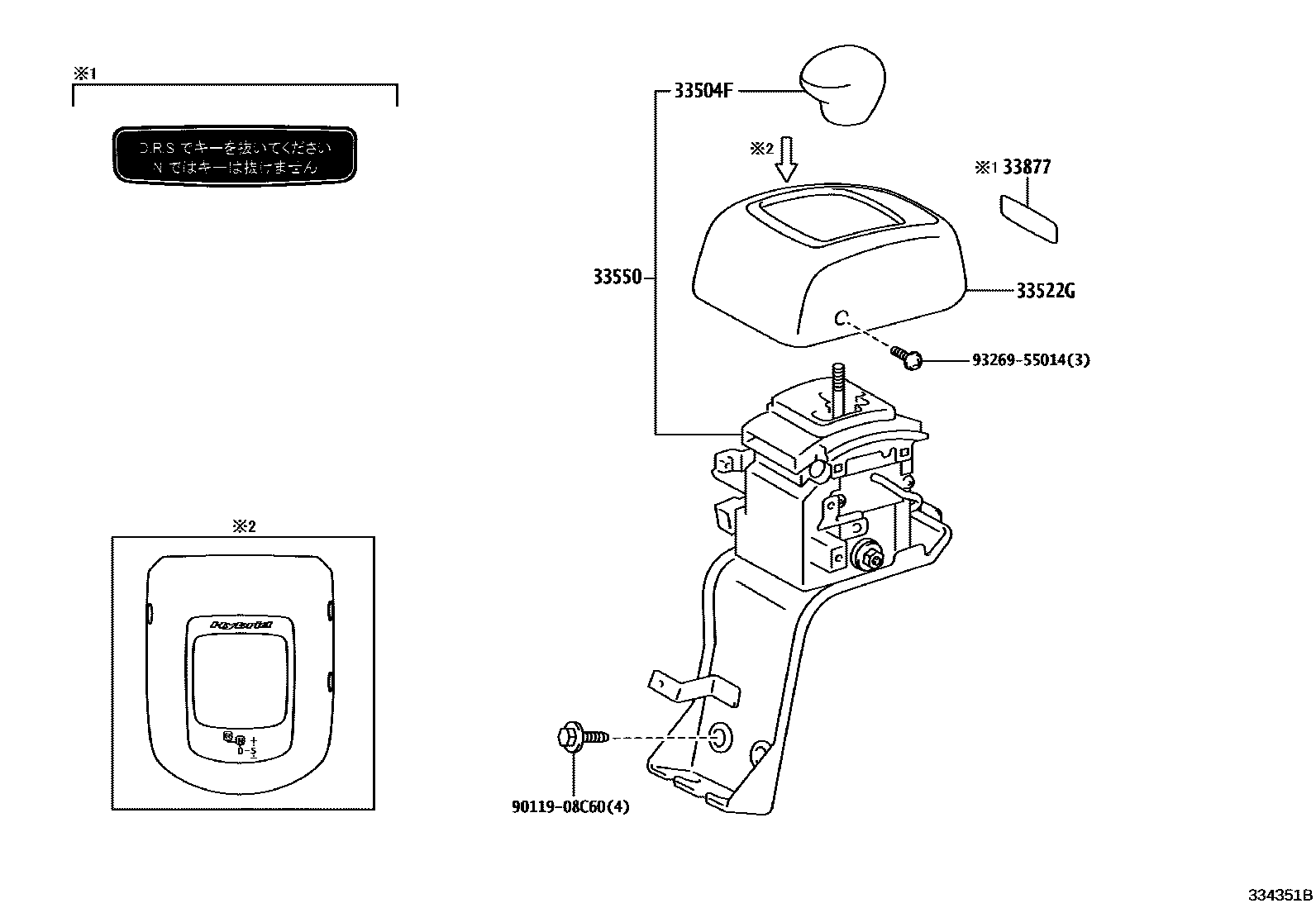

Toyota DYNA/TOYOACE HV — SHIFT LEVER & RETAINER

0001 1 0003 1������������-������ 0006 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-37110iXKU700,710,720201107-201905

main33504-37120-C0iXKU702,71#,72#..DCRWD201905

BLACK,TRIM1#

33522GCOVER, SHIFT LEVER HOUSING DUST

main33522-37040iXKU700,710,720201107-201905

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-37240-C0iXKU702,71#,72#..DCRWD201905-202108

BLACK,TRIM1#

sub33550-37241

main33550-37241-C0iXKU702,71#,72#..DCWDO202108

BLACK,TRIM1#

main33550-37440iXKU700,710,720201107-201205

sub33550-37441

main33550-37441-C0iXKU700,710,720201206-201709

BLACK,TRIM1#

sub33550-37442

main33550-37442-C0iXKU700,710,720..5F201710-201905

BLACK,TRIM1#

33877LABEL, SHIFT LOCK INFORMATION, NO.1

main33877-37010

main33877-37011

9011908C60

main90119-08C60

9326955014

main93269-55014

6 parts on this diagram · 3 diagrams in section
