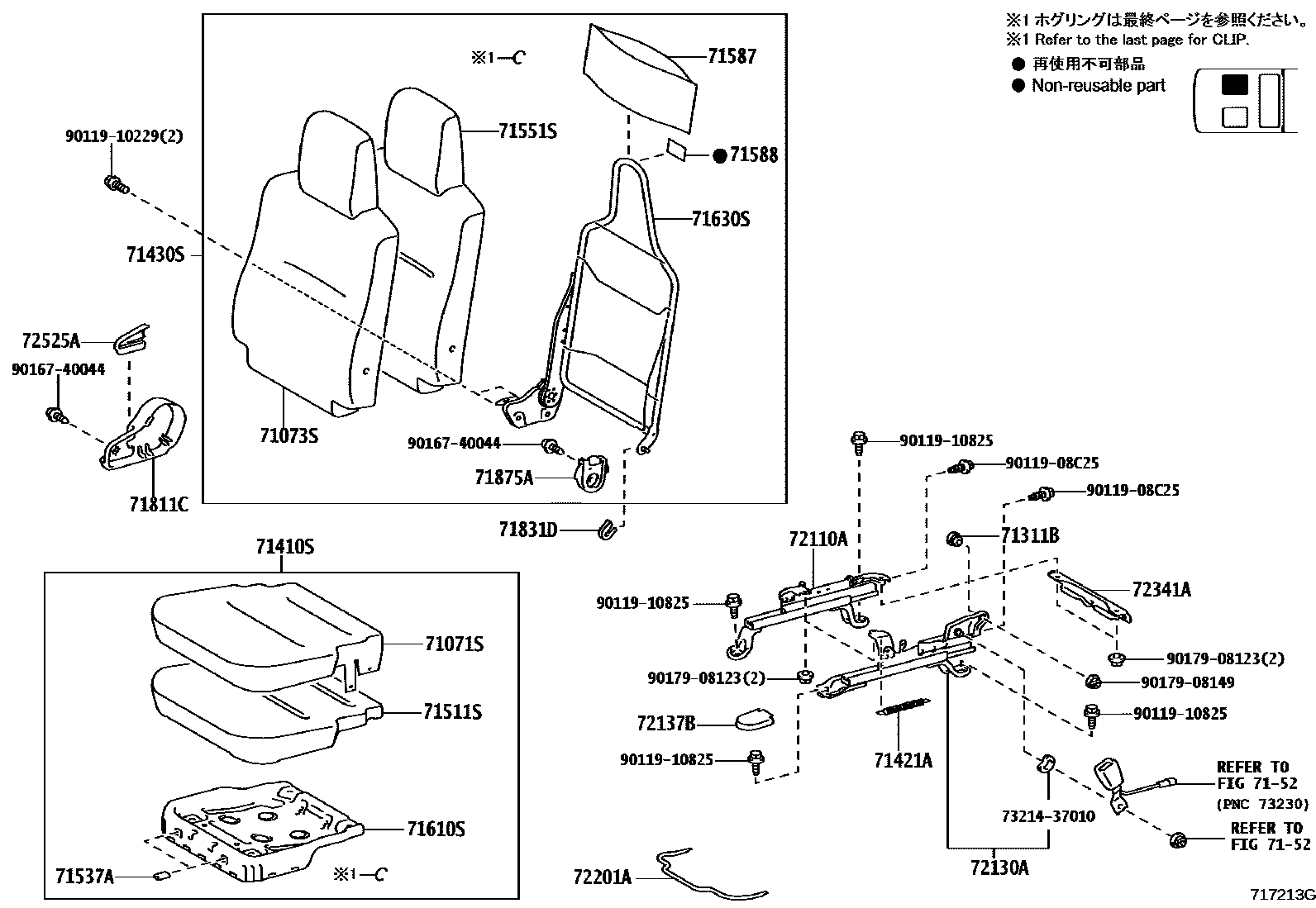

Toyota DYNA/TOYOACE HV — SEAT & SEAT TRACK
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
GRAY,TRIM1#
BLACK,TRIM1#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
GRAY,TRIM1#
BLACK,TRIM1#
71311BBUSH (FOR FRONT SEAT HINGE PIN)
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
***,GRAY,TRIM1#
***,BLACK,TRIM1#
71421ASPRING, FRONT SEAT CUSHION
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
***,GRAY,TRIM1#
***,BLACK,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
7152
71537APROTECTOR, FRONT SEAT CUSHION
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71588PROTECTOR, FRONT SEATBACK EDGE, NO.2
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71811CCOVER, RECLINING ADJUSTER, RH
GRAY,TRIM1#
71831DCOVER, FRONT SEAT HINGE, RH
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
72110ATRACK ASSY, FRONT SEAT, OUTER RH
72130ATRACK ASSY, FRONT SEAT, INNER RH
72137BCOVER, SEAT TRACK, RH
GRAY,TRIM1#
72201AHANDLE SUB-ASSY, SEAT TRACK RH
72341AREINFORCE, FRONT SEAT STAND FRAME
72525AHANDLE, RECLINING ADJUSTER RELEASE, RH
GRAY,TRIM1#
7321437010PLATE, FRONT SEAT BELT ANCHOR
main73214-37010
9011908C25
main90119-08C25
9011910229
main90119-10229
9011910825
main90119-10825
9016740044
main90167-40044
9017908123
main90179-08123
9017908149
main90179-08149
30 parts on this diagram · 5 diagrams in section
