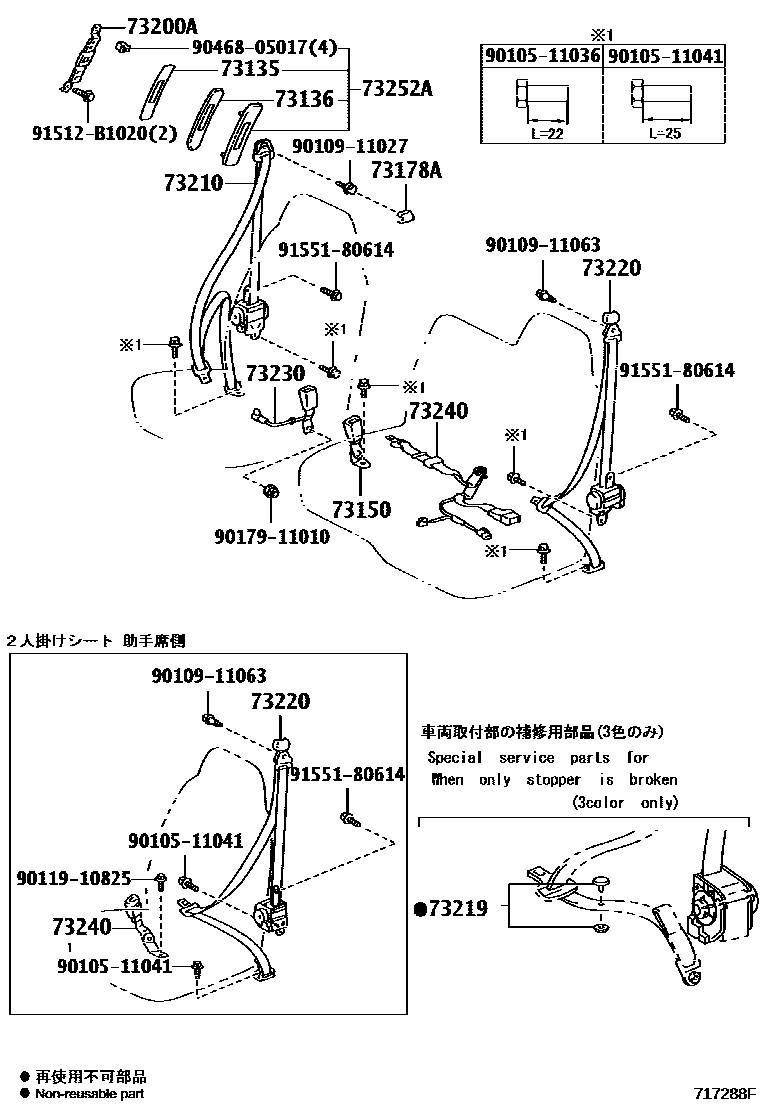

Toyota DYNA/TOYOACE HV — SEAT BELT

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-35020-B2iXKU700,710,720..5F201107-201905

GRAY,TRIM1#

73136COVER, SHOULDER BELT ANCHORAGE PLATE, INNER

main73135-35010-B2iXKU700,710,720201107-201905

GRAY,TRIM1#

73150BELT ASSY, FRONT SEAT LAP TYPE, CENTER

main73150-37080-B0iXKU700,710,720201107-201905

GRAY,TRIM1#

sub73203-37080

main73203-37080iXKU702,71#,72#..DCRWD201905

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33020-P2iXKU700,710,720201107-201905

GRAY,TRIM1#

sub73178-33020

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-34030iXKU700,710,720201107-201905

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-37360-B0iXKU700,710,720201107-201302

GRAY,TRIM1#

sub73210-37361

main73210-37361-B0iXKU702,71#,72#..DCRWD201303-201905

GRAY,TRIM1#

73219STOPPER, TONGUE PLATE

main73219-33010iXKU700,710,720201107-201905

73220BELT ASSY, FRONT SEAT OUTER, LH

main73203-37040iXKU702,71#,72#..DCRWD201905

main73210-37340-B0iXKU700,710,720201107-201305

GRAY,TRIM1#

sub73210-37341

main73210-37341-B0iXKU702,71#,72#..6F201306-201905

GRAY,TRIM1#

sub73203-37040

73230BELT ASSY, FRONT SEAT INNER, RH

main73203-37130iXKU702,71#,72#..DCRWD201905

main73230-37240-B0iXKU702,71#,72#..6F201107-201905

GRAY,TRIM1#

sub73203-37130

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-37250-B0iXKU700,710,720201107-201305

GRAY,TRIM1#

sub73230-37251

main73230-37251-B0iXKU700,710,720201306-201904

GRAY,TRIM1#

sub73230-37252

main73230-37252-B0iXKU702,71#,72#..DCRWD201905

GRAY,TRIM1#

73252ACOVER, SHOULDER BELT ANCHOR ADJUST

main73252-37021-B1iXKU700,710,720201107-201905

GRAY,TRIM1#

9010511036

main90105-11036

9010511041

main90105-11041

9010911027

main90109-11027

9010911063

main90109-11063

9011910825

main90119-10825

9017911010

main90179-11010

9046805017

main90468-05017

91512B1020

main91512-B1020

9155180614

main91551-80614

20 parts on this diagram · 1 diagram in section
