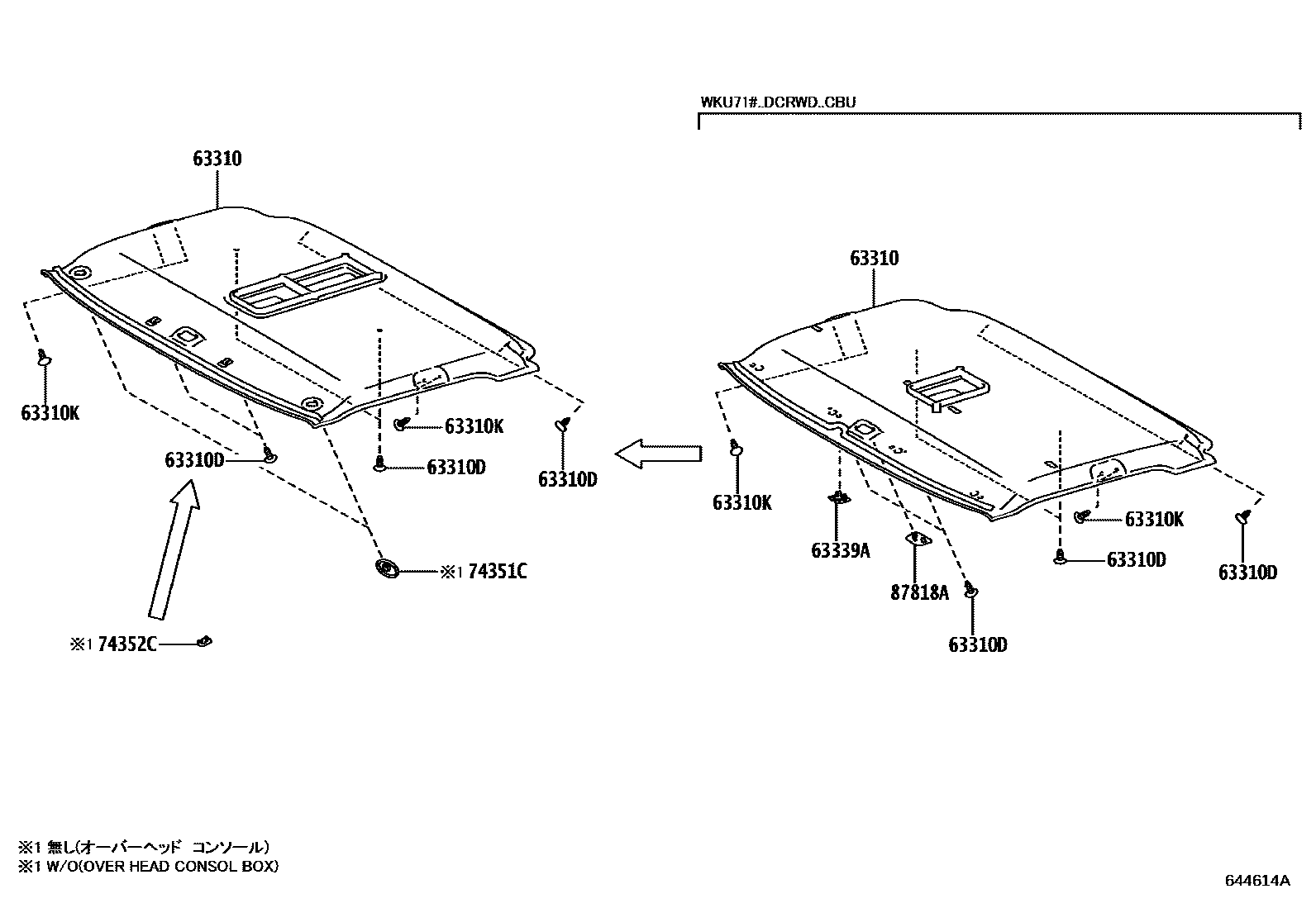

Toyota DYNA/TOYOACE HV — ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1��(��������� �����) 0004 1��(��������� �����)

63310HEADLINING ASSY, ROOF

main63310-37380-B0iXKU700,710,720201107-201705

GRAY,TRIM1#

main63310-37720-B0iXKU702,71#,72#..DCRWD..IV3201905-202310

main63310-37720-B0iXKU71#..DCRWD..CBU201705-202310

GRAY,TRIM1#

main63310-37C30-B0iXKU702,71#,72#..DCWDO..IV3201905

GRAY,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-06048-B9iXKU700,710,720..5F201107-201905

MD.CHARCOAL,TRIM1#

sub90467-06048

63310KCLIP

main90467-06048-B9iXKU702,71#,72#..6F201107-201905

sub90467-06048

main90467-06048-B9iXKU700,710,720201107-201905

MD.CHARCOAL,TRIM1#

sub90467-06048

63339ACOVER, ROOF HEADLINING SERVICE HOLE

main63339-37010iXKU71#..DCWDO..CBU201905

main63339-37010iXKU702,71#,72#..DCWDO..IV3202310

74351CCOVER, ROOF CONSOLE, NO.1

main74351-35010-B3iXKU700,710,720201107-201207

GRAY,TRIM1#

sub74351-37100

main74351-37100-B0iXKU702,71#,72#..6F201705-201905

main74351-37100-B0iXKU700,710,720201208-201905

GRAY,TRIM1#

main74351-37100-B0iXKU700,710,720..5F201705-201905

main74351-37100-B0iXKU700,710,720..5F201705-201905

main74351-37100-B0iXKU700,710,720..5F201705-201905

74352CCOVER, ROOF CONSOLE, NO.2

main74352-35010-B3iXKU700,710,720201107-201207

GRAY,TRIM1#

sub74352-37100

main74352-37100-B0iXKU700,710,720201208-201905

GRAY,TRIM1#

main74352-37100-B0iXKU700,710,720..5F201705-201905

main74352-37100-B0iXKU700,710,720..5F201705-201905

main74352-37100-B0iXKU700,710,720..5F201705-201905

main74352-37100-B0iXKU700,710,720..5F201705-201905

87818ACOVER, INNER REAR VIEW MIRROR HOLE

main87818-37010-B0iXKU71#..DCRWD..CBU201905

GRAY,TRIM1#

main87818-37010-B0iXKU702,71#,72#..DCWDO..IV3202310

7 parts on this diagram · 4 diagrams in section
