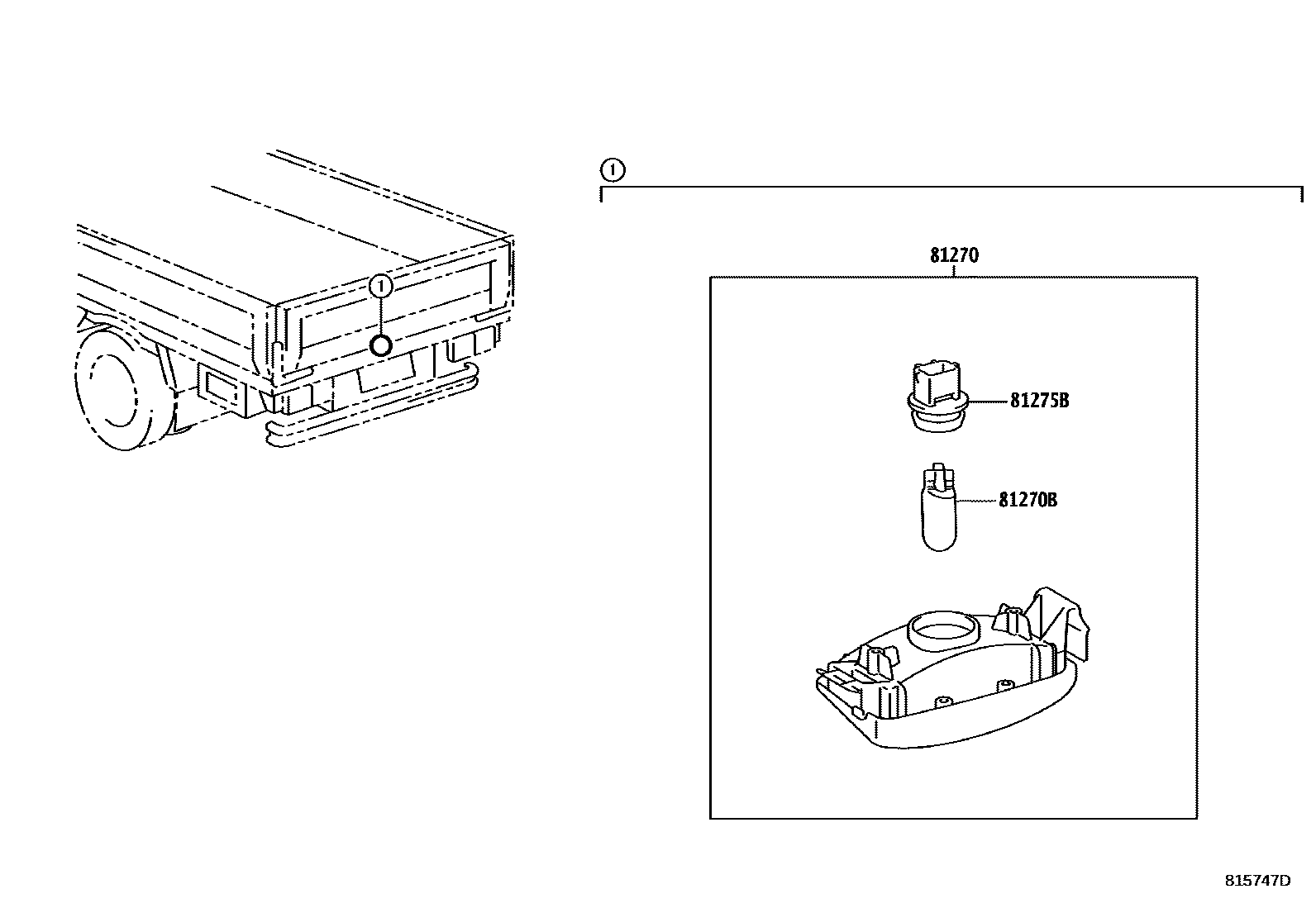

Toyota DYNA/TOYOACE HV — REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-37170iXKU700,710,720201107-201303

sub81270-37171

main81270-37171iXKU700,710,720201304-201905

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-16029iXKU700,710,720201107-201905

81275BSOCKET PLUG, LICENSE PLATE LAMP

main81278-37170iXKU700,710,720201107-201905

3 parts on this diagram · 1 diagram in section
