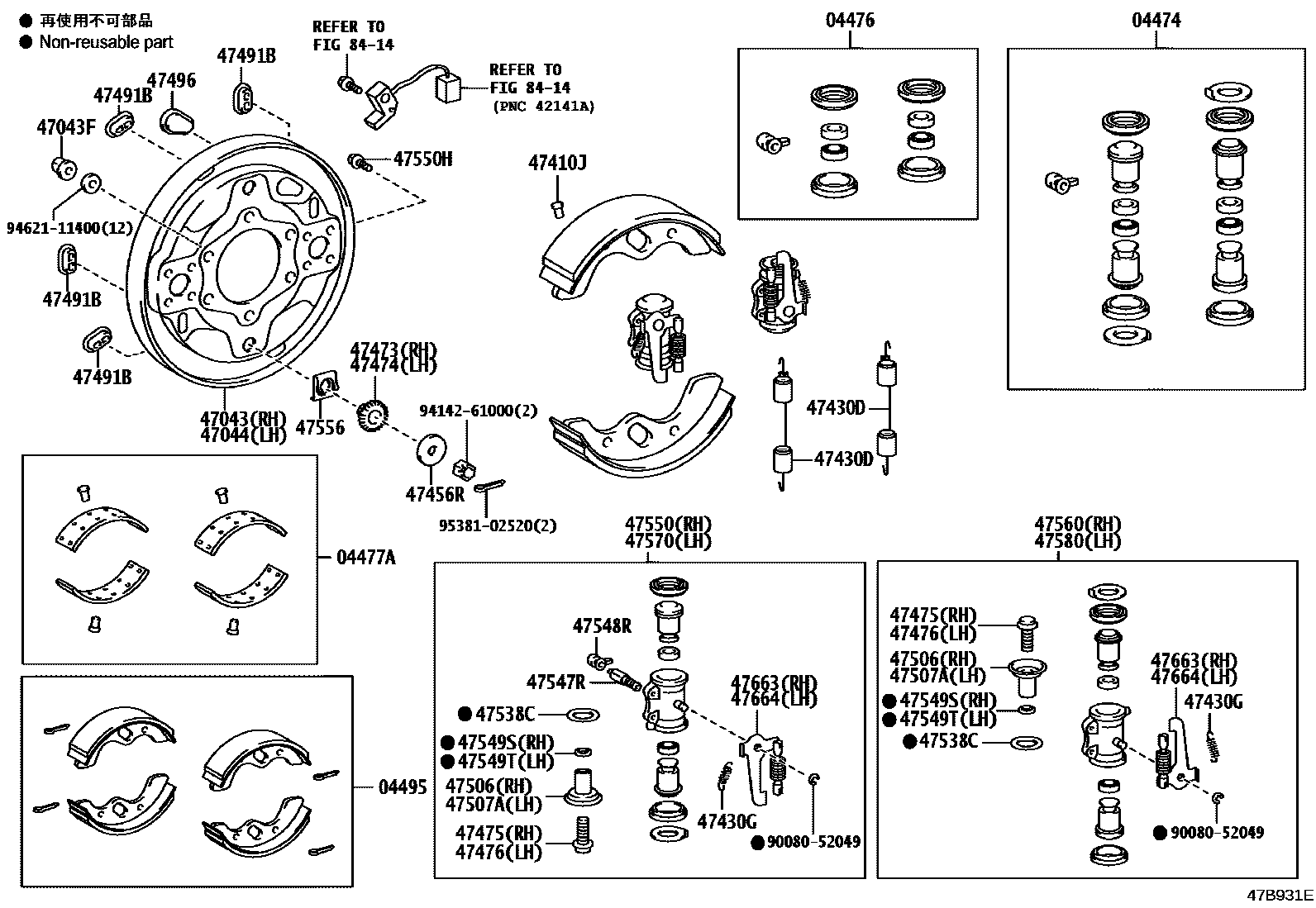

Toyota DYNA/TOYOACE HV — REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04476CUP KIT, REAR WHEEL CYLINDER
main04476-37100
04477ALINING KIT, BRAKE
04495SHOE KIT, REAR BRAKE
main04495-37230
47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
main47422-37030
47410JRIVET, BRAKE LINING(FOR REAR BRAKE)
47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)
47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)
47456RPLATE, REAR BRAKE SHOE GUIDE
47473NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE)
main47473-37020
47474NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
main47473-37020
47475BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE)
main47553-37110
47476BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE)
main47554-37110
47491BPLUG, HOLE(FOR REAR BRAKE)
47496PLUG, HOLE(FOR REAR BRAKE)
main47496-37020
47506NUT SUB-ASSY, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
main47506-37110
47507ANUT SUB-ASSY, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
47538CPLATE, WHEEL CYLINDER ADJUSTER SPRING, RR
47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)
47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)
47549SSEAT, REAR BRAKE AUTOMATIC ADJUST NUT, RH
47549TSEAT, REAR BRAKE AUTOMATIC ADJUST NUT, LH
47550HBOLT(FOR REAR WHEEL CYLINDER)
47556SPRING, ADJUSTER LOCK(FOR REAR BRAKE)
main47556-37010
47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)
main47560-37200
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
main47570-37220
47580CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER)
main47580-37220
47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)
main47545-37110
47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)
main47546-37110
8414
9008052049
main90080-52049
9414261000
main94142-61000
9462111400
main94621-11400
9538102520
main95381-02520
37 parts on this diagram · 1 diagram in section
