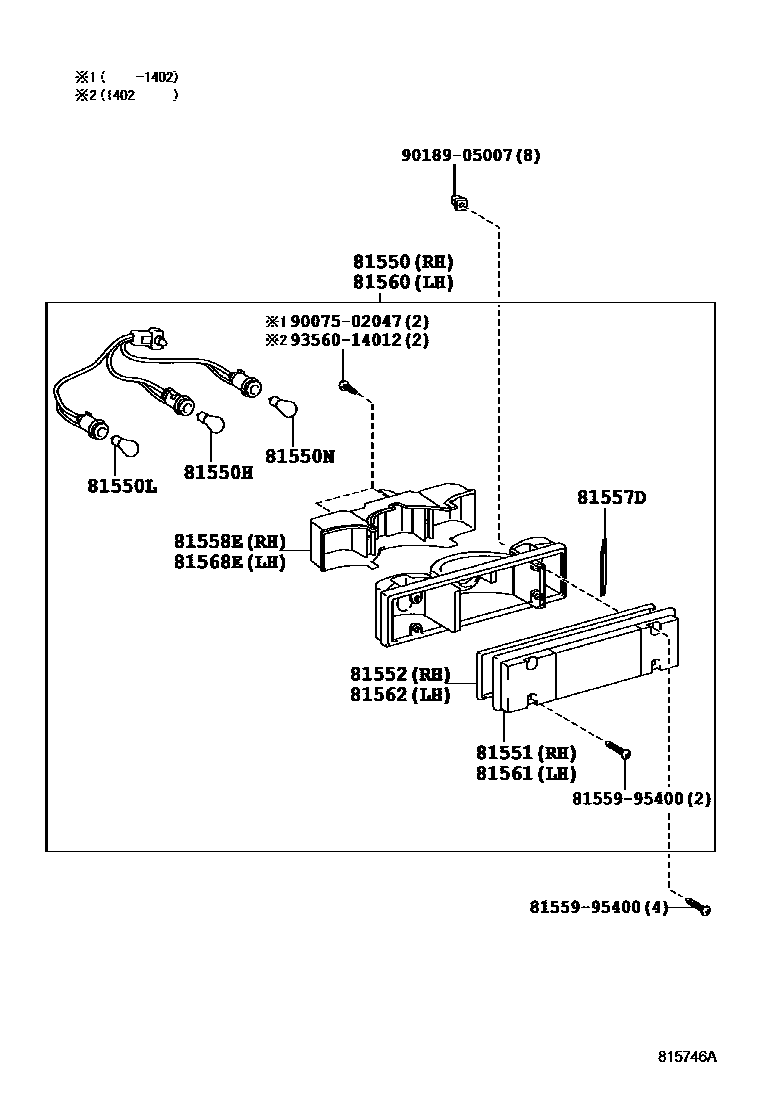

Toyota DYNA/TOYOACE HV — REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-37240iXKU710..CBU201107-201905

main81550-37260iXKU700,710,720..IV3201107-201905

81550HBULB, TAIL & STOP LAMP

main90981-16015iXKU700,710,720201107-201705

main90981-16015iXKU700,710,720..5F201705-201905

81550LBULB, REAR TURN SIGNAL LAMP

main90981-16014iXKU702,71#,72#..6F201705-201905

main90981-16014iXKU700,710,720201107-201705

81550NBULB, BACK UP LAMP

main90981-16014iXKU700,710,720201107-201705

main90981-16014iXKU700,710,720..5F201705-201905

81551LENS, REAR COMBINATION LAMP, RH

main81551-60442iXKU700,710,720201107-201905

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-95400iXKU700,710,720201107-201905

81557DREFLECTOR, REAR COMBINATION LAMP

main81557-95403iXKU700,710,720201107-201905

81558ECOVER, REAR COMBINATION LAMP, RH

main81558-27070iXKU700,710,720..5F201107-201905

81560LAMP ASSY, REAR COMBINATION, LH

main81560-37240iXKU710..5F..CBU201107-201905

main81560-37270iXKU702,71#,72#..6F..IV3201107-201905

81561LENS, REAR COMBINATION LAMP, LH

main81561-60372iXKU700,710,720201107-201905

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-95400iXKU700,710,720201107-201905

81568ECOVER, REAR COMBINATION LAMP, LH

main81568-27040iXKU700,710,720201107-201905

8155995400MOULDING, REAR COMBINATION LAMP, RH

main81559-95400

9007502047

main90075-02047

9018905007

main90189-05007

9356014012

main93560-14012

16 parts on this diagram · 1 diagram in section
