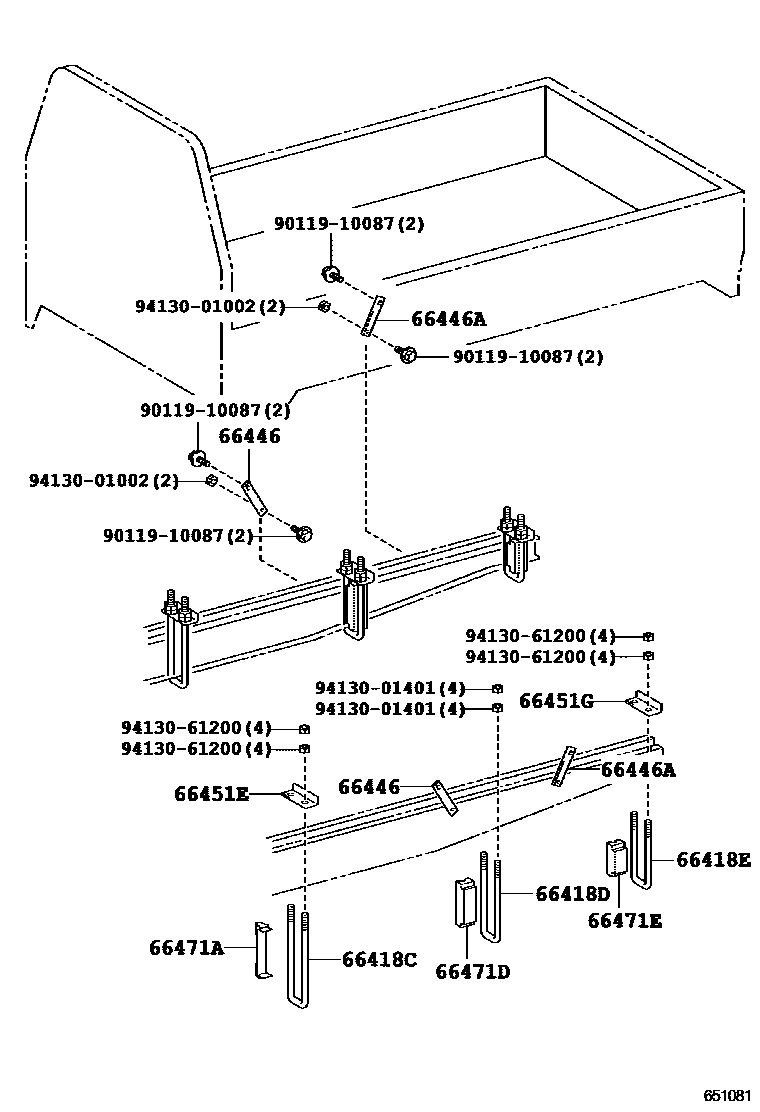

Toyota DYNA/TOYOACE HV — REAR BODY MOUNTING

66418CBOLT, U, FRONT

main90117-12039iXKU710..CBU201107-201905

66418DBOLT, U, CENTER

main90031-17021iXKU710..CBU201107-201905

66418EBOLT, U, REAR

main90117-12043iXKU710..CBU201107-201905

66446BRACE, FRAME FLOOR

main66446-37100iXKU710..(T3,T5)..CBU201107-201905

main66446-37110iXKU71#..T4..DCRWD..CBU201107-201905

66446ABRACE, FRAME TO REAR BODY FLOOR

main66446-37060iXKU710..(T3,T5)..5F..CBU201107-201905

main66446-92804iXKU71#..T4..6F..CBU201107-201905

66451EPLATE, U BOLT, FRONT

main66451-37030iXKU710..CBU201107-201905

66451GPLATE, U BOLT, REAR

main66451-37030iXKU710..CBU201107-201905

66471AREINFORCEMENT, FRAME U BOLT

main66471-37060iXKU710..CBU201107-201905

66471DREINFORCEMENT, FRAME U BOLT

main66471-37260iXKU710..CBU201107-201905

66471EREINFORCEMENT, FRAME U BOLT

main66471-37080iXKU710..CBU201107-201905

9011910087

main90119-10087

9413001002

main94130-01002

9413001401

main94130-01401

9413061200

main94130-61200

14 parts on this diagram · 1 diagram in section
