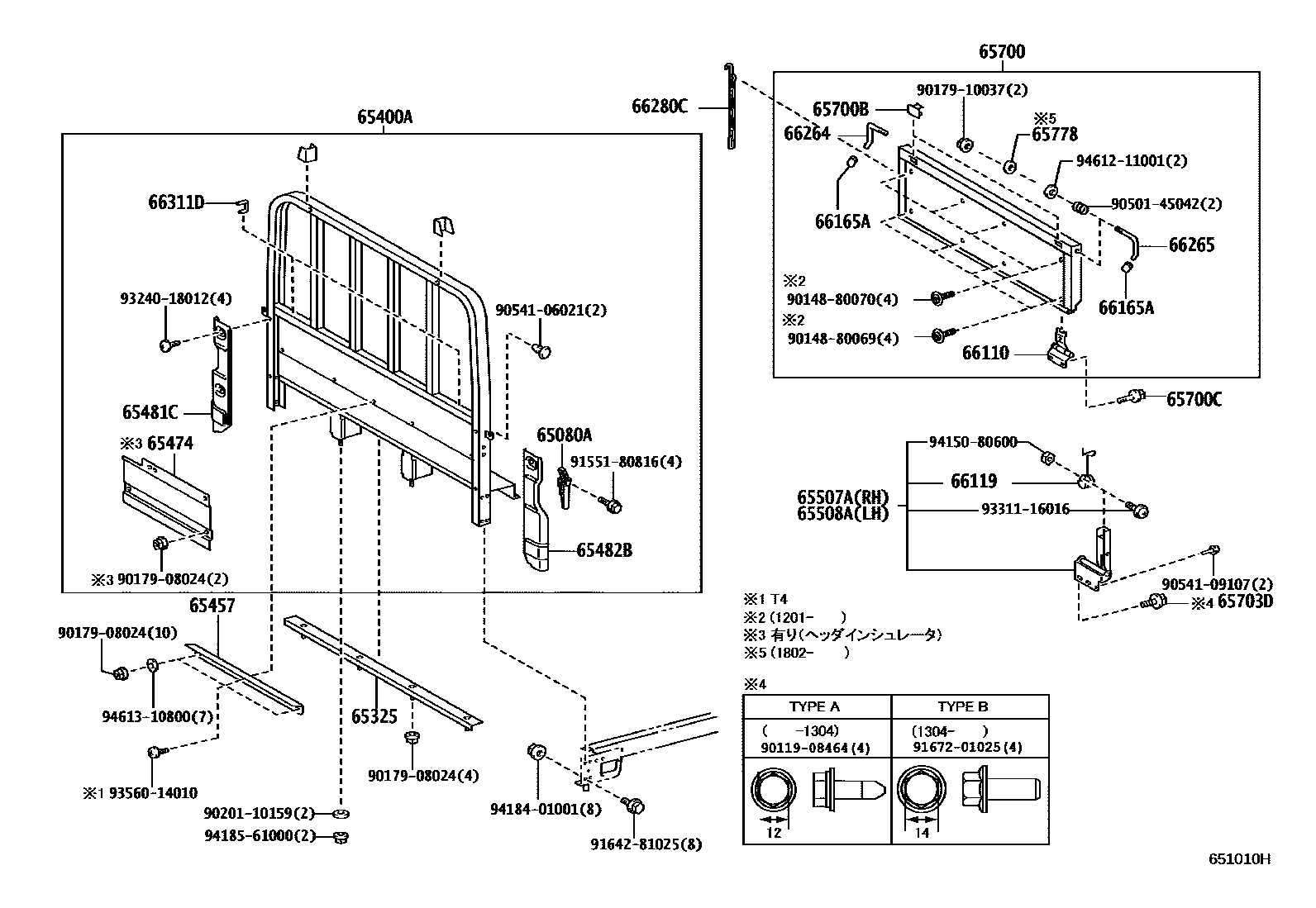

Toyota DYNA/TOYOACE HV — REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1

65080AHANDLE ASSY, SIDE GATE LATCH

main65080-92701iXKU71#..6F..CBU201107-202402

sub65080-92702

main65080-92702iXKU71#..DCWDO..CBU202403

65325PLATE, FLOOR BOARD, FRONT

main65325-37040iXKU710..20T..CBU201107-201905

sub65325-37100

main65325-37050iXKU710..(30T,35T,40T)..CBU201107-201905

sub65325-37110

main65325-37100iXKU710..DCWDO..CBU201905

main65325-37110iXKU712..DCWDO..CBU201905

65400AGUARD ASSY, REAR BODY

main65400-37N60iXKU710..T5201107-201905

sub65400-37R80

main65400-37N80iXKU710..T5..5F201107-201905

sub65400-37S00

main65400-37P50iXKU710..T4..(30T,35T)..CBU201107-201905

sub65400-37T80

main65400-37Q30iXKU710..T4..5F..20T..CBU201107-201905

sub65400-37U00

main65400-37R80iXKU710..T5..DCWDO..CBU201905-202205

main65400-37S00iXKU712..T3..DCRWD..CBU201905

main65400-37T80iXKU710..T4..DCRWD..CBU201905

main65400-37U00iXKU710..T4..DCWDO..CBU201905-202205

main65400-37V00iXKU712..T3..DCWDO..CBU202103-202309

sub65400-37V01

main65400-37V01iXKU710..T5..DCWDO..CBU202310

main65400-37V20iXKU710..T4..DCWDO..CBU202103-202309

sub65400-37V21

main65400-37V21iXKU712..T4..DCWDO..CBU202310

main65400-37W60iXKU710..T5..DCWDO..CBU202205-202309

sub65400-37W61

main65400-37W61iXKU710..T5..DCWDO..CBU202310

main65400-37X20iXKU710..T4..DCWDO..CBU202205-202309

sub65400-37X21

main65400-37X21iXKU710..T4..DCWDO..CBU202310

65457PLATE, BAFFLE DUST REAR BODY

main65457-37340iXKU710..T4..5F..CBU201107-201905

main65457-37350iXKU71#..(T3,T5)..6F..CBU201705-201905

main65457-37350iXKU710..(T3,T5)..CBU201107-201705

65474INSULATOR, HEADER

main65474-37150iXKU710..CBU201107-201905

65481CPROTECTOR, FRONT CORNER, RH

main65481-37020iXKU710..6F..CBU201107-201905

65482BPROTECTOR, FRONT CORNER, LH

main65482-37020iXKU710..DCWDO..CBU201107-201905

65507ASUPPORT SUB-ASSY, CORNER, RH

main65507-25011iXKU71#..DCWDO..CBU202310

main65507-37050iXKU710..CBU201107-201304

main65507-37051iXKU71#..6F..CBU201304-202310

65508ASUPPORT SUB-ASSY, CORNER, LH

main65508-25011iXKU71#..DCWDO..CBU202310

main65508-37050iXKU710..CBU201107-201304

main65508-37051iXKU710..5F..CBU201304-202310

65700GATE ASSY, REAR BODY TAIL

main65700-37210iXKU710..20T..CBU201107-201112

sub65700-37211

main65700-37211iXKU710..T3..30T..CBU201201-201905

sub65700-37271

main65700-37220iXKU710..20T..CBU201107-201112

sub65700-37221

main65700-37221iXKU712..DCRWD..CBU201201-201905

sub65700-37290

main65700-37271iXKU710..DCRWD..CBU201905-202205

main65700-37290iXKU712..DCWDO..CBU202103

main65700-37340iXKU710..DCWDO..CBU202205

65700BPLUG, HOLE(FOR TAIL GATE)

main90950-01430iXKU710..CBU201107-201905

65700CBOLT, W/WASHER(FOR TAIL GATE)

main90119-08464iXKU710..CBU201107-201905

main91551-80820iXKU71#..DCRWD..CBU201905

65703DBOLT(FOR TAIL GATE)

main90119-08464iXKU710..CBU201107-201304

main91672-01025iXKU71#..DCRWD..CBU201905

main91672-01025iXKU710..CBU201304-201905

65778STOPPER, TAIL GATE STAY

main65772-37010iXKU71#..6F..CBU201802-201905

66110HINGE ASSY, TAIL GATE

main66110-37020iXKU710..CBU201107-201112

sub66110-37021

main66110-37021iXKU710..CBU201201-201905

66119SPRING, TAIL GATE CHECK BALL

main72771-25011iXKU71#..DCWDO..CBU202310

main72772-25011iXKU71#..DCWDO..CBU202310

main90035-08023iXKU710..5F..CBU201107-202310

main90035-08024iXKU71#..DCRWD..CBU201107-202310

66165ACAP, GATE LATCH HANDLE

main66165-87402iXKU71#..6F..CBU201107-201905

66264HANDLE, TAIL GATE LATCH, RH

main66264-37010iXKU710..CBU201107-201905

66265HANDLE, TAIL GATE LATCH, LH

main66265-37010iXKU710..CBU201107-201905

66280CCHAIN ASSY, TAIL GATE

main66280-37020iXKU710..CBU201107-201403

main66280-37030iXKU710..CBU201404-201905

66311DHOOK, ROPE

main66312-37030iXKU710..CBU201107-201905

9014880069

main90148-80069

9014880070

main90148-80070

9017908024

main90179-08024

9017910037

main90179-10037

9020110159

main90201-10159

9050145042

main90501-45042

9054106021

main90541-06021

9054109107

main90541-09107

9155180816

main91551-80816

9164281025

main91642-81025

9324018012

main93240-18012

9331116016

main93311-16016

9356014010

main93560-14010

9415080600

main94150-80600

9418401001

main94184-01001

9418561000

main94185-61000

9461211001

main94612-11001

9461310800

main94613-10800

39 parts on this diagram · 2 diagrams in section
