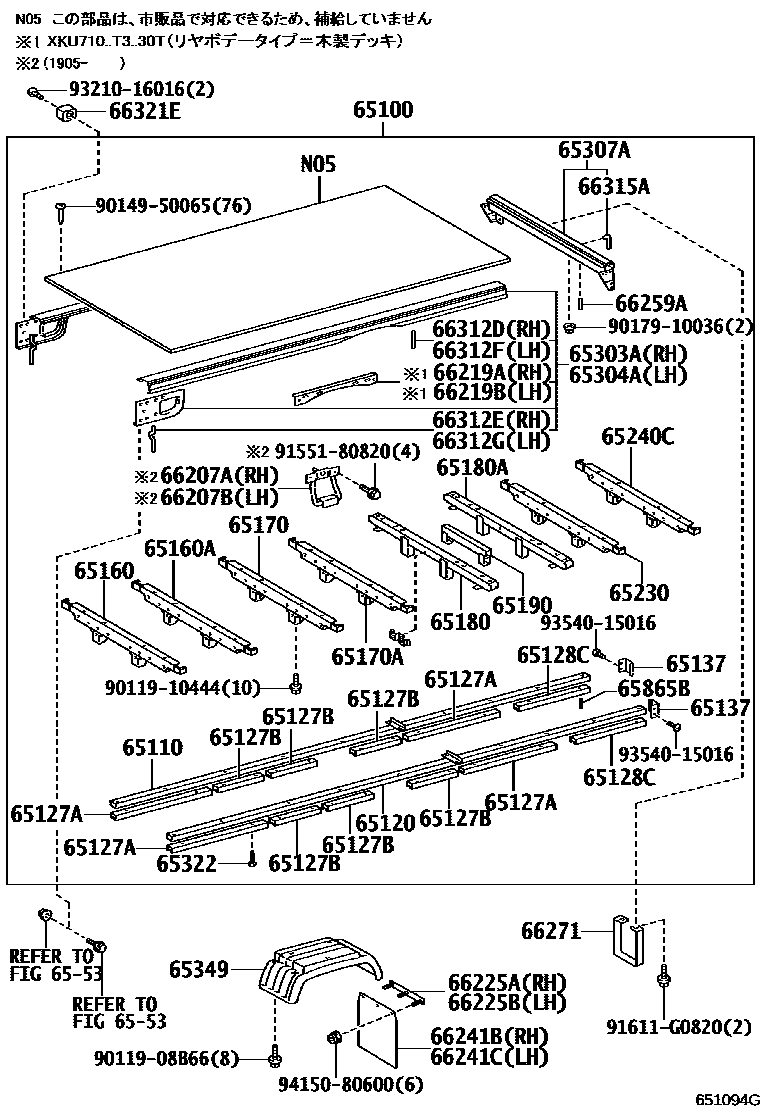

Toyota DYNA/TOYOACE HV — REAR BODY FLOOR & FENDER
65100FLOOR ASSY, REAR BODY
65110SILL ASSY, MAIN, RH
65120SILL ASSY, MAIN, LH
65127ASHIM, MAIN SILL, LOWER NO.1
65127BSHIM, MAIN SILL, LOWER NO.2
65128CSHIM, MAIN SILL, LOWER NO.4
65137COVER, MAIN SILL END
65160SILL ASSY, CROSS, NO.2
65160ASILL ASSY, CROSS, NO.2
65170SILL ASSY, CROSS, NO.2
65170ASILL ASSY, CROSS, NO.3
65230SILL ASSY, CROSS, NO.8
65240CSILL ASSY, CROSS, NO.9
6553
65865BPIN, COVER TOP GUIDE
66207ASTEP SUB-ASSY, REAR BODY, RH
66207BSTEP SUB-ASSY, REAR BODY, LH
66219AEXTENSION, REAR FENDER
66219BEXTENSION, REAR FENDER
66259ACOVER, REAR BODY FLOOR, REAR
66271STEP, REAR BODY
66312DHOOK, ROPE, NO.2
66312EHOOK, ROPE, NO.2
66312FHOOK, ROPE, NO.2
66312GHOOK, ROPE, NO.2
66315AHOOK, ROPE
66321EBUMPER, GATE RUBBER
9011908B66
main90119-08B66
9011910444
main90119-10444
9014950065
main90149-50065
9017910036
main90179-10036
9155180820
main91551-80820
91611G0820
main91611-G0820
9321016016
main93210-16016
9354015016
main93540-15016
9415080600
main94150-80600
48 parts on this diagram · 5 diagrams in section
