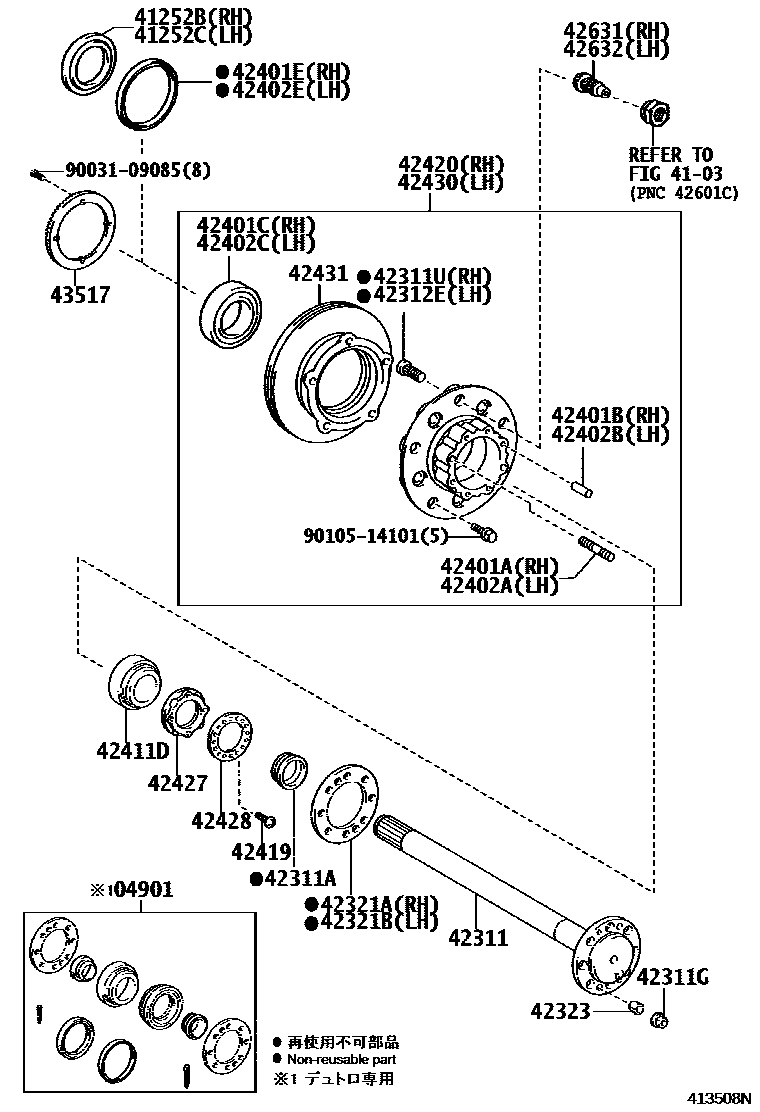

Toyota DYNA/TOYOACE HV — REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04901MAINTENANCE KIT, BRAKE

main04901-37020iXKU710,720..20T201107-201905

main04901-37060iXKU702,712,722..DCRWD201107-201905

4103

41252BDEFLECTOR, DUST, RH

main41252-37050iXKU710,720..5F..20T201107-201905

41252CDEFLECTOR, DUST, LH

main41252-37050iXKU710,720..20T201107-201905

42311SHAFT, REAR AXLE

main42311-37130iXKU710,720..20T201107-201905

main42311-37140iXKU702,712,722..DCWDO201107-201905

main42311-37150iXKU710..40T201107-201905

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90033-11032iXKU700,710,720..30T,35T,40T201107-201905

main90310-40001iXKU710,720..20T201107-201905

42311GNUT(FOR REAR AXLE SHAFT)

main90179-10067iXKU710,720..DCWDO201107-201905

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02071iXKU710,720..6F201107-201905

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02072iXKU700,710,720..30T,35T,40T201107-201905

42321AGASKET, REAR AXLE SHAFT, RH

main42321-37020iXKU710,720..20T201107-201905

42321BGASKET, REAR AXLE SHAFT, LH

main42321-37020iXKU710,720..20T201107-201905

42323WASHER, CONE (FOR REAR AXLE SHAFT)

main42323-36010iXKU710,720..20T201107-201905

42401ABOLT, STUD (FOR REAR AXLE HUB RH)

main90031-01163iXKU702,712,722..DCWDO201107-201905

main90116-10191iXKU710,720..DCRWD201107-201905

42401BPIN, STRAIGHT (FOR REAR AXLE HUB RH)

main90250-10055iXKU710,720..DCRWD201107-201905

42401CBEARING (FOR REAR AXLE HUB INNER RH)

main90033-66030iXKU700,710,720..30T,35T,40T201107-201705

main90033-66030iXKU700,710,720..30T,35T,40T201705-201905

main90366-60012iXKU710,720..DCWDO201107-201905

42401ESEAL, OIL (FOR REAR AXLE HUB RH)

main90311-78001iXKU710,720..5F..20T201107-201905

42402ABOLT, STUD (FOR REAR AXLE HUB LH)

main90031-01163iXKU700,710,720..30T,35T,40T201107-201905

main90116-10191iXKU710,720..DCWDO201107-201905

42402BPIN, STRAIGHT (FOR REAR AXLE HUB LH)

main90250-10055iXKU710,720..20T201107-201905

42402CBEARING (FOR REAR AXLE HUB INNER LH)

main90033-66030iXKU700,710,720..30T,35T,40T201107-201905

main90366-60012iXKU710,720..6F201107-201905

42402ESEAL, OIL (FOR REAR AXLE HUB LH)

main90311-78001iXKU710,720..20T201107-201905

42411DBEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

main90033-66031iXKU700,710,720..30T,35T,40T201107-201905

main90366-55054iXKU710,720..6F201107-201905

42419SCREW, REAR AXLE BEARING LOCK NUT

main90119-06199iXKU700,710,720..30T,35T,40T201107-201905

main93311-16012iXKU710,720..DCRWD201107-201905

42420HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

main42430-39175iXKU700,710,720..30T,35T,40T201107-201905

main42430-39675iXKU710,720..6F201107-201905

42427NUT, REAR AXLE BEARING LOCK

main42427-37020iXKU710,720..6F201107-201905

main42427-37030iXKU700,710,720..30T,35T,40T201107-201905

main42427-37030iXKU702..35T..DCWDO202103

main42427-37030iXKU702..35T..DCWDO202103

main42427-37030iXKU702..35T..DCWDO202103

main42427-37030iXKU702..35T..DCWDO202103

42428PLATE, REAR AXLE LOCK NUT

main42428-36020iXKU710,720..DCWDO201107-201905

main42428-37010iXKU700,710,720..30T,35T,40T201107-201905

main42428-37030iXKU702,712,722..DCWDO201107-201905

42430HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

main42430-39185iXKU702,712,722..DCRWD201107-201905

main42430-39665iXKU710,720..6F201107-201905

42431DISC, REAR

main42431-37040iXKU700,710,720..30T,35T,40T201107-201410

sub42431-37041

main42431-37041iXKU700,710,720..30T,35T,40T201411-201905

main42431-37090iXKU710,720..20T201107-201410

sub42431-37091

main42431-37091iXKU710,720..5F..20T201411-201905

42631BOLT, DOUBLE WHEEL STOP, RH

main42631-37020iXKU710,720..DCWDO201107-201905

42632BOLT, DOUBLE WHEEL STOP, LH

main42632-37020iXKU710,720..DCWDO201107-201905

43517ROTOR, SKID CONTROL, REAR

main43517-37030iXKU702,712..T3..(35T,40T)..DCWDO..IV3202103-202506

main43517-37030iXKU702,712..T3..(35T,40T)..DCWDO..IV3202103-202506

main43517-37030iXKU702,712..T3..(35T,40T)..DCWDO..IV3202103-202506

main43517-37030iXKU702,712..T3..(35T,40T)..DCWDO..IV3202103-202506

main43517-37030iXKU700,710,720..30T,35T,40T201107-201905

main43517-37040iXKU710,720..20T201107-202506

9003109085

main90031-09085

9010514101

main90105-14101

32 parts on this diagram · 3 diagrams in section
