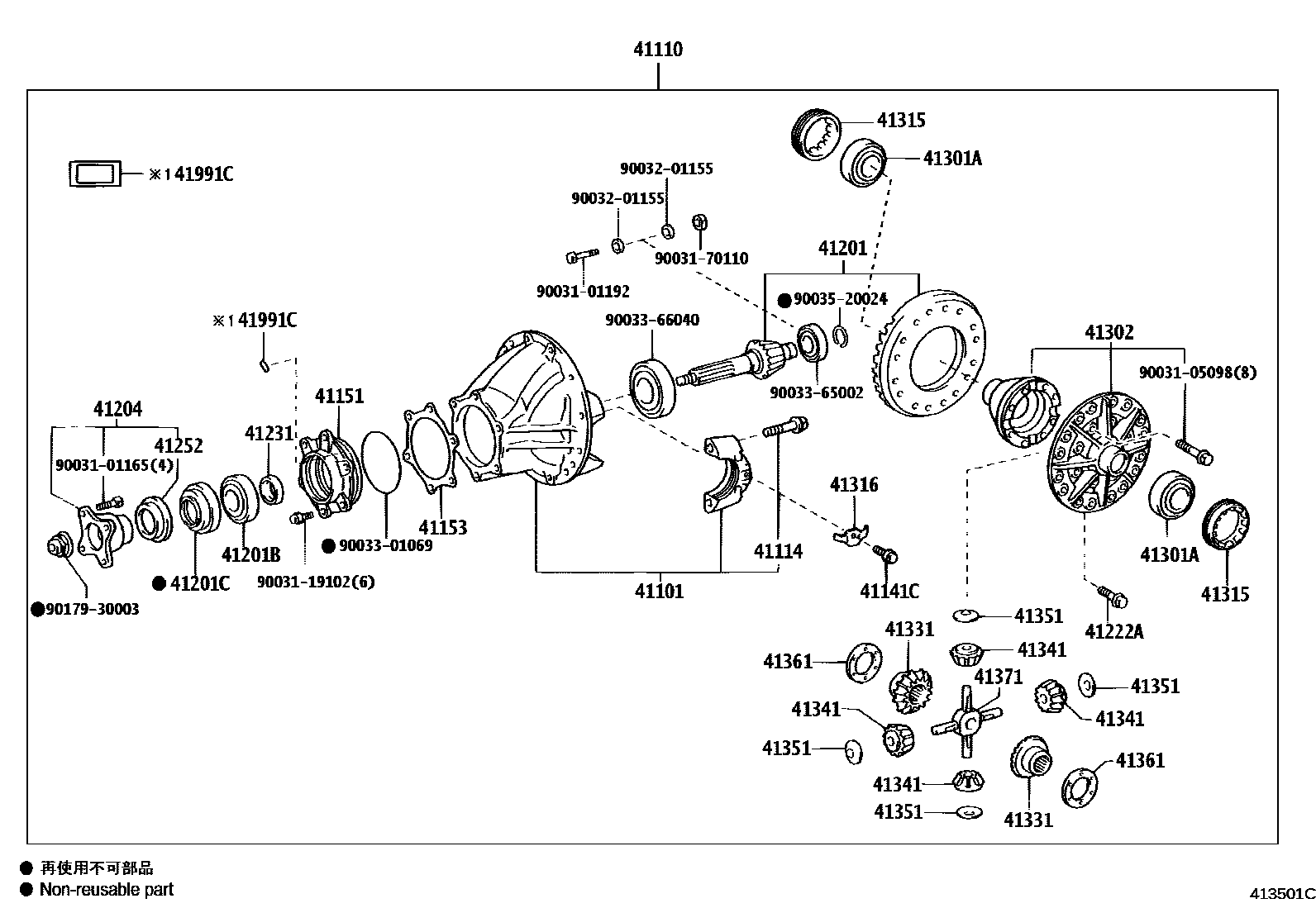

Toyota DYNA/TOYOACE HV — REAR AXLE HOUSING & DIFFERENTIAL

0001 112��� ���������� 0004 112��� ����������(FGR=3.900) 0005 112��� ����������,��(LSD) 0007 113��� ���������� 0008 112��� ���������� 0010 113��� ����������

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-37040iXKU710..40T201107-201905

main41101-37061iXKU710,720..DCRWD201905

main41101-37061iXKU700,710,720..5F..(20T,30T,35T)201107-201905

main41101-37061iXKU702,712,722..DCWDO202103

main41101-37080iXKU710,720..DCWDO202103

main41101-37080iXKU710,720..DCRWD201905

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-37330iXKU71#,720..(T4,T5)..(20T,30T)..DCWDO201107-201905

main41110-37330iXKU722..30T..DCWDO;XKU702,712..T3..30T..DCWDO201107-201705

main41110-37330iXKU700,720..30T;XKU710..T3..30T201705-201905

main41110-37340iXKU710..T4..30T;XKU710..T4..35T..CBU201107-201905

main41110-37340iXKU710..T4..30T;XKU710..T4..35T..CBU201107-201705

main41110-37340iXKU710..T4..30T;XKU710..T4..35T..CBU201705-201905

main41110-37350iXKU712..T3..35T..CBU;XKU702,712,722..35T..IV3201107-201905

main41110-37360iXKU712..T4..35T..DCRWD..CBU;XKU702,712,722..T3..30T..DCRWD201905

main41110-37360iXKU712..T4..35T..DCRWD..CBU;XKU702,712,722..T3..30T..DCRWD201905

main41110-37360iXKU702,712,722..T3..35T..DCRWD201905

main41110-37360iXKU702,712,722..T3..35T..DCWDO202103

main41110-37480iXKU710..40T201107-201905

main41110-37600iXKU710,720..5F..20T201107-201905

main41110-37800iXKU710,720..DCWDO202103

main41110-37800iXKU710,720..DCWDO201905

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90031-05043iXKU700,710,720201107-201108

subSZ105-16030

mainSZ10516030iXKU700,710,720201108-201905

41141CBOLT(FOR REAR DIFFERENTIAL SIDE BEARING RETAINER)

main90031-19101iXKU702,71#,72#..DCWDO201107-202108

mainSH68100816iXKU702,71#,72#..DCWDO202108

41151CAGE, DIFFERENTIAL DRIVE PINION BEARING

main41151-37020iXKU712..40T201107-201905

main41151-37031iXKU702,712,722..DCRWD201905

main41151-37031iXKU710,720..DCWDO202103

main41151-37031iXKU700,710,720..20T,30T,35T201107-201905

41153SHIM, DIFFERENTIAL DRIVE PINION CAGE

main41153-37050iXKU712..40T201107-201905

main41153-37060iXKU710..40T201107-201905

main41153-37070iXKU710..40T201107-201905

main41153-37080iXKU712..40T201107-201905

main41153-37090iXKU702,712,722..DCRWD201107-201905

main41153-37090iXKU702,712,722..DCRWD201905

main41153-37090iXKU710,720..DCWDO202103

main41153-37100iXKU702,712,722..DCWDO201107-201905

main41153-37100iXKU710,720..DCWDO202103

main41153-37100iXKU702,712,722..DCRWD201905

main41153-37110iXKU710,720..DCRWD201107-201905

main41153-37110iXKU710,720..DCRWD201905

main41153-37110iXKU710,720..DCWDO202103

main41153-37120iXKU702,712,722..DCRWD201905

main41153-37120iXKU700,710,720..20T,30T,35T201107-201905

main41153-37120iXKU702,712,722..DCWDO202103

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-37200iXKU700,720..30T;XKU710..T3..30T201107-201503

sub41201-37201

main41201-37200iXKU700,720..30T;XKU710..T3..30T201107-201503

sub41201-37201

main41201-37201iXKU700,720..30T;XKU710..T3..30T201504-201705

main41201-37201iXKU700,720..30T;XKU710..T3..30T201504-201905

main41201-37201iXKU700,720..30T;XKU710..T3..30T201705-201905

main41201-37210iXKU700,710,720..T3..30T201107-201503

sub41201-37211

main41201-37210iXKU710..T4..30T;XKU710..T4..35T..CBU201107-201503

sub41201-37211

main41201-37211iXKU702,712,722..T3..30T..DCWDO201504-201705

main41201-37211iXKU702,712,722..T3..30T..DCWDO201504-201905

main41201-37211iXKU702,712,722..T3..30T..DCRWD201705-201905

main41201-37220iXKU710..T3..35T..CBU;XKU700,710,720..35T..IV3201107-201503

sub41201-37221

main41201-37221iXKU712..T3..35T..DCRWD..CBU;XKU702,712,722..35T..DCRWD..IV3201504-201905

main41201-37231iXKU702,712,722..T3..35T..DCRWD201905

main41201-37231iXKU712..40T..DCRWD201905

main41201-37231iXKU712..40T..DCRWD201905

main41201-37231iXKU712..40T..DCRWD201905

main41201-37231iXKU712..40T..DCRWD201905

main41201-37231iXKU712..40T..DCWDO202103

main41201-37231iXKU712..40T..DCWDO202103

main41201-37231iXKU712..40T..DCWDO202103

main41201-37300iXKU710..40T201107-201905

main41201-37370iXKU710,720..20T201107-201905

main41201-37470iXKU710,720..DCWDO201905

main41201-37470iXKU710,720..DCWDO202103

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90033-66038iXKU700,710,720201107-201108

subSZ366-45013

main90366-45065iXKU710,720..DCWDO202103

main90366-45065iXKU710,720..DCRWD201905

mainSZ36645013iXKU702,712,722..DCRWD201905

mainSZ36645013iXKU702,712,722..DCWDO202103

mainSZ36645013iXKU700,710,720201108-201905

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90033-11039iXKU710,720..DCWDO202103

main90033-11039iXKU700,710,720201107-201905

main90033-11039iXKU702,712,722..DCRWD201905

main90311-65005iXKU710,720..DCWDO202103

main90311-65005iXKU710,720..DCRWD201905

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-37060iXKU710..40T201107-201905

main41204-37080iXKU710,720..DCWDO202103

main41204-37080iXKU700,710,720..20T,30T,35T201107-201905

main41204-37080iXKU702,712,722..DCRWD201905

main41204-37130iXKU710,720..DCWDO202103

main41204-37130iXKU710,720..DCRWD201905

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90031-01203iXKU702,71#,72#..6F..(20T,30T,35T)201107-201905

main90031-09055iXKU712..40T201107-201905

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-37220iXKU710..40T201107-201905

main41231-37230iXKU710..40T201107-201905

main41231-37240iXKU712..40T201107-201905

main41231-37250iXKU710..40T201107-201905

main41231-37260iXKU710..40T201107-201905

main41231-37270iXKU712..40T201107-201905

main41231-37280iXKU710..40T201107-201905

main41231-37290iXKU710..40T201107-201905

main41231-37300iXKU710..40T201107-201905

main41231-37310iXKU712..40T201107-201905

main41231-37320iXKU710..40T201107-201905

main41231-37330iXKU712..40T201107-201905

main41231-37340iXKU710..40T201107-201905

main41231-37350iXKU712..40T201107-201905

main41231-37360iXKU710..40T201107-201905

main41231-37370iXKU710..40T201107-201905

main41231-37380iXKU710..40T201107-201905

main41231-37390iXKU710..40T201107-201905

main41231-37400iXKU710..40T201107-201905

main41231-37410iXKU710..40T201107-201905

main41231-37420iXKU702,712,722..DCWDO202103

main41231-37420iXKU702,71#,72#..6F..(20T,30T,35T)201107-201905

main41231-37420iXKU710,720..DCRWD201905

main41231-37430iXKU710,720..DCRWD201107-201905

main41231-37430iXKU702,712,722..DCWDO202103

main41231-37430iXKU710,720..DCRWD201905

main41231-37440iXKU710,720..DCWDO201107-201905

main41231-37440iXKU702,712,722..DCRWD201905

main41231-37440iXKU702,712,722..DCWDO202103

main41231-37450iXKU702,712,722..DCRWD201905

main41231-37450iXKU700,710,720..5F..(20T,30T,35T)201107-201905

main41231-37450iXKU702,712,722..DCWDO202103

main41231-37460iXKU702,71#,72#..6F..(20T,30T,35T)201107-201905

main41231-37460iXKU710,720..DCRWD201905

main41231-37460iXKU710,720..DCWDO202103

main41231-37470iXKU700,710,720..5F..(20T,30T,35T)201107-201905

main41231-37470iXKU710,720..DCWDO202103

main41231-37470iXKU702,712,722..DCRWD201905

main41231-37480iXKU710,720..DCWDO201107-201905

main41231-37480iXKU702,712,722..DCRWD201905

main41231-37480iXKU710,720..DCWDO202103

main41231-37490iXKU702,712,722..DCRWD201107-201905

main41231-37490iXKU702,712,722..DCRWD201905

main41231-37490iXKU710,720..DCWDO202103

main41231-37500iXKU700,710,720..20T,30T,35T201107-201905

main41231-37500iXKU702,712,722..DCWDO202103

main41231-37500iXKU702,712,722..DCRWD201905

main41231-37510iXKU710,720..DCRWD201905

main41231-37510iXKU700,710,720..20T,30T,35T201107-201905

main41231-37510iXKU710,720..DCWDO202103

main41231-37520iXKU702,712,722..DCWDO201107-201905

main41231-37520iXKU702,712,722..DCWDO202103

main41231-37520iXKU702,712,722..DCRWD201905

main41231-37530iXKU702,712,722..DCWDO201107-201905

main41231-37530iXKU702,712,722..DCWDO202103

main41231-37530iXKU702,712,722..DCRWD201905

main41231-37540iXKU702,712,722..DCWDO202103

main41231-37540iXKU710,720..DCRWD201107-201905

main41231-37540iXKU702,712,722..DCRWD201905

main41231-37550iXKU702,71#,72#..6F..(20T,30T,35T)201107-201905

main41231-37550iXKU702,712,722..DCRWD201905

main41231-37550iXKU702,712,722..DCWDO202103

main41231-37560iXKU700,710,720..5F..(20T,30T,35T)201107-201905

main41231-37560iXKU710,720..DCWDO202103

main41231-37560iXKU710,720..DCRWD201905

main41231-37570iXKU710,720..DCWDO201107-201905

main41231-37570iXKU702,712,722..DCWDO202103

main41231-37570iXKU710,720..DCRWD201905

main41231-37580iXKU710,720..DCRWD201107-201905

main41231-37580iXKU710,720..DCRWD201905

main41231-37580iXKU702,712,722..DCWDO202103

main41231-37590iXKU700,710,720..5F..(20T,30T,35T)201107-201905

main41231-37590iXKU702,712,722..DCWDO202103

main41231-37590iXKU702,712,722..DCRWD201905

main41231-37600iXKU710,720..DCWDO201107-201905

main41231-37600iXKU702,712,722..DCWDO202103

main41231-37600iXKU702,712,722..DCRWD201905

main41231-37610iXKU710,720..DCWDO201107-201905

main41231-37610iXKU710,720..DCRWD201905

main41231-37610iXKU702,712,722..DCWDO202103

main41231-37640iXKU710,720..DCWDO202103

main41231-37640iXKU710,720..DCRWD201905

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-37060iXKU710,720..DCWDO202103

main41252-37060iXKU710,720..DCRWD201905

mainS373411560iXKU710,720..DCWDO202103

mainS373411560iXKU700,710,720201107-201905

mainS373411560iXKU702,712,722..DCRWD201905

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90033-66039iXKU712..40T201107-201905

main90366-55054iXKU710,720201905-201906

main90366-55054iXKU700,710,720..20T,30T,35T201107-201905

main90366-55089iXKU710,720..DCRWD201905

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-37020iXKU710..40T201107-201412

sub41301-37021

main41301-37021iXKU712..40T201412-201905

main41301-37030iXKU710,720..6F201705-201905

main41301-37030iXKU700,710,720..30T;XKU710..T4..35T..CBU201107-201705

main41301-37040iXKU710..T4..35T..CBU;XKU700,710,720..T3..30T201705-201805

main41301-37040iXKU700..30T;XKU710,720..T4..30T201705-201905

main41301-37040iXKU700..30T;XKU710,720..T4..30T201705-201805

main41301-37040iXKU700..30T;XKU710,720..T4..30T201107-201705

main41301-37040iXKU710..T3..35T..CBU;XKU700,710,720..35T..IV3201107-201705

main41301-37040iXKU710..T3..35T..CBU;XKU700,710,720..35T..IV3201107-201705

main41301-37070iXKU710,720..6F201107-201905

main41301-37080iXKU710,720..DCWDO202103

main41301-37080iXKU710,720..DCRWD201905

main41301-37090iXKU712..T4..35T..DCWDO..CBU;XKU702,712,722..T3..30T..DCWDO202103

main41301-37090iXKU712..T3..(35T,40T)..DCRWD..CBU;XKU702,712,722..(35T,40T)..DCRWD..IV3201905

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-37010iXKU710..40T201107-201905

main41315-37020iXKU700,710,720..5F..(20T,30T,35T)201107-201905

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-37010iXKU700,710,720..5F201107-201905

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-37021iXKU712..40T201107-201905

main41331-37040iXKU700,710,720..5F..(20T,30T,35T)201107-201905

41341PINION, REAR DIFFERENTIAL

main41341-37021iXKU710..40T201107-201905

main41341-37030iXKU700,710,720..20T,30T,35T201107-201905

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-37010iXKU710..40T201107-201905

main41351-37020iXKU700,710,720..5F..(20T,30T,35T)201107-201905

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-37020iXKU710..40T201107-201905

main41361-37030iXKU702,71#,72#..6F..(20T,30T,35T)201107-201905

41371SPIDER, REAR DIFFERENTIAL

main41371-37010iXKU712..40T201107-201905

main41371-37030iXKU702,71#,72#..DCWDO201107-201905

41991CAUTION PLATE, REAR DIFFERENTIAL

main41991-22010

main41991-37010

mainS7655-34020

main41991-37050

main41991-37060

main41991-37070

mainS7655-34080

main41991-37080

mainS4162-E0080

main41991-37090

main41991-37140

main41991-37150

mainS7655-31350

mainS7655-31360

mainS7655-33370

mainS7655-31380

mainS7655-31400

mainS7655-31430

mainS7655-35620

41991CCAUTION PLATE, REAR DIFFERENTIAL

main41991-37050iXKU700,720..30T;XKU710..T3..30T201107-201705

main41991-37050iXKU700,720..30T;XKU710..T3..30T201705-201709

main41991-37060iXKU700,710,720..T3..30T201107-201705

main41991-37060iXKU710..T4..30T;XKU710..T4..35T..CBU201705-201709

main41991-37070iXKU710..T3..35T..CBU;XKU700,710,720..35T..IV3201107-201709

main41991-37150iXKU710..40T201107-201709

subS4162-E0080

mainS4162E0080iXKU712..40T201904-201905

mainS765531350iXKU720..5F..20T;XKU710..(T4,T5)..5F..(20T,30T)201709-201905

mainS765531350iXKU722..30T..DCWDO;XKU702,712..T3..30T..DCWDO202103

mainS765531360iXKU702,712,722..T3..30T..DCRWD201709-201905

mainS765531360iXKU702,712,722..T3..30T..DCWDO202103

mainS765531380iXKU710..T3..35T..CBU;XKU700,710,720..35T..IV3201709-201905

mainS765531400iXKU712..40T201709-201903

subS4162-E0080

mainS765533370iXKU710,720..5F..20T201709-201905

mainS765533370iXKU710,720..DCWDO202103

mainS765534020iXKU712..T4..35T..DCWDO..CBU;XKU702,712,722..T3..30T..DCWDO201905

mainS765534020iXKU712..40T..DCRWD201905

mainS765534020iXKU712..40T..DCWDO202103

9003101165

main90031-01165

9003101192

main90031-01192

9003105098

main90031-05098

9003119102

main90031-19102

9003170110

main90031-70110

9003201155

main90032-01155

9003301069

main90033-01069

9003365002

main90033-65002

9003366040

main90033-66040

9003520024

main90035-20024

9017930003

main90179-30003

35 parts on this diagram · 6 diagrams in section
