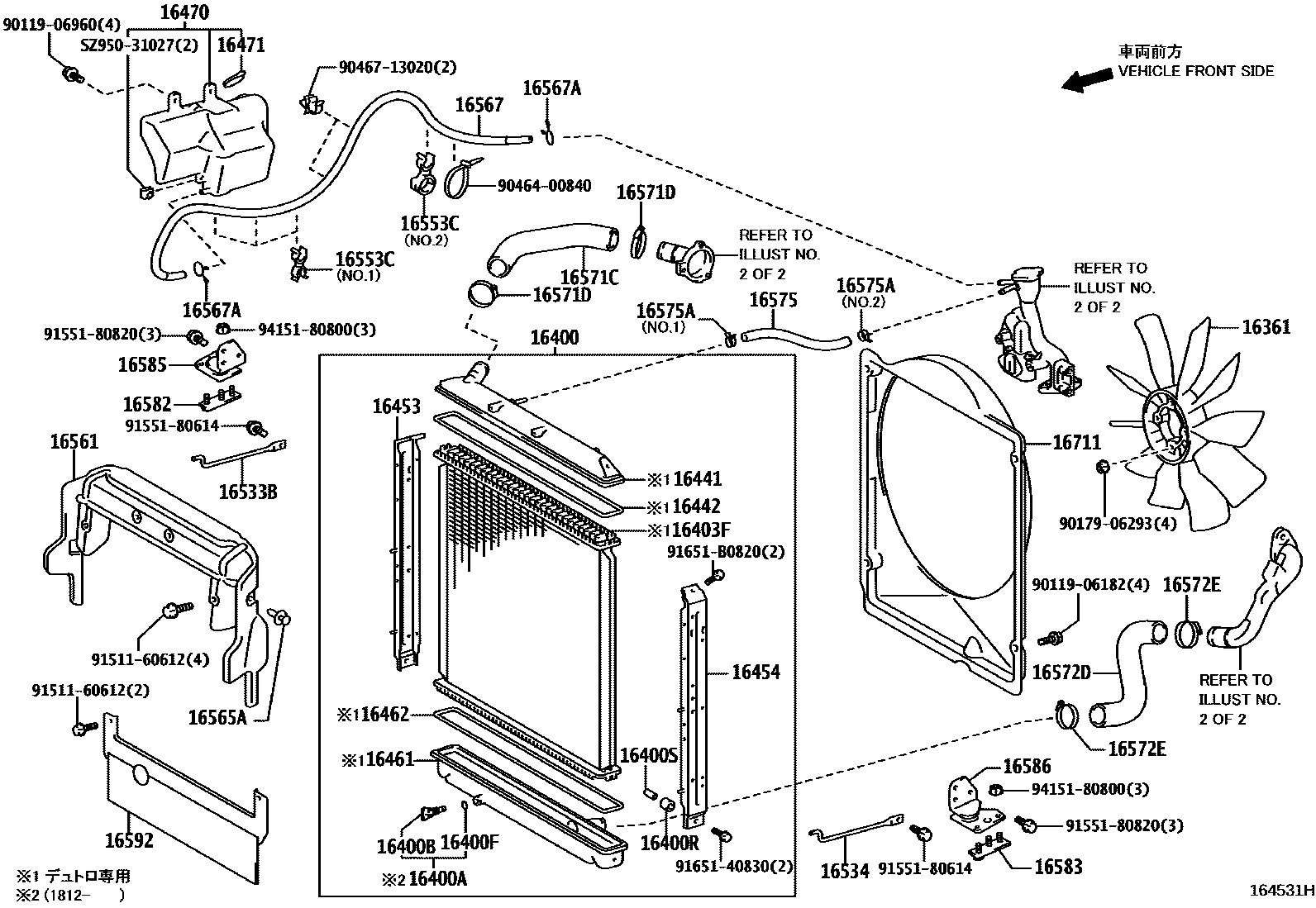

Toyota DYNA/TOYOACE HV — RADIATOR & WATER OUTLET
16361FAN
16400ACOCK SUB-ASSY, RADIATOR DRAIN
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16400RBUSHING(FOR RADIATOR)
16400SCOLLAR(FOR RADIATOR)
16403FCORE SUB-ASSY, RADIATOR
sub16403-78A52
16441TANK, RADIATOR, UPPER
16442RING, O(FOR RADIATOR UPPER TANK)
16454PLATE, RADIATOR SIDE
16462RING, O(FOR RADIATOR LOWER TANK)
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16533BSUPPORT, RADIATOR, NO.1
16534SUPPORT, RADIATOR, NO.2
16553CCLAMP, HOSE
16561SEAL, RADIATOR TO SUPPORT, NO.1
16565ACLIP
16567HOSE(FOR RADIATOR RESERVE TANK)
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
16575HOSE, RADIATOR, NO.5
16575ACLIP, RADIATOR HOSE, NO.5
16582BRACKET, RADIATOR, NO.1
16583BRACKET, RADIATOR, NO.2
16585BRACKET, RADIATOR, NO.3
16586BRACKET, RADIATOR, NO.4
16592GUIDE, RADIATOR AIR, NO.3
16711SHROUD, FAN
9011906182
main90119-06182
9011906960
main90119-06960
9017906293
main90179-06293
9046400840
main90464-00840
9046713020
main90467-13020
9151160612
main91511-60612
9155180614
main91551-80614
9155180820
main91551-80820
9165140830
main91651-40830
91651B0820
main91651-B0820
9415180800
main94151-80800
SZ95031027
mainSZ950-31027
47 parts on this diagram · 5 diagrams in section
