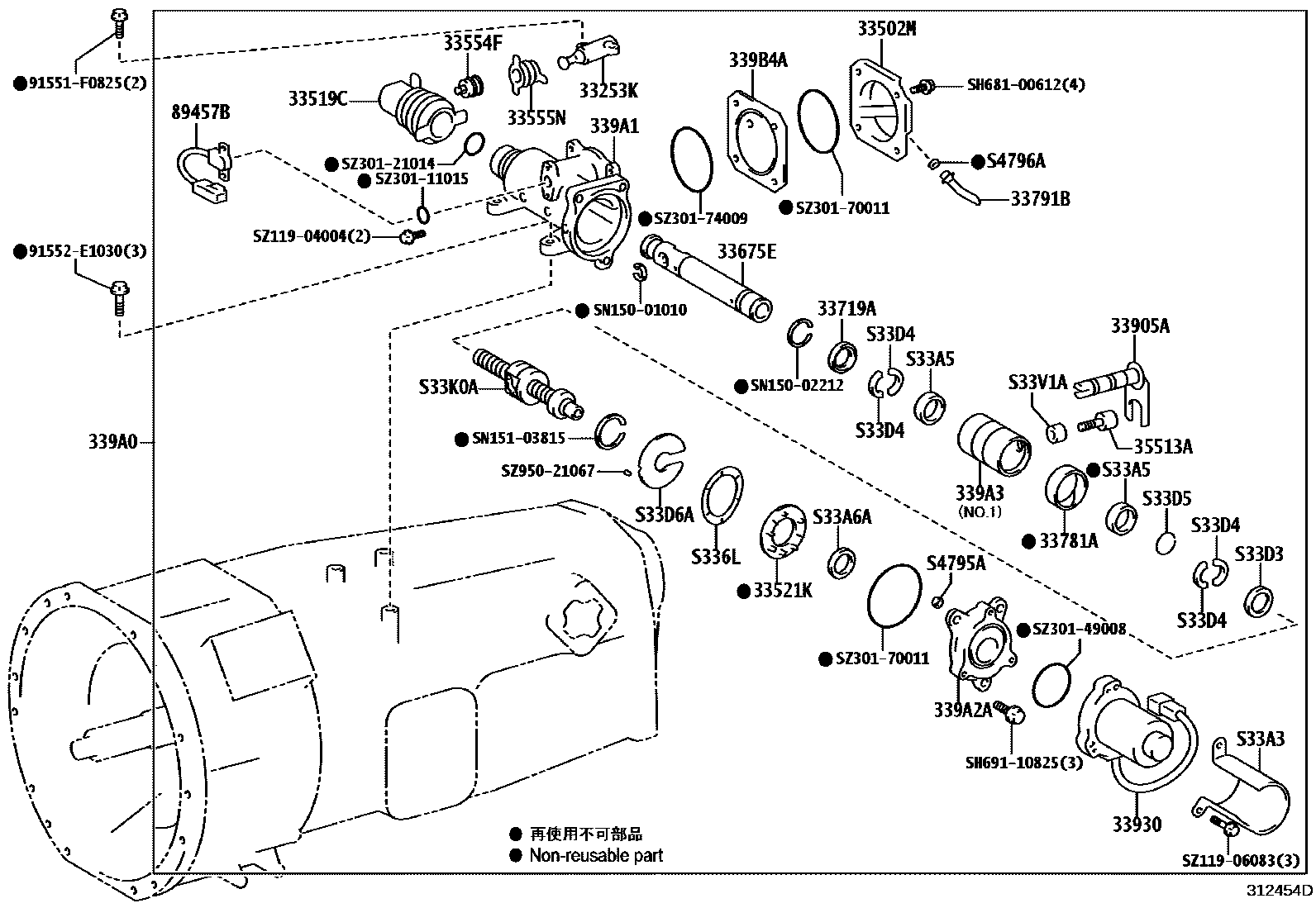

Toyota DYNA/TOYOACE HV — PUMP & ACTUATOR, SEQUENTIAL OR MULTI-MODE MANUAL TRANSAXLE

0001 1������������ ������� 0002 1������������ ������� 0003 1������������� ������� 0004 1������������� �������

33253KLEVER, SHIFT, OUTER

main33251-37080iXKU702,71#,72#..DCRWD201711-201905

main33253-37130iXKU700,710,720..5F201705-201805

33502MPLATE SUB-ASSY, SHIFT LEVER

main33502-37020iXKU700,710,720201107-201905

main33502-37030iXKU702,71#,72#..DCRWD201905

33519CBOOT, CONTROL SHAFT DUST

main33519-37020iXKU700,710,720..5F201705-201805

main33531-37040iXKU702,71#,72#..6F201711-201905

33521KPLATE, SHIFT LEVER

main33521-E0070iXKU700,710,720..5F201107-201905

33554FCAP, SHIFT LEVER

main33554-37030iXKU700,710,720201107-201805

main33554-37050iXKU702,71#,72#..6F201711-201905

33555NBOOT, SHIFT LEVER, NO.3

main33555-37030iXKU700,710,720201107-201805

main33555-37040iXKU702,71#,72#..6F201711-201905

33675EROD, TRANSMISSION CONTROL

main33675-37020iXKU700,710,720201107-201805

main33675-37030iXKU702,71#,72#..6F201711-201905

33719APLATE, SHIFT CONTROL ROD

main33719-37010iXKU700,710,720201107-201905

33781AGUIDE, SHIFTING ROD

main33781-37010iXKU700,710,720201107-201905

33791BTUBE, GEAR SHIFTING

main33791-37010iXKU700,710,720201107-201905

main33791-37020iXKU702,71#,72#..DCWDO201905

33905ALEVER SUB-ASSY, SHIFT ACTUATOR SENSOR

main33905-37010iXKU700,710,720201107-201905

33930MOTOR ASSY, TRANS ACTUATOR SHIFT

main33930-37012iXKU700,710,720201107-201308

sub33930-37013

main33930-37013iXKU700,710,720201309-201606

sub33930-37014

main33930-37014iXKU700,710,720201607-201905

339A0ACTUATOR ASSY, TRANSMISSION SHIFT

main339A0-37013iXKU700,710,720201107-201308

sub339A0-37014

main339A0-37014iXKU700,710,720201309-201606

sub339A0-37015

main339A0-37015iXKU700,710,720201607-201805

main339A0-37020iXKU702,71#,72#..6F201711-201905

main339A0-37030iXKU702,71#,72#..DCRWD201905

339A1CYLINDER, TRANS ACTUATOR SHIFT

main339A1-37010iXKU700,710,720..5F201107-201805

main339A1-37020iXKU702,71#,72#..6F201711-201905

339A2AHOUSING, SHIFT ACTUATOR BEARING

main339A2-37010iXKU700,710,720201107-201905

339A3HOLDER, TRANSMISSION ACTUATOR

main339A3-37010iXKU700,710,720..5F201107-201905

main339A3-37020iXKU702,71#,72#..DCRWD201107-201905

339B4ACOVER, SHIFT ACTUATOR CYLINDER

main339B4-37010iXKU700,710,720201107-201905

main339B4-37020iXKU702,71#,72#..DCRWD201905

35513ABOLT, SHIFT CONTROL ACTUATOR

main35513-E0010iXKU700,710,720201107-201905

89457BSTROKE SENSOR, SHIFT

main89457-37010iXKU700,710,720201107-201905

S336LWASHER, SHIFT LEVER PRESSURE SPRING

mainS336LE0010iXKU700,710,720201107-201905

S33A3COVER, GEAR SHIFT MOTOR

mainS33A3E0010iXKU700,710,720201107-201905

S33A5BUSH, TRANSMISSION CONTROL, NO.1

mainS33A5E0010iXKU700,710,720201107-201905

S33A6ABUSH, SHIFT ACTUATOR CONTROL NO.2

mainS33A6E0010iXKU700,710,720201107-201905

S33D3PLATE, DAMPER SET

mainS33D3E0010iXKU700,710,720201107-201905

S33D4RING, TRANSMISSION CONTROL RET, NO.1

mainS33D4E0010iXKU700,710,720201107-201905

S33D5RING, TRANSMISSION CONTORL RET, NO.2

mainS33D5E0010iXKU700,710,720201107-201905

S33D6ACOVER, SHIFT ACTUATOR BEARING HOUSING

mainS33D6E0010iXKU700,710,720201107-201905

S33K0ASCREW ASSY, SHIFT BALL

mainS33K0E0010iXKU700,710,720201107-201905

S33V1ASPACER, SHIFT ACTUATOR SENSOR

mainS33V1E0010iXKU700,710,720201107-201905

S4795AFILTER, SHIFT ACTUATOR

mainS479591020iXKU700,710,720201107-201905

S4796AFILTER ASSY, SHIFT ACTUATOR

mainS479601070iXKU700,710,720201107-201905

91551F0825

main91551-F0825

91552E1030

main91552-E1030

SH68100612

mainSH681-00612

SH69110825

mainSH691-10825

SN15001010

mainSN150-01010

SN15002212

mainSN150-02212

SN15103815

mainSN151-03815

SZ11904004

mainSZ119-04004

SZ11906083

mainSZ119-06083

SZ30111015

mainSZ301-11015

SZ30121014

mainSZ301-21014

SZ30149008

mainSZ301-49008

SZ30170011

mainSZ301-70011

SZ30174009

mainSZ301-74009

SZ95021067

mainSZ950-21067

46 parts on this diagram · 4 diagrams in section
