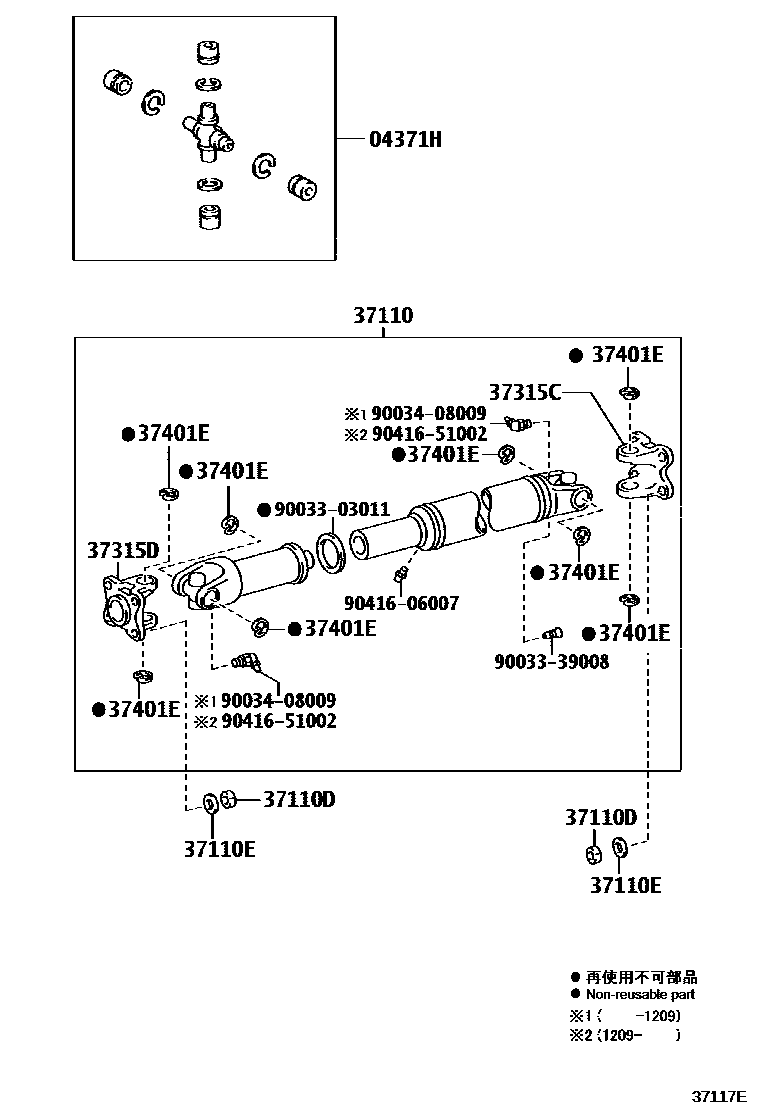

Toyota DYNA/TOYOACE HV — PROPELLER SHAFT & UNIVERSAL JOINT

0001 1�� 0004 1�� 0006 1��

04371HSPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT

main04371-37080iXKU700,710,720201107-201402

sub04371-37081

main04371-37081iXKU700,710,720201402-201611

sub04371-37110

main04371-37110iXKU700,710,720201611-202110

sub04371-37120

main04371-37120iXKU702..DCWDO202111

37110SHAFT ASSY, PROPELLER

main37110-37D01iXKU710..40T201107-201805

main37110-37E31iXKU702..DCWDO201711-201905

main37110-37E71iXKU72#..6F201107-201905

main37110-37F41iXKU710..5F..(20T,30T,35T)201107-201805

main37110-37G21iXKU700201107-201805

main37110-37J30iXKU71#..6F201711-201905

main37110-37K10iXKU71#..DCRWD201905

37110DNUT (FOR PROPELLER SHAFT)

main90170-12005iXKU700,710,720..5F201107-201905

37110EWASHER (FOR PROPELLER SHAFT)

main94512-01200iXKU702,71#,72#..DCWDO201107-201905

37315CYOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE

main37315-37070iXKU710,720201107-201705

main37315-37070iXKU700,710,720..5F201705-201905

37315DYOKE, NO.2, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE

main37315-37070iXKU710,720201107-201905

37401ERING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)

main90035-21038iXKU702,71#,72#..6F201107-201905

main90035-21039iXKU702,71#,72#..6F201107-201905

main90035-21040iXKU702,71#,72#..DCWDO201107-201905

main90035-21041iXKU702,71#,72#..6F201107-201905

main90035-21042iXKU700,710,720201107-201905

main90035-21043iXKU700,710,720201107-201905

main90035-21044iXKU702,71#,72#..DCRWD201107-201905

9003303011

main90033-03011

9003339008

main90033-39008

9003408009

main90034-08009

9041606007

main90416-06007

9041651002

main90416-51002

12 parts on this diagram · 3 diagrams in section
