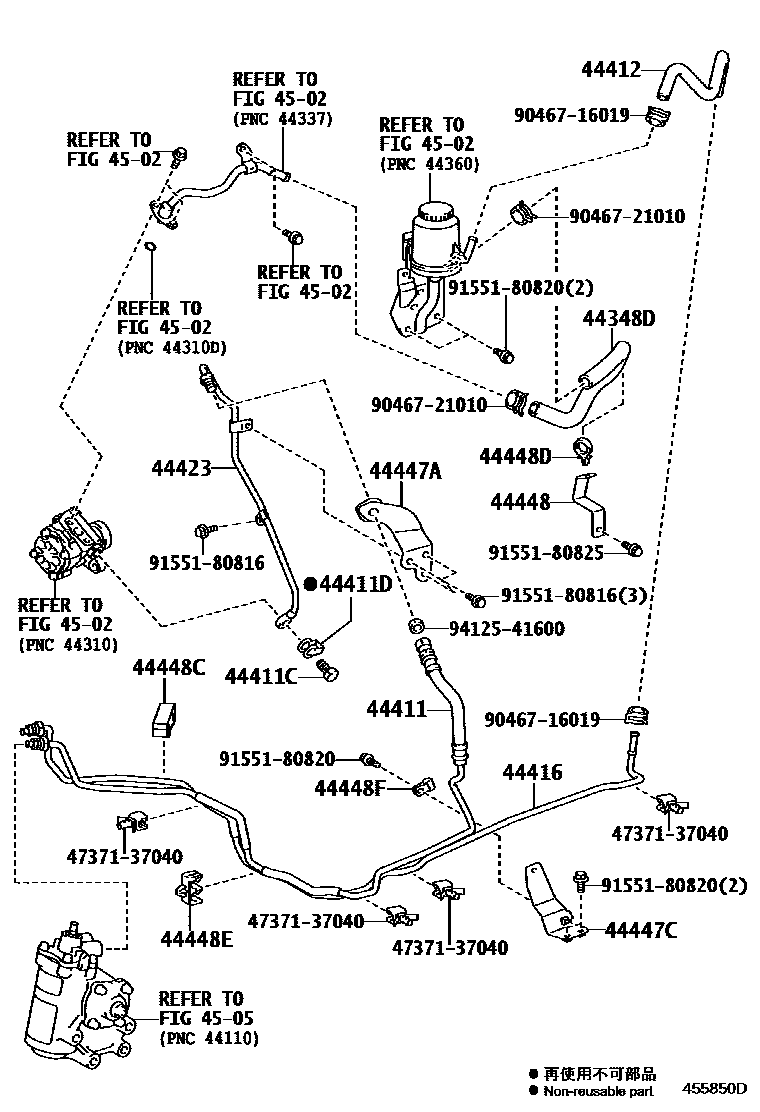

Toyota DYNA/TOYOACE HV — POWER STEERING TUBE

0001 1 0002 1

44348DHOSE, OIL RESERVOIR TO PUMP, NO.2

main44348-37540iXKU700,710,720201107-202201

sub44348-37541

main44348-37541iXKU702,71#,72#..DCWDO202202

44411HOSE, PRESSURE FEED

main44411-37501iXKU700,710,720201107-201601

sub44411-37502

main44411-37502iXKU700,710,720201602-201905

main44411-37740iXKU702,71#,72#..DCRWD201905-201909

sub44411-37741

main44411-37741iXKU702,71#,72#..DCRWD201910

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16027iXKU700,710,720201107-201905

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30030iXKU700,710,720201107-201905

44412HOSE, RETURN

main44412-37360iXKU700,710,720201107-201905

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-37711iXKU700,710,720201107-201905

main44416-37890iXKU702,71#,72#..DCRWD201905

44423TUBE, OIL PUMP TO GEAR BOX

main44423-37141iXKU700,710,720201107-201703

sub44423-37160

main44423-37160iXKU700,710,720201704-201707

sub44423-37161

main44423-37161iXKU700,710,720..5F201708-201905

main44423-37170iXKU702,71#,72#..DCRWD201905-202405

sub44423-37171

main44423-37171iXKU702,71#,72#..DCWDO202406

44447ABRACKET, HOSE SUPPORT, NO.1

main44447-37310iXKU700,710,720201107-201703

sub44447-37400

main44447-37400iXKU700,710,720201704-201905

main44447-37420iXKU702,71#,72#..DCRWD201905

44447CBRACKET, HOSE SUPPORT NO.2

main44447-37350iXKU700,710,720201107-201906

sub44447-37351

main44447-37351iXKU702,71#,72#..DCRWD201907-201908

sub44447-37352

main44447-37352iXKU702,71#,72#..DCRWD201909

44448BRACKET, PRESSURE FEED HOSE SUPPORT, NO.1

main44447-37321iXKU700,710,720201107-201905

44448CCLAMP, PRESSURE FEED, NO.2

main44448-37030iXKU700,710,720201107-201905

44448DCLAMP, PRESSURE FEED, NO.1

main44448-37090iXKU700,710,720201107-201905

44448ECLAMP, PRESSURE FEED, NO.3

main44448-37080iXKU700,710,720201107-201905

44448FCLAMP, PRESSURE FEED, NO.4

main44448-37060iXKU700,710,720201107-201905

4502

4505

4737137040BRACKET, CONNECTOR

main47371-37040

9046716019

main90467-16019

9046721010

main90467-21010

9155180816

main91551-80816

9155180820

main91551-80820

9155180825

main91551-80825

9412541600

main94125-41600

23 parts on this diagram · 2 diagrams in section
