Toyota DYNA/TOYOACE HV — PARTIAL ENGINE ASSEMBLY

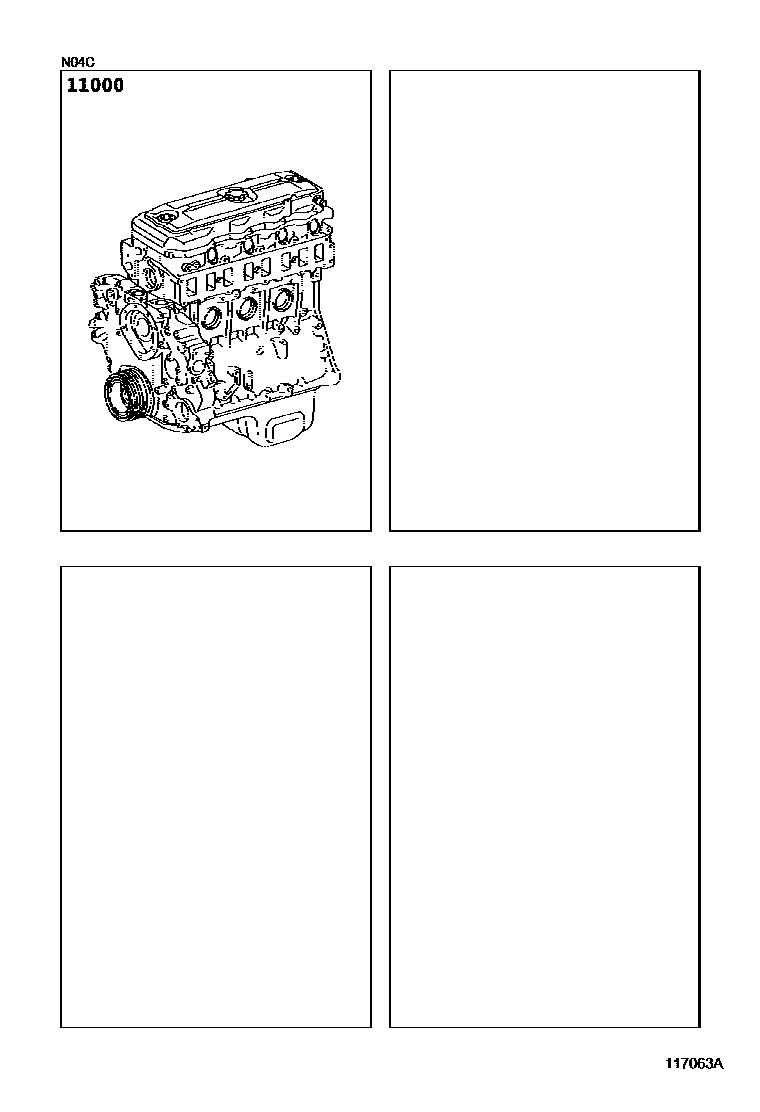

11000ENGINE ASSY, PARTIAL

main19000-0UG80iN04C..XKU702,71#,72#..DCWDO202310-202409

main19000-0UG81iN04C..XKU702,71#,72#..DCWDO202409

main19000-78N03iN04C..XKU70#,71#,72#201712-201805

main19000-78N50iN04C..XKU700,710,720201705-201706

sub19000-78N51

main19000-78N51iN04C..XKU700,710,720201706-201709

sub19000-78N52

main19000-78N52iN04C..XKU70#,71#,72#201709-201712

sub19000-78N03

main19000-78N54iN04C..XKU702,71#,72#..6F201805-201902

sub19000-78N55

main19000-7CA00iN04C..XKU700,710,720201107-201108

sub19000-7CA01

main19000-7CA01iN04C..XKU700,710,720201108-201110

sub19000-7CA02

main19000-7CA02iN04C..XKU700,710,720201110-201203

sub19000-7CA03

sub17444-E0060

subSZ178-10007

main19000-7CA03iN04C..XKU700,710,720201203-201209

sub19000-7CA04

main19000-7CA04iN04C..XKU700,710,720201209-201210

sub19000-7CA05

main19000-7CA05iN04C..XKU700,710,720201210-201312

sub19000-7CA06

main19000-7CA06iN04C..XKU700,710,720201312-201406

sub19000-7CA07

main19000-7CA07iN04C..XKU700,710,720201406-201409

sub19000-7CA08

main19000-7CA08iN04C..XKU700,710,720201409-201508

sub19000-7CA09

main19000-7CA09iN04C..XKU700,710,720201508-201705

sub19000-78R00

main19000-7CV31iN04C..XKU702,71#,72#201905-201906

sub19000-7CV32

main19000-7CV32iN04C..XKU702,71#,72#201906-201908

sub19000-7CV33

main19000-7CV33iN04C..XKU702,71#,72#201908-202008

sub19000-7CV34

main19000-7CV34iN04C..XKU702,71#,72#202008-202011

sub19000-7CV35

main19000-7CV35iN04C..XKU702,71#,72#202011-202102

sub19000-7CV36

main19000-7CV36iN04C..XKU702,71#,72#..DCWDO202102-202302

sub19000-7CV38

main19000-7CV38iN04C..XKU702,71#,72#..DCWDO202302-202307

sub19000-7CV39

main19000-7CV39iN04C..XKU702,71#,72#..DCWDO202307-202310

sub19000-0UG80

main19000-7CY10iN04C..XKU702,71#,72#..6F201902-201905

sub19000-7CY11

1 parts on this diagram · 1 diagram in section
