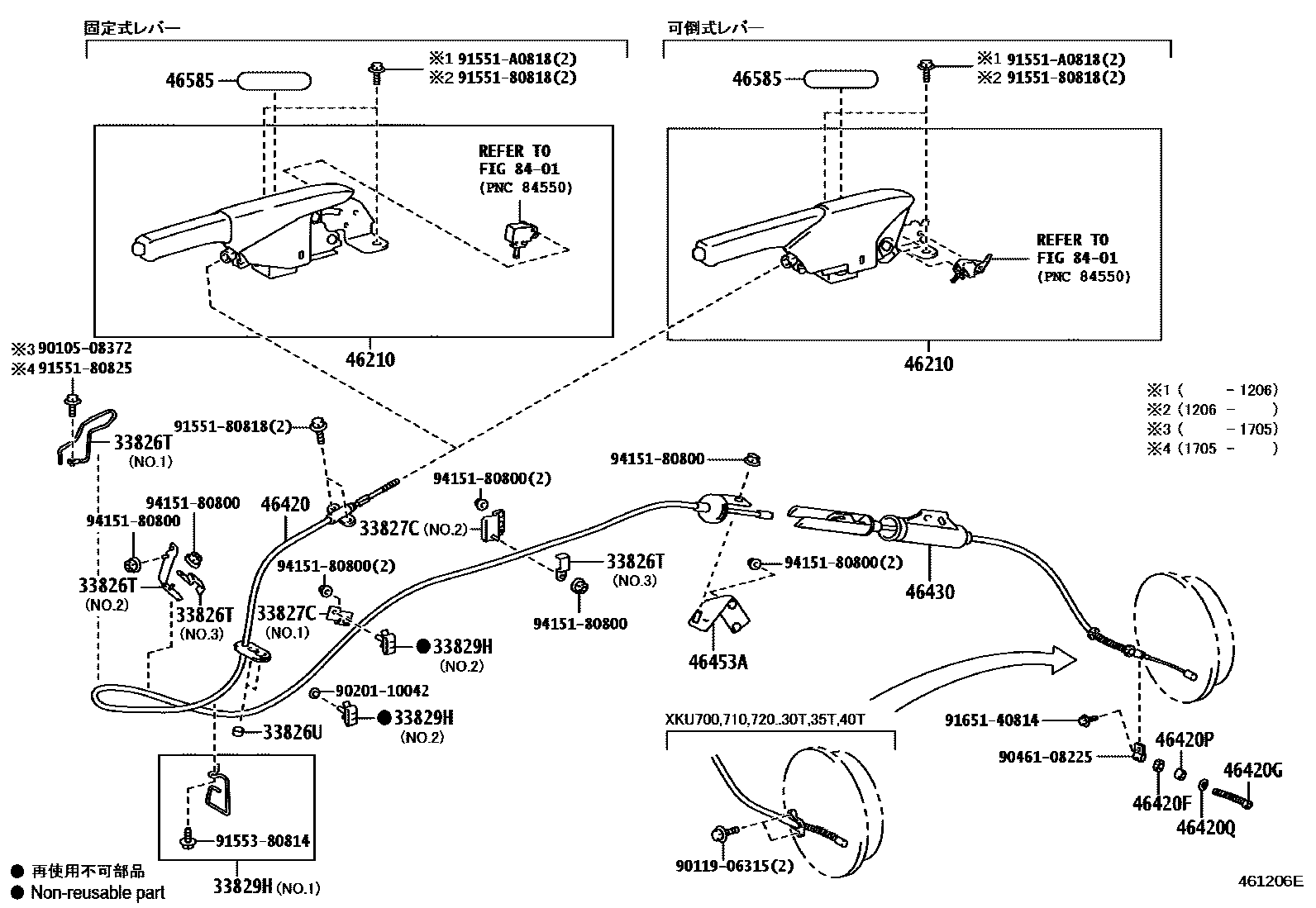

Toyota DYNA/TOYOACE HV — PARKING BRAKE & CABLE

0001 1 0002 1��(������ ������������) 0003 1��(������ ������������) 0004 1��(������ ������������) 0005 1��(������ ������������) 0006 1 0008 1

33826TBRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33826-37580iXKU702,71#,72#..DCWDO201107-201905

main33826-37A50iXKU702,71#,72#..DCWDO201107-201905

main33826-37B90iXKU700,710,720..5F201107-201905

33826UBRACKET, TRANSMISSION CONTROL CABLE, NO.3

main33577-37050iXKU700,710,720..5F201107-201905

33827CBRACKET, TRANSMISSION CONTROL CABLE, NO.3

main33827-37160iXKU700,710,720201107-201905

main33827-37320iXKU700,710,720201107-201905

33829HCLAMP, TRANSMISSION CONTROL CABLE

main33829-37210iXKU700,710,720201107-201905

main33829-37340iXKU700,710,720201107-201905

46210LEVER ASSY, PARKING BRAKE

main46210-37150-C0iXKU700,710,720201107-201703

sub46210-37151

sub46211-37021

main46210-37150-C0iXKU700,710,720201107-201703

BLACK,TRIM1#

sub46210-37151

sub46211-37021

main46211-37021-C0iXKU700,710,720..5F201704-201905

BLACK,TRIM1#

main46211-37021-C0iXKU700,710,720201704-201705

main46211-37021-C0iXKU700,710,720..5F201705-201905

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-37A40iXKU700,710,720201107-201905

main46420-37C31iXKU702,71#,72#..DCWDO201905

46420FSEAL, DUST(FOR PARKING BRAKE CABLE)

main90303-10001iXKU710,720..5F..20T201107-201805

46420GSPRING(FOR PARKING CABLE INNER WIRE SET)

main90501-14003iXKU710,720..20T201107-201805

46420PSPACER, PARKING BRAKE

main90560-08002iXKU710,720..20T201107-201805

46420QRING, E(FOR PARKING BRAKE CABLE)

main96160-00700iXKU710,720..5F..20T201107-201805

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-37D50iXKU710,720..20T201107-201312

sub46430-37D51

main46430-37D51iXKU710,720..20T201401-201805

main46430-37D60iXKU700,710,720..30T,35T,40T201107-201805

main46430-37D80iXKU702,71#,72#..6F201711-201905

main46430-37K40iXKU702,71#,72#..DCRWD201905

46453ABRACKET, CABLE SUPPORT, NO.3

main46453-37200iXKU700,710,720201107-201905

main46453-37471iXKU702,71#,72#..DCRWD201905

46585PLATE, PARKING BRAKE CAUTION

main46585-37020iXKU700,710,720201610-201705

main46585-37020iXKU700,710,720..5F201705-201905

8401

9010508372

main90105-08372

9011906315

main90119-06315

9020110042

main90201-10042

9046108225

main90461-08225

9155180818

main91551-80818

9155180825

main91551-80825

91551A0818

main91551-A0818

9155380814

main91553-80814

9165140814

main91651-40814

9415180800

main94151-80800

24 parts on this diagram · 7 diagrams in section
