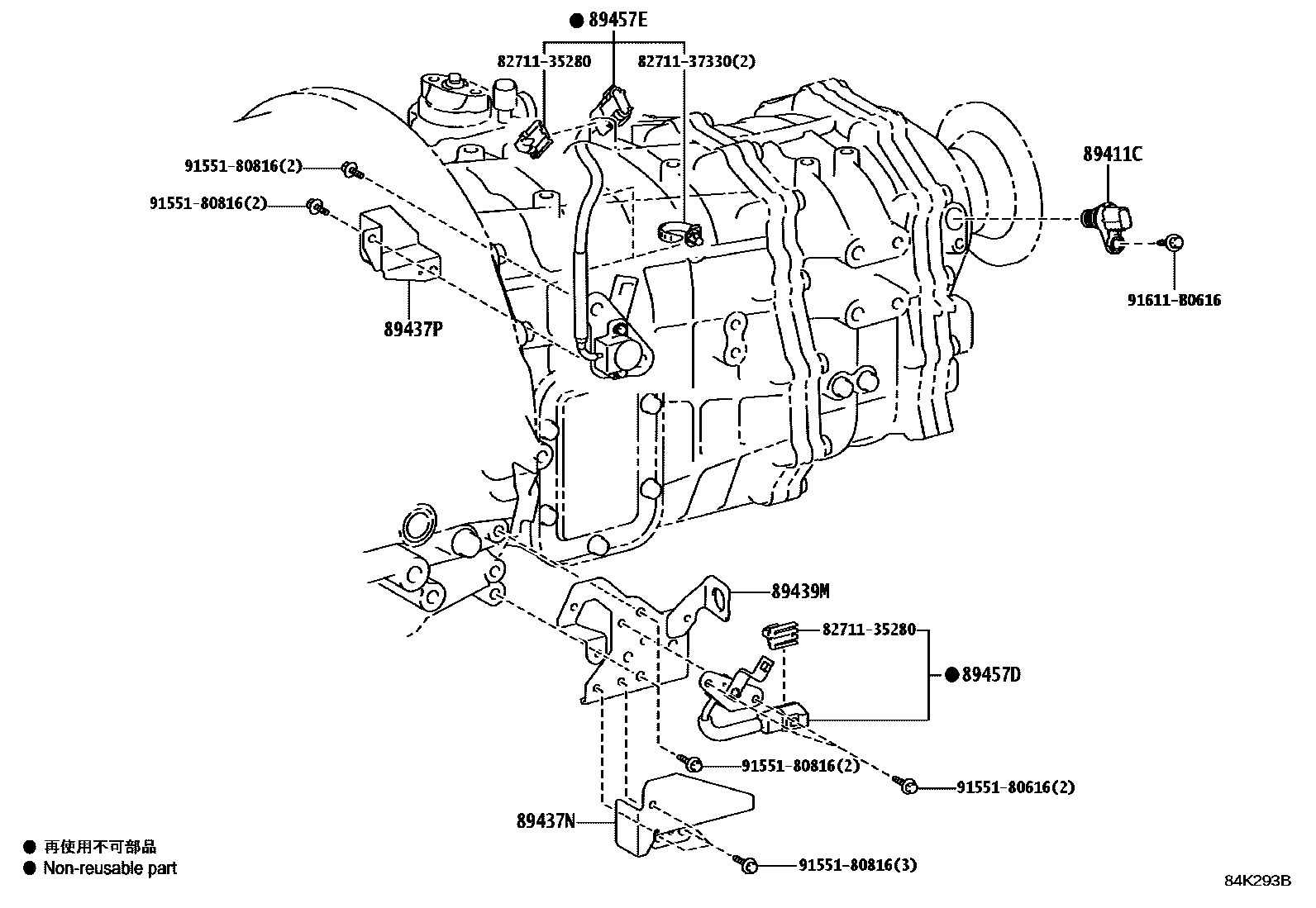

Toyota DYNA/TOYOACE HV — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

89411CSENSOR, SPEED

main89411-37020iXKU702,71#,72#..DCRWD201905

89437NCOVER, SENSOR, NO.1

main89437-37030iXKU702,71#,72#..DCRWD201905

89437PCOVER, SENSOR, NO.2

main89437-37040iXKU702,71#,72#..DCRWD201905

89439MBRACKET, SENSOR, NO.1

main89439-37500iXKU702,71#,72#..DCRWD201905

89457DSENSOR, TRANSMISSION STROKE, NO.1

main89457-37020iXKU702,71#,72#..DCRWD201905

89457ESENSOR, TRANSMISSION STROKE, NO.2

main89457-37030iXKU702,71#,72#..DCRWD201905

8271135280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35280

8271137330WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-37330

9155180616

main91551-80616

9155180816

main91551-80816

91611B0616

main91611-B0616

11 parts on this diagram · 1 diagram in section
