Toyota DYNA/TOYOACE HV — METER

0001 1������������ 0002 1������������ 0003 1������

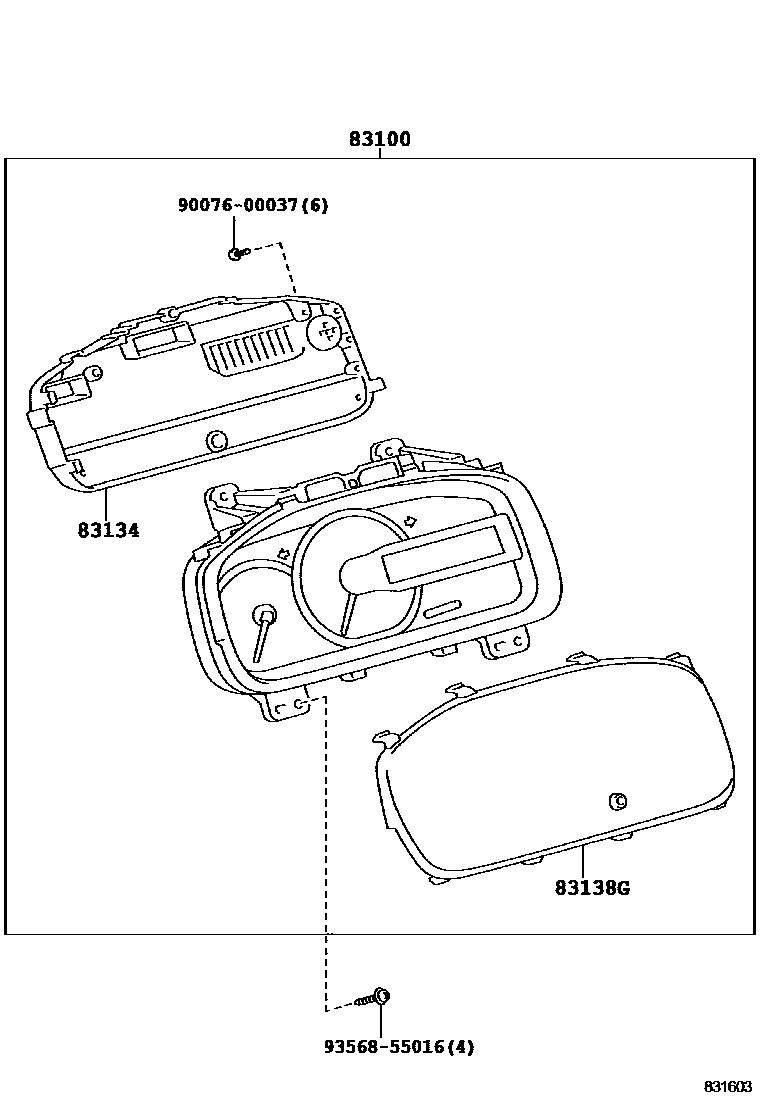

83100METER ASSY, COMBINATION

main83800-37M30iXKU700,710,720201107-201305

sub83800-37M33

main83800-37M33iXKU700,710,720201305-201404

sub83800-37M34

main83800-37M34iXKU700,710,720201405-201605

main83800-37S10iXKU700,710,720201605-201705

main83800-37T10iXKU700,710,720201705-201905

main83800-37U70iXKU702,71#,72#..DCRWD201905-202201

main83800-37U71iXKU702,71#,72#..DCWDO202202-202309

main83800-37X80iXKU702,71#,72#..DCWDO202310

83134COVER, COMBINATION METER, NO.1

main83821-37M10iXKU700,710,720201107-201905

83138GGLASS, COMBINATION METER

main83852-37M10iXKU700,710,720201107-201905

main83852-37U20iXKU702,71#,72#..DCRWD201905

9007600037

main90076-00037

9356855016

main93568-55016

5 parts on this diagram · 3 diagrams in section
