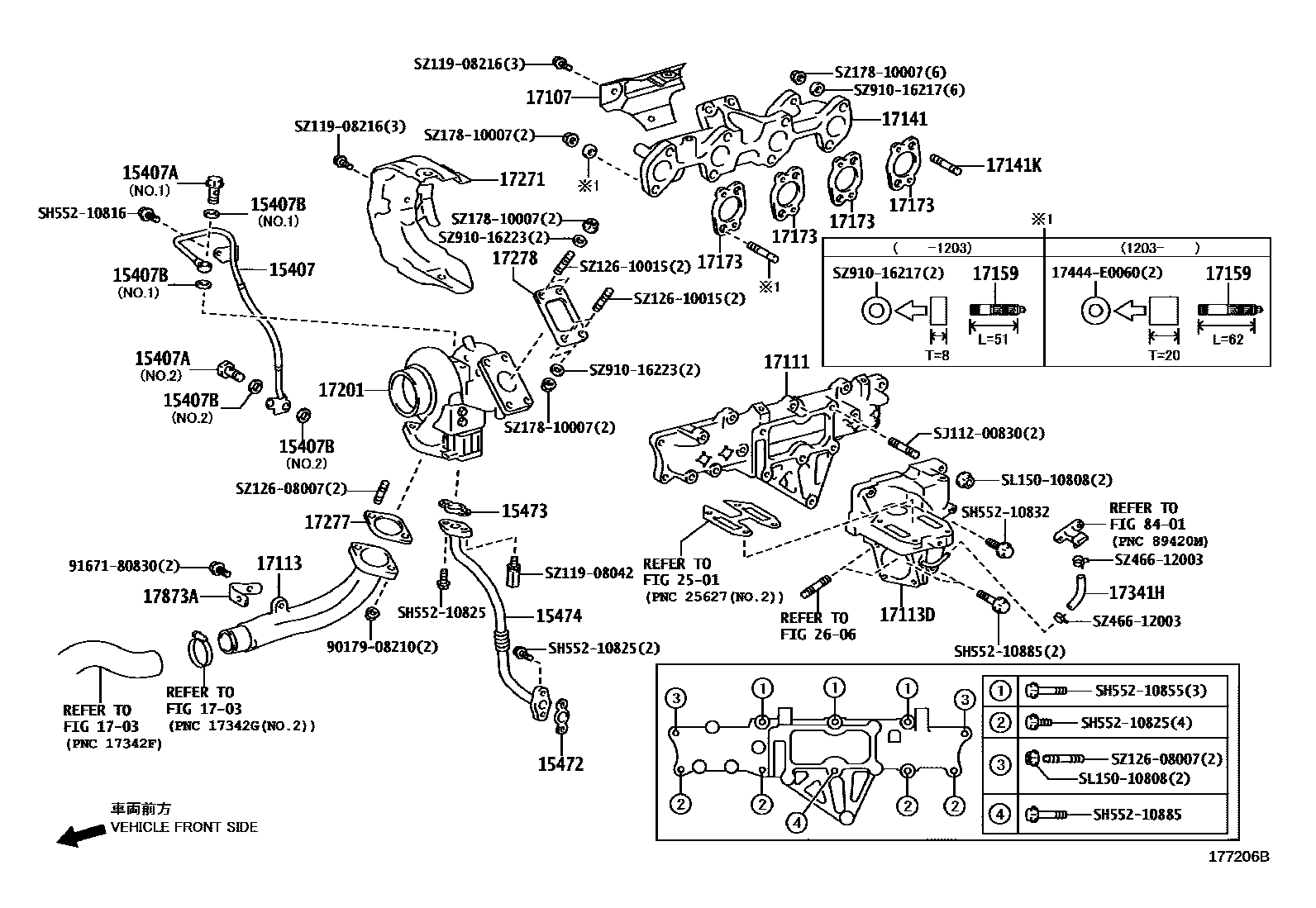

Toyota DYNA/TOYOACE HV — MANIFOLD

0001 1������ & ���������� 0002 1������ & ���������� 0003 1����������������KIT 0004 1����������������KIT

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-E0250iN04C..XKU700,710,720201107-201603

sub15407-E0252

main15407-E0252iN04C..XKU700,710,720..5F201603-201901

sub15407-E0253

main15407-E0253iN04C..XKU702,71#,72#..DCRWD201902-201909

sub15407-E0254

main15407-E0254iN04C..XKU702,71#,72#..DCRWD201910

15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)

mainSZ40112001iN04C..XKU702,71#,72#..DCWDO201107-201905

mainSZ40114004iN04C..XKU702,71#,72#..DCWDO201107-201905

15407BGASKET(FOR TURBO OIL INLET PIPE)

mainSL72201210iN04C..XKU702,71#,72#..6F201107-201905

mainSL72201415iN04C..XKU702,71#,72#..DCWDO201107-201905

15472GASKET, TURBO OIL OUTLET, NO.1

main15472-E0070iN04C..XKU702,71#,72#..DCWDO202201

mainS241351161iN04C..XKU702,71#,72#..6F201107-202112

15473GASKET, TURBO OIL OUTLET, NO.2

main15472-E0050iN04C..XKU700,710,720..5F201412-201905

mainS241351181iN04C..XKU700,710,720201107-201411

sub15472-E0050

15474PIPE, TURBO OIL OUTLET

main15407-78221iN04C..XKU702,71#,72#..DCWDO201905

main15407-E0270iN04C..XKU702,71#,72#..6F201107-201905

1703

17107INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT

main17107-78210iN04C..XKU702,71#,72#..DCWDO202310

main17107-E0012iN04C..XKU702,71#,72#..DCWDO201107-202310

17111MANIFOLD, INTAKE

main17111-78110iN04C..XKU702,71#,72#..DCRWD201905

main17111-E0351iN04C..XKU700,710,720201107-201606

sub17111-E0352

main17111-E0352iN04C..XKU700,710,720201607-201705

sub17111-E0353

main17111-E0353iN04C..XKU700,710,720..5F201705-201904

sub17111-78110

17113PIPE, INTAKE

main17113-78440iN04C..XKU700,710,720201107-201110

sub17113-78441

main17113-78441iN04C..XKU700,710,720201111-201704

sub17113-78442

main17113-78442iN04C..XKU70#,71#,72#201705-201801

sub17113-78443

main17113-78443iN04C..XKU700,710,720..5F201802-201905

17113DPIPE, INTAKE, NO.1

main17103-78221iN04C..XKU700,710,720201701-201709

sub17103-78222

main17103-78222iN04C..XKU702,71#,72#..6F201710-201905

sub17103-78223

main17103-78310iN04C..XKU702,71#,72#..DCRWD201905-202010

sub17103-78311

main17103-78311iN04C..XKU702,71#,72#..DCWDO202011-202409

sub17103-78400

sub17341-78410

main17103-78400iN04C..XKU702,71#,72#..DCWDO202409

main17103-E0G20iN04C..XKU700,710,720201107-201701

sub17103-78221

17141MANIFOLD, EXHAUST

main17141-E0370iN04C..XKU700,710,720201107-201905

17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)

mainSZ12610012iN04C..XKU702,71#,72#..6F201107-201905

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

mainSZ12610006iN04C..XKU702,71#,72#..DCWDO201203-201905

mainSZ12610012iN04C..XKU700,710,720201107-201203

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-78080iN04C..XKU700,710,720201612-201905

mainS171041880iN04C..XKU700,710,720201107-201612

sub17173-78080

17201TURBOCHARGER SUB-ASSY

main17201-78300iN04C..XKU702,71#,72#..DCWDO201905

main17201-E0740iN04C..XKU700,710,720201107-201205

sub17201-E0741

main17201-E0741iN04C..XKU700,710,720201205-201304

sub17201-E0742

main17201-E0742iN04C..XKU700,710,720201304-201401

sub17201-E0743

main17201-E0743iN04C..XKU700,710,720201401-201502

sub17201-E0744

main17201-E0744iN04C..XKU700,710,720201503-201509

sub17201-E0745

main17201-E0745iN04C..XKU700,710,720201510-201708

sub17201-E0746

main17201-E0746iN04C..XKU700,710,720..5F201709-201905

sub17201-E0747

17271INSULATOR, TURBO, NO.1

main17271-78080iN04C..XKU702,71#,72#..6F201704-201905

main17271-E0210iN04C..XKU700,710,720201107-201703

sub17271-78080

17277GASKET, COMPRESSOR OUTLET

main17277-78030iN04C..XKU702,71#,72#..DCWDO201107-201905

17278GASKET, TURBO TO EXHAUST MANIFOLD

mainS241091860iN04C..XKU700,710,720201107-201905

17341HHOSE, AIR

main17341-78410iN04C..XKU702,71#,72#..DCWDO202409

mainSZ92033B09iN04C..XKU700,710,720..5F201107-201905

mainSZ92033B09iN04C..XKU702,71#,72#..DCWDO202103-202409

17873ABRACKET, INTAKE AIR CONNECTOR, NO.2

main17872-78060iN04C..XKU700,710,720201107-201905

2501

2606

8401

17444E0060PIPE, EXHAUST, NO.4

main17444-E0060

9017908210

main90179-08210

9167180830

main91671-80830

SH55210816

mainSH552-10816

SH55210825

mainSH552-10825

SH55210832

mainSH552-10832

SH55210855

mainSH552-10855

SH55210885

mainSH552-10885

SJ11200830

mainSJ112-00830

SL15010808

mainSL150-10808

SZ11908042

mainSZ119-08042

SZ11908216

mainSZ119-08216

SZ12608007

mainSZ126-08007

SZ12610015

mainSZ126-10015

SZ17810007

mainSZ178-10007

SZ46612003

mainSZ466-12003

SZ91016217

mainSZ910-16217

SZ91016223

mainSZ910-16223

42 parts on this diagram · 4 diagrams in section
