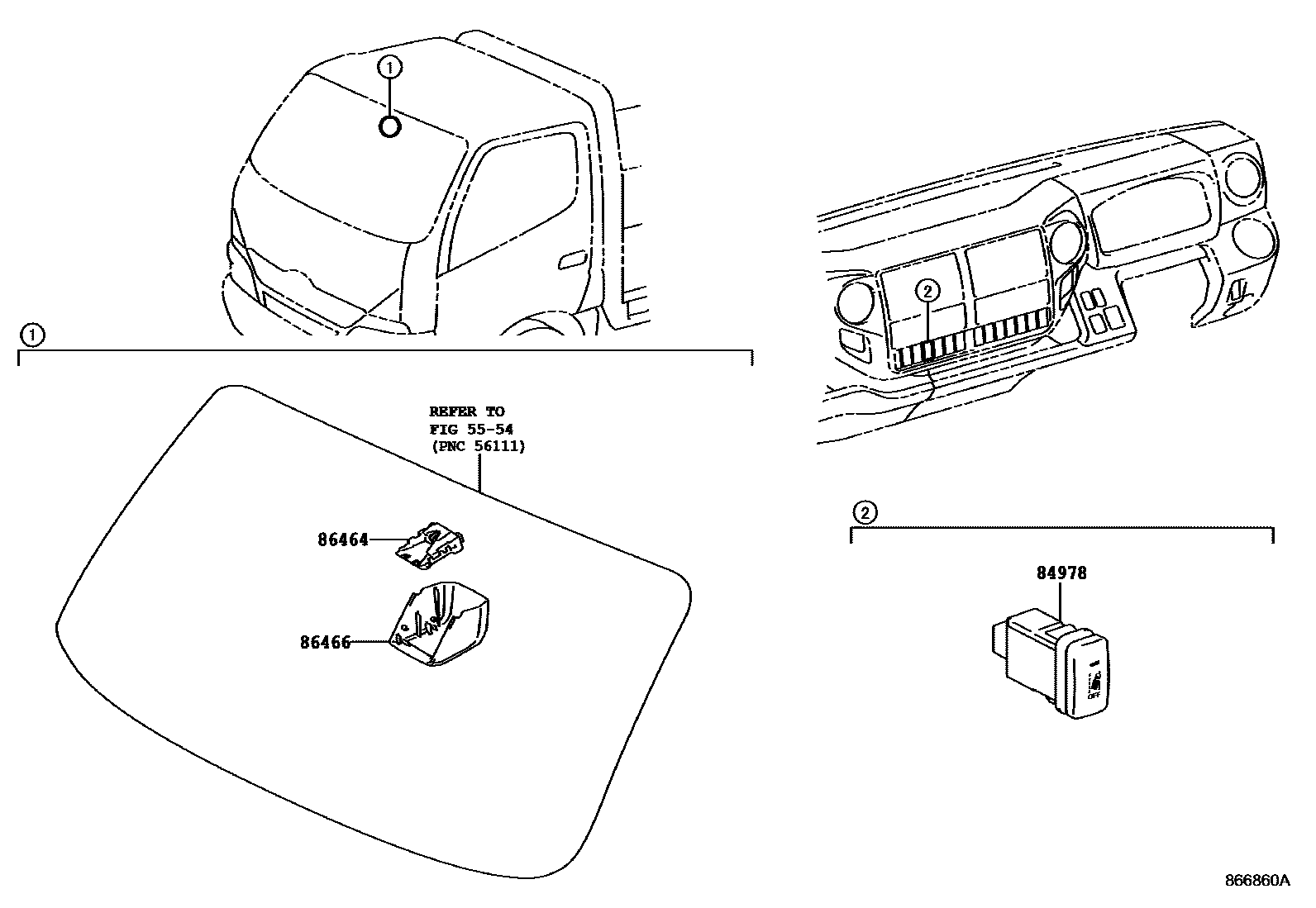

Toyota DYNA/TOYOACE HV — LANE-KEEPING ASSIST

0001 1 0002 1

5554

84978SWITCH, LANE-KEEPING ASSIST MAIN

main84270-37390iXKU700,710,720..5F201705-201805

main84270-37390iXKU702,71#,72#..6F201705-201905

86464SENSOR, LANE RECOGNITION CAMERA

main86464-37020iXKU700,710,720..5F201705-201905

main86464-37020iXKU702,71#,72#201905-202005

main86464-37030iXKU702,71#,72#202005-202009

sub86464-37031

main86464-37031iXKU702,71#,72#..DCRWD202010

86466COVER, LANE DEPARTURE WARNING CAMERA, NO.1

main86466-37010iXKU700,710,720..5F201705-201905

main86466-37010iXKU702,71#,72#..DCRWD201905

4 parts on this diagram · 2 diagrams in section
