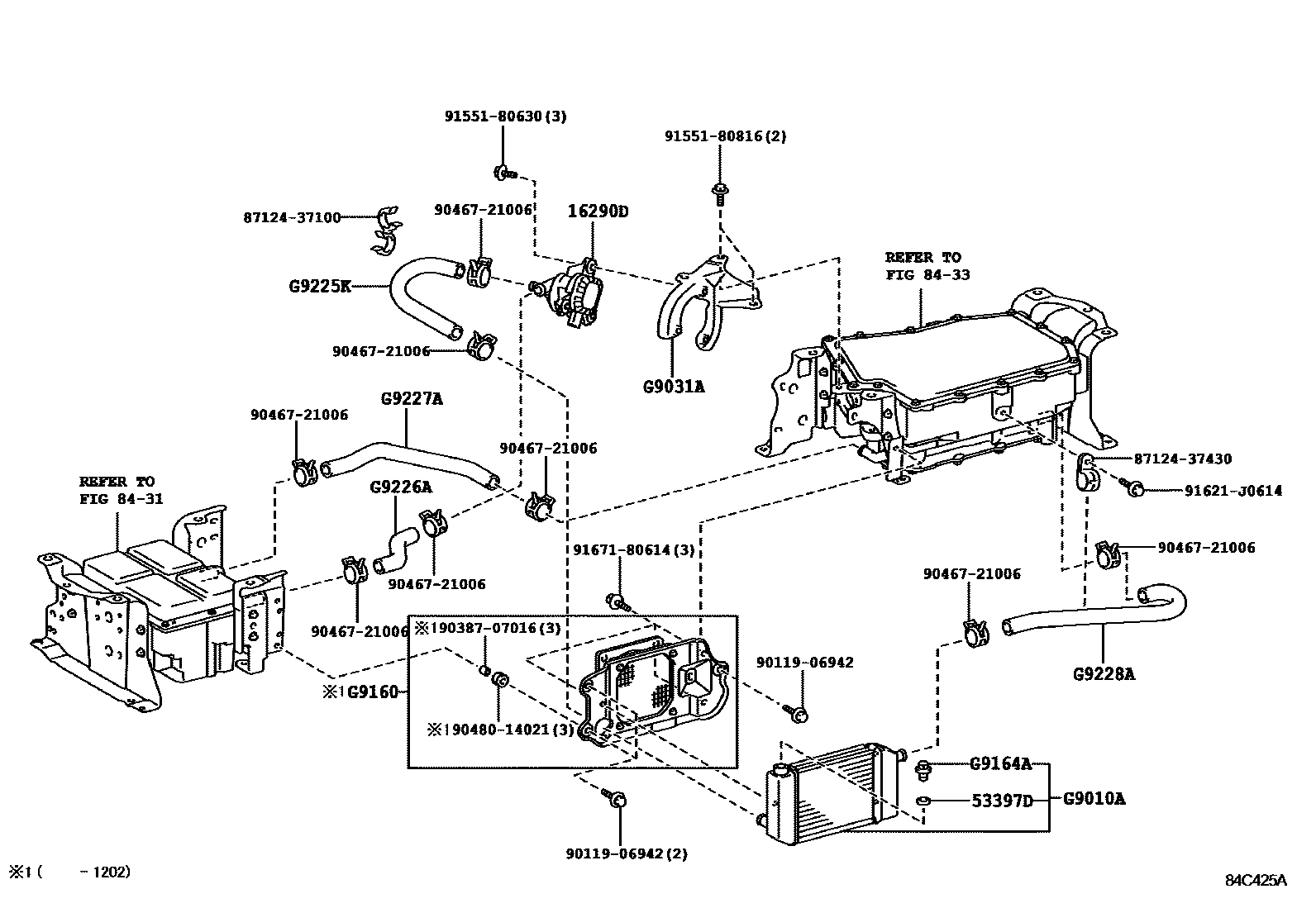

Toyota DYNA/TOYOACE HV — INVERTER COOLING

0001 1 0002 1 0003 1

16290DPUMP ASSY, WATER W/MOTOR

mainG904037030iN04C..XKU700,710,720201107-201711

mainG9040E0010iN04C..XKU700,710,720..5F201711-201905

53397DSEAL, RADIATOR, UPPER

main53397-37030iXKU700,710,720201107-201905

8431

8433

G9010ARADIATOR ASSY

mainG901037010iXKU700,710,720201107-201905

mainG901037020iXKU702,71#,72#..DCRWD201905

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914137010iXKU700,710,720201107-201711

mainG914137020iXKU700,710,720..5F201711-201905

G9160FAN ASSY, INVERTER COOLING W/MOTOR & BRACKET

mainG916037010iXKU700,710,720201107-201201

subG9160-37011

mainG916037011iXKU700,710,720201202-201905

G9164ACAP, INVERTER RADIATOR

mainG916437010iXKU700,710,720201107-201905

G9225KHOSE, INVERTER COOLING, NO.1

mainG922537010iXKU700,710,720201107-201711

mainG922537020iXKU700,710,720..5F201711-201905

mainG922537030iXKU702,71#,72#..DCRWD201905

G9226AHOSE, INVERTER COOLING, NO.2

mainG922637010iXKU700,710,720201107-201711

mainG922637020iXKU700,710,720..5F201711-201905

mainG922637030iXKU702,71#,72#..DCRWD201905

G9227AHOSE, INVERTER COOLING, NO.3

mainG922737010iXKU700,710,720201107-201711

mainG922737030iXKU700,710,720..5F201711-201905

mainG922737050iXKU702,71#,72#..DCRWD201905

G9228AHOSE, INVERTER COOLING, NO.4

mainG922837010iXKU700,710,720201107-201905

mainG922837030iXKU702,71#,72#..DCRWD201905

8712437100CLAMP, HEATER

main87124-37100

8712437430CLAMP, HEATER

main87124-37430

9011906942

main90119-06942

9038707016

main90387-07016

9046721006

main90467-21006

9048014021

main90480-14021

9155180630

main91551-80630

9155180816

main91551-80816

91621J0614

main91621-J0614

9167180614

main91671-80614

22 parts on this diagram · 3 diagrams in section
