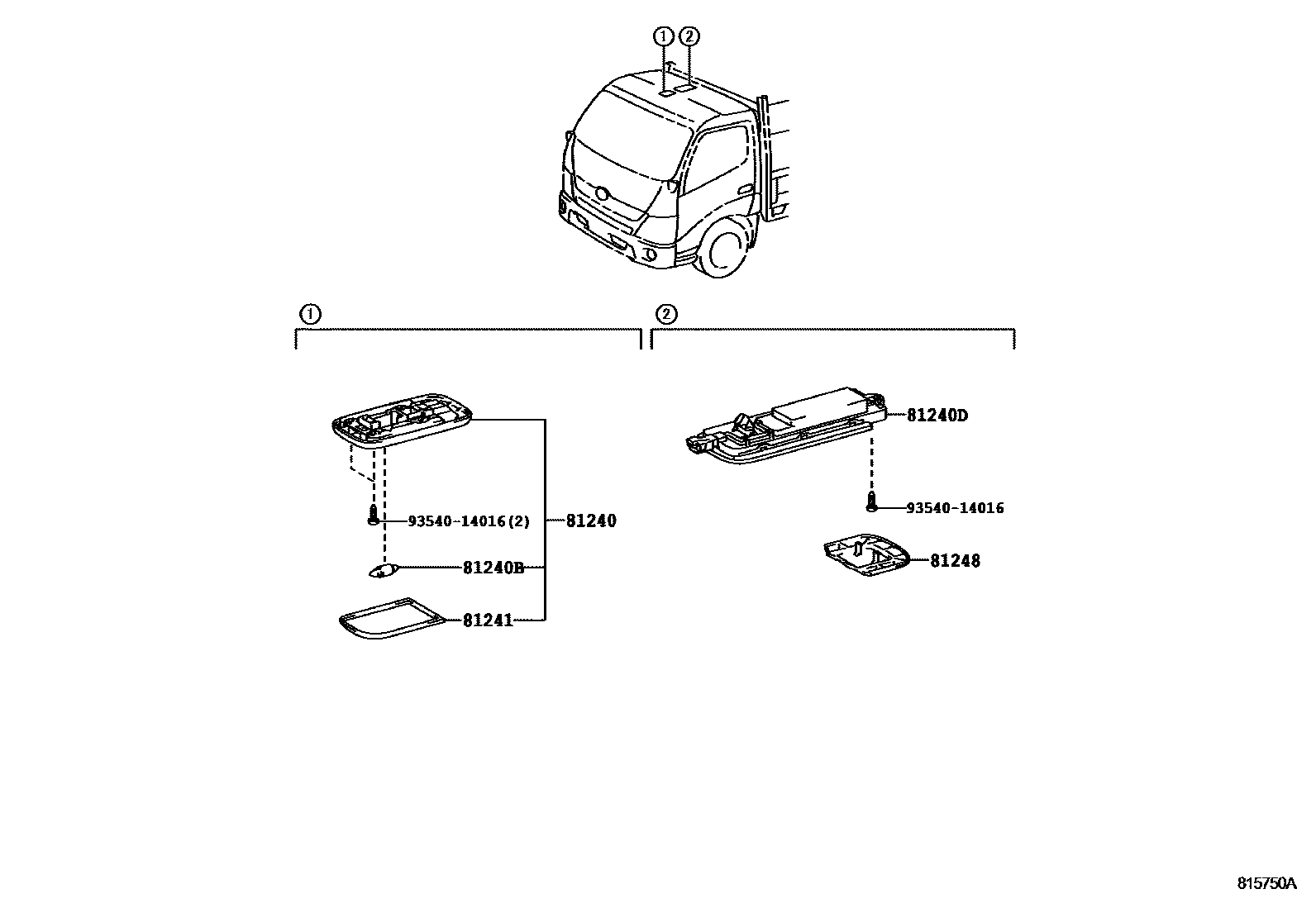

Toyota DYNA/TOYOACE HV — INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-E0090iXKU700,710,720201107-201905

81240BBULB, ROOM LAMP, NO.1

mainSZ98032045iXKU700,710,720201107-201905

81240DLAMP ASSY, ROOM, NO.2

81241LENS, ROOM LAMP, NO.1

mainS812411140iXKU700,710,720201107-201905

81248COVER, ROOM LAMP, NO.1

main87834-37040

9354014016

main93540-14016

6 parts on this diagram · 2 diagrams in section
