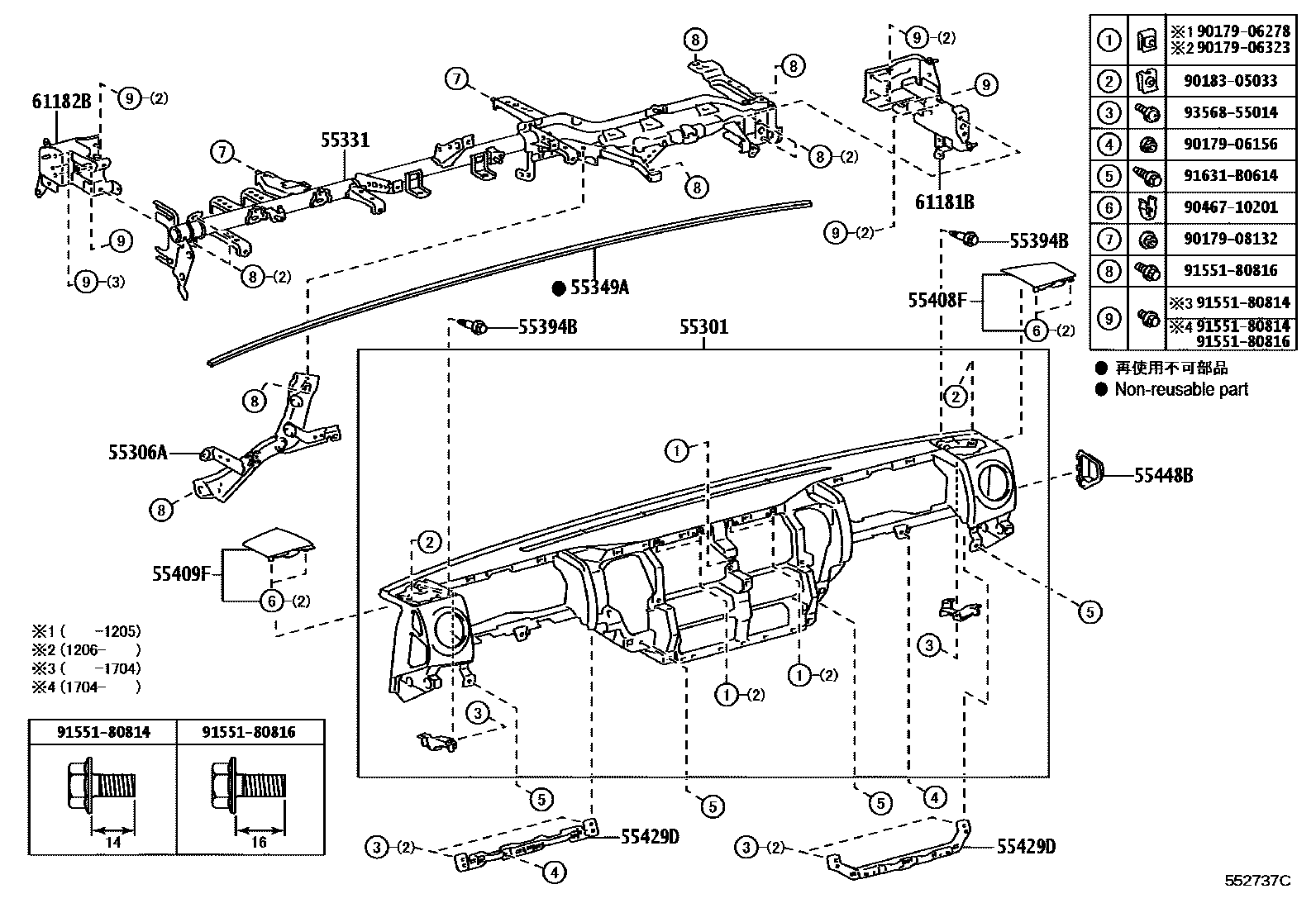

Toyota DYNA/TOYOACE HV — INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55301-37080-C0i201107-201412

BLACK,TRIM1#

sub55301-37081

main55301-37081-C0i201501-202310

BLACK,TRIM1#

main55301-37100-C0i202310

BLACK,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-37080i201107-201312

sub55306-37081

main55306-37081i201401-201805

sub55306-37082

main55306-37082i201806-201911

sub55306-37083

main55306-37083i201912-202403

sub55306-37084

main55306-37084i202404-202409

sub55306-37085

main55306-37085i202410

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-37201i201107-201611

sub55330-37202

main55330-37202i201612-201905

55349ACUSHION, INSTRUMENT PANEL

main55349-37030i201107-201905

55394BBOLT, INSTRUMENT PANEL

main55394-37010i201107-201905

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-37010-C0i201107-201905

BLACK,TRIM1#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-37010-C0i201107-201905

BLACK,TRIM1#

55429DSTAY, INSTRUMENT CLUSTER FINISH PANEL

main55429-37010i201107-201905

main55429-37020i201107-201905

55448BCOVER, OIL RESERVOIR TANK, RH

main55448-37040-C0i201107-201905

BLACK,TRIM1#

61181BBRACKET, INSTRUMENT PANEL SIDE, NO.1 RH

main61035-37090i201107-201905

61182BBRACKET, INSTRUMENT PANEL SIDE, NO.1 LH

main61036-37060i201107-201905

9017906156

main90179-06156

9017906278

main90179-06278

9017906323

main90179-06323

9017908132

main90179-08132

9018305033

main90183-05033

9046710201

main90467-10201

9155180814

main91551-80814

9155180816

main91551-80816

91631B0614

main91631-B0614

9356855014

main93568-55014

21 parts on this diagram · 4 diagrams in section
