1302

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-78270i201905

main22100-E0540i201107-201612

sub22100-E0541

sub26223-E0010

main22100-E0541i201612-201905

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23271-78610i201107-201905

main23271-78621i201905

22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)

main90466-16004i201905

main90467-18008i201107-201905

22100VRING, O(FOR INJECTION PUMP)

mainSN73210493i201107-201905

22214BVALVE ASSY, FUEL ADDITION CUT

mainS2210E0021i201107-201112

subS2210-E0022

mainS2210E0022i201112-201404

subS2210-E0023

mainS2210E0023i201405-201411

subS2210-E0024

mainS2210E0024i201412-201606

subS2210-E0110

mainS2210E0060i201905

mainS2210E0110i201607-201905

22811STAY, INJECTION PUMP, NO.1

main22811-78141i201107-201905

22811DSTAY, INJECTION PUMP, NO.2

mainS225122060i201107-201905

22812ARING, O

mainSN73210793i201107-201905

2302

23083PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3

main23816-78121i201905

main23816-E0330i201107-201504

sub23816-E0331

main23816-E0331i201505-201905

23083ACLAMP, NOZZLE LEAKAGE

mainS799043390i201107-201905

23083CGASKET(NOZZLE LEKAGE PIPE NO.3)

mainSZ43008013i201107-201905

23083DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main21811-E0040i201210-201303

sub21811-E0060

main21811-E0060i201303-201905

mainSZ40108003i201107-201210

sub21811-E0060

23271HHOSE, FUEL, NO.1

main23271-E0540i201107-201905

23271MHOSE, FUEL

main95337-06012i201107-201905

23271NCLIP, HOSE

main21576-E0010i201905-202101

main21576-E0170i201107-201905

main21576-E0170i201905-202310

main21576-E0170i202310

mainS2304EW041i202102

23271WCLIP(FOR FUEL HOSE NO.1)

mainSZ46618001i201107-201905

23273HHOSE, FUEL, NO.2

main23273-78600i201107-201905

main23273-78802i201905

23273VCLIP(FOR FUEL HOSE NO.2)

main96132-51300i201107-201904

main96133-41301i201905

23280MLIMITTER ASSY, FUEL PRESSURE

main23280-E0020i201107-201905

23681ASEAL, NOZZLE HOLDER

main23681-78030i202010

mainS230741070i201107-202009

sub23681-78030

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-78160i201107-201905

main23701-78170i201905

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-78160i201107-201905

main23702-78170i201905

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-78150i201107-201608

sub23703-78151

main23703-78151i201609-201905

main23703-78160i201905

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-78150i201107-201602

sub23704-78151

main23704-78151i201603-201905

main23704-78160i201905

23741CLAMP, INJECTION PIPE, NO.1

main21576-E0010i201905-202101

mainS2304EW041i202102

mainS799041240i201107-201905

23741BCLAMP, INJECTION PIPE

main21576-E0010i201905-202101

main21576-E0020i201905

mainS2304E0010i201107-201905

mainS2304EW041i202102

23742CLAMP, INJECTION PIPE, NO.2

mainS2304E0020i201107-201610

mainS799041021i201610-201905

mainS799042150i201107-201905

mainS799043390i201107-201905

23742ACLAMP, INJECTION PIPE, NO.3

mainS799042180i201107-201905

mainS799044090i201107-201905

23801LPIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23801-78150i201610-201905

main23801-78161i201107-201201

sub23801-78162

main23801-78162i201201-201504

sub23801-78163

main23801-78163i201505-201507

sub23801-78164

main23801-78164i201508-201610

main23801-78180i201107-201905

main23801-78230i201905-201912

sub23801-78231

main23801-78231i202001

main23801-78241i201905

23801MBOLT, UNION

mainSZ40110019i201107-201905

mainSZ40110019i201905

mainSZ40114004i201107-201905

23801NGASKET

mainSZ20914017i201905

mainSZ43010011i201107-201905

mainSZ43014003i201107-201905

23803HPIPE SUB-ASSY, FUEL RETURN

main23816-78140i201905

main23816-E0340i201107-201112

sub23816-E0341

main23816-E0341i201112-201504

sub23816-E0342

main23816-E0342i201505-201905

23803JBOLT, UNION(FOR FUEL RETURN PIPE)

main21811-E0070i201503-201905

mainSZ40110004i201107-201502

23804DPIPE SUB-ASSY, FUEL, NO.4

main23816-78130i201905-202101

sub23816-78131

main23816-78131i202102

main23816-78150i201107-201504

sub23816-78151

main23816-78151i201505-201905

main23816-78200i201905

main23816-E0351i201107-201504

sub23816-E0352

main23816-E0352i201505-201905

main23816-E0371i201107-201905

23804FGASKET(FOR FUEL PIPE NO.4)

mainSZ43010011i201107-201905

23810ARAIL ASSY, COMMON

main23810-78060i201905

main23810-E0240i201107-201905

23811GPIPE, FUEL, NO.1

main23811-78300i201905-201908

sub23811-78340

main23811-78311i201905

main23811-78340i201909

main23811-E0851i201107-201504

sub23811-E0852

main23811-E0852i201505-201507

sub23811-E0853

main23811-E0853i201508-201610

main23811-E0871i201107-201905

main23811-E0K50i201610-201904

sub23811-78330

23811JBOLT, UNION

mainSZ40114004i201107-201905

23811KGASKET

mainSZ43014003i201107-201905

23849SUPPORT, FUEL

main23849-E0600i201107-201905

23849GSUPPORT, FUEL PIPE

main23809-78200i201905

main23809-78210i201905-202310

sub23809-78230

main23809-78230i202310

main23809-E0400i201107-201905

main23809-E0410i201107-201905

23849HSUPPORT, FUEL PIPE

main23809-78080i201612-202310

sub23809-78240

main23809-78100i201107-201611

sub23809-78080

main23809-78240i202310

main23849-78210i201107-201905

main23849-78240i201905

23849JSUPPORT, FUEL PIPE(FOR RAIL ASSY, COMMON)

main23849-78220i201107-201905

7751

8401

21811E0070BOLT, UNION NIPPLE

main21811-E0070

827153VJ01BRACKET,WIRING HARNESS CLAMP

main82715-3VJ01

S228351610

mainS2283-51610

SH55210816

mainSH552-10816

SH55210820

mainSH552-10820

SH55210825

mainSH552-10825

SH55210832

mainSH552-10832

SH55210840

mainSH552-10840

SH55210865

mainSH552-10865

SH55211020

mainSH552-11020

SH55211028

mainSH552-11028

SH55211050

mainSH552-11050

SH55215810

mainSH552-15810

SJ13200835

mainSJ132-00835

SL15010808

mainSL150-10808

SZ40114033

mainSZ401-14033

SZ43010011WASHER, SOFT, NO.1

mainSZ430-10011

SZ43014003WASHER, SOFT, NO.1

mainSZ430-14003

SZ91016362

mainSZ910-16362

SZ91024483

mainSZ910-24483

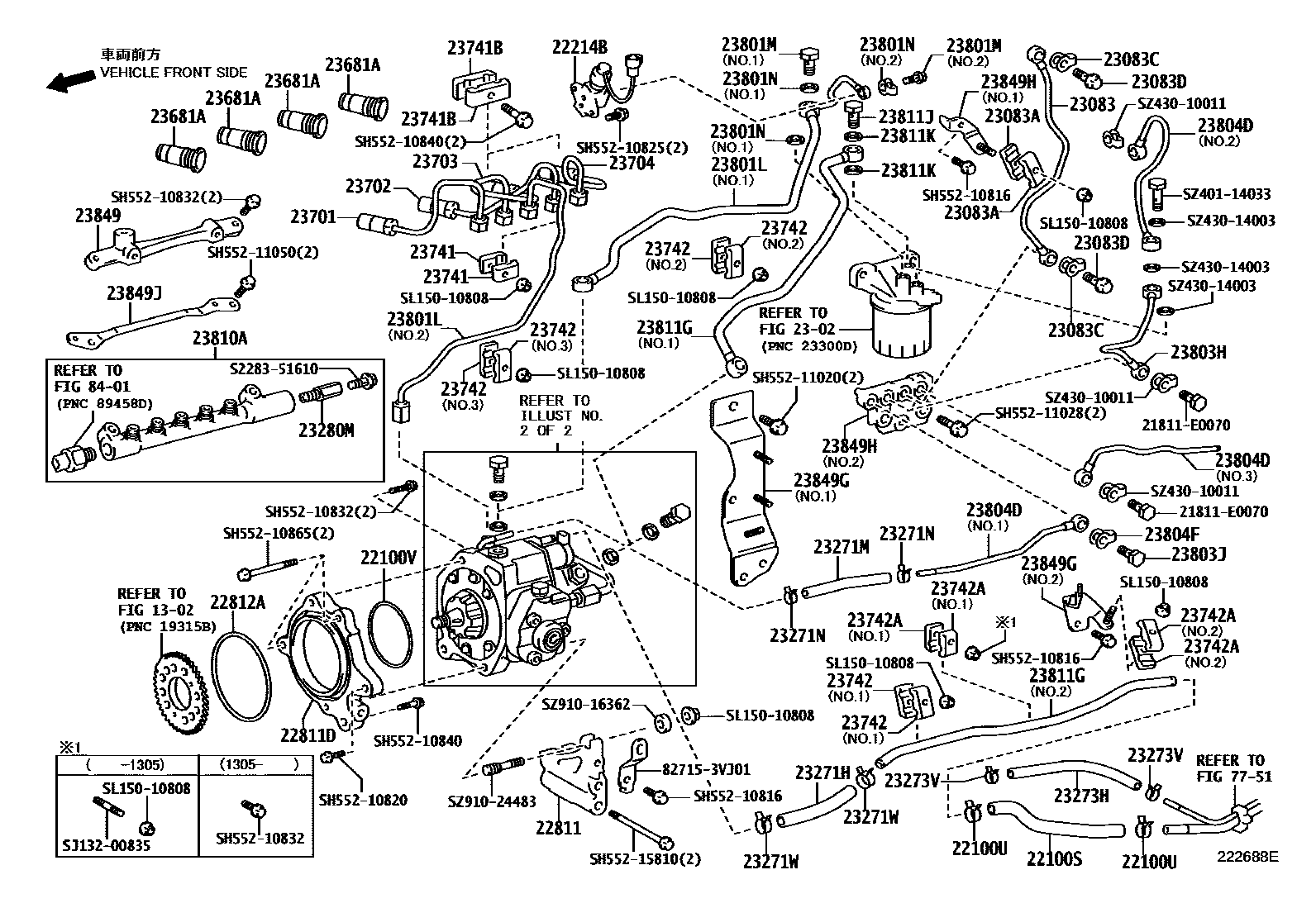

Toyota DYNA/TOYOACE HV — INJECTION PUMP ASSEMBLY
