Toyota DYNA/TOYOACE HV — INJECTION NOZZLE

1104

11177GASKET, INJECTION NOZZLE SEAT

main23682-E0050iN04C..XKU702,71#,72#..DCRWD201107-201905

2202

23600CGASKET(FOR HOLDER & NOZZLE SET)

mainS236611340iN04C..XKU702,71#,72#..DCRWD201107-201905

23627ASCREW, FOLLOW(FOR NOZZLE)

main21811-E0050iN04C..XKU700,710,720201210-201905

mainS228351570iN04C..XKU700,710,720201107-201210

23627CWASHER(FOR NOZZLE)

mainSZ20908024iN04C..XKU702,71#,72#..6F201107-201905

23670INJECTOR ASSY

main23670-E9250iN04C..XKU700,710,720201107-201109

sub23670-E9260

main23670-E9260iN04C..XKU700,710,720201110-201508

sub23670-E9261

main23670-E9261iN04C..XKU700,710,720201508-201608

sub23670-E9262

main23670-E9262iN04C..XKU700,710,720201608-201702

sub23670-E9263

main23670-E9263iN04C..XKU700,710,720201702-201905

sub23670-E9264

main23670-E9301iN04C..XKU702,71#,72#..DCWDO201905

23670ARING, O(FOR INJECTOR ASSY)

main15518-E0010iN04C..XKU700,710,720201602-201702

subSZ301-19015

main15518-E0011iN04C..XKU700,710,720201702-201905

mainSZ30119001iN04C..XKU700,710,720201107-201601

23695CLAMP, NOZZLE HOLDER, NO.1

mainS111951140iN04C..XKU702,71#,72#..DCRWD201107-201905

23695BCLAMP, NOZZLE HOLDER, NO.2

main23695-E0080iN04C..XKU700,710,720..5F201107-201905

23710BINJECTOR ASSY, EXHAUST FUEL ADDITION

main23710-E0020iN04C..XKU700,710,720201107-201905

main23710-E0030iN04C..XKU702,71#,72#..DCRWD201905-202001

sub23710-E0031

main23710-E0031iN04C..XKU702,71#,72#..DCWDO202002

23760PIPE ASSY, NOZZLE LEAKAGE

main23708-78031iN04C..XKU702,71#,72#..DCRWD201905

mainS230812630iN04C..XKU700,710,720..5F201107-201905

23760AGASKET

mainSZ20908024iN04C..XKU702,71#,72#..DCRWD201107-201905

23760BBOLT, UNION(FOR NOZZLE LEAKAGE PIPE)

main21811-E0060iN04C..XKU700,710,720..5F201210-201905

mainSZ40108003iN04C..XKU700,710,720201107-201210

sub21811-E0060

23811HPIPE, FUEL, NO.1

main23801-78251iN04C..XKU702,71#,72#..DCRWD201905

main23801-E0300iN04C..XKU700,710,720201107-201201

sub23801-E0301

main23801-E0301iN04C..XKU702,71#,72#..6F201201-201905

23814DPIPE, FUEL DELIVERY

main23814-E0620iN04C..XKU700,710,720201107-201706

sub23814-E0621

main23814-E0621iN04C..XKU700,710,720..5F201707-201905

S799041920CLIP SUB-ASSY

mainS7990-41920

SH55210816

mainSH552-10816

SH55210825

mainSH552-10825

SL15010808

mainSL150-10808

SN73200172

mainSN732-00172

SZ40110019

mainSZ401-10019

SZ43010011WASHER, SOFT, NO.1

mainSZ430-10011

SZ91024325

mainSZ910-24325

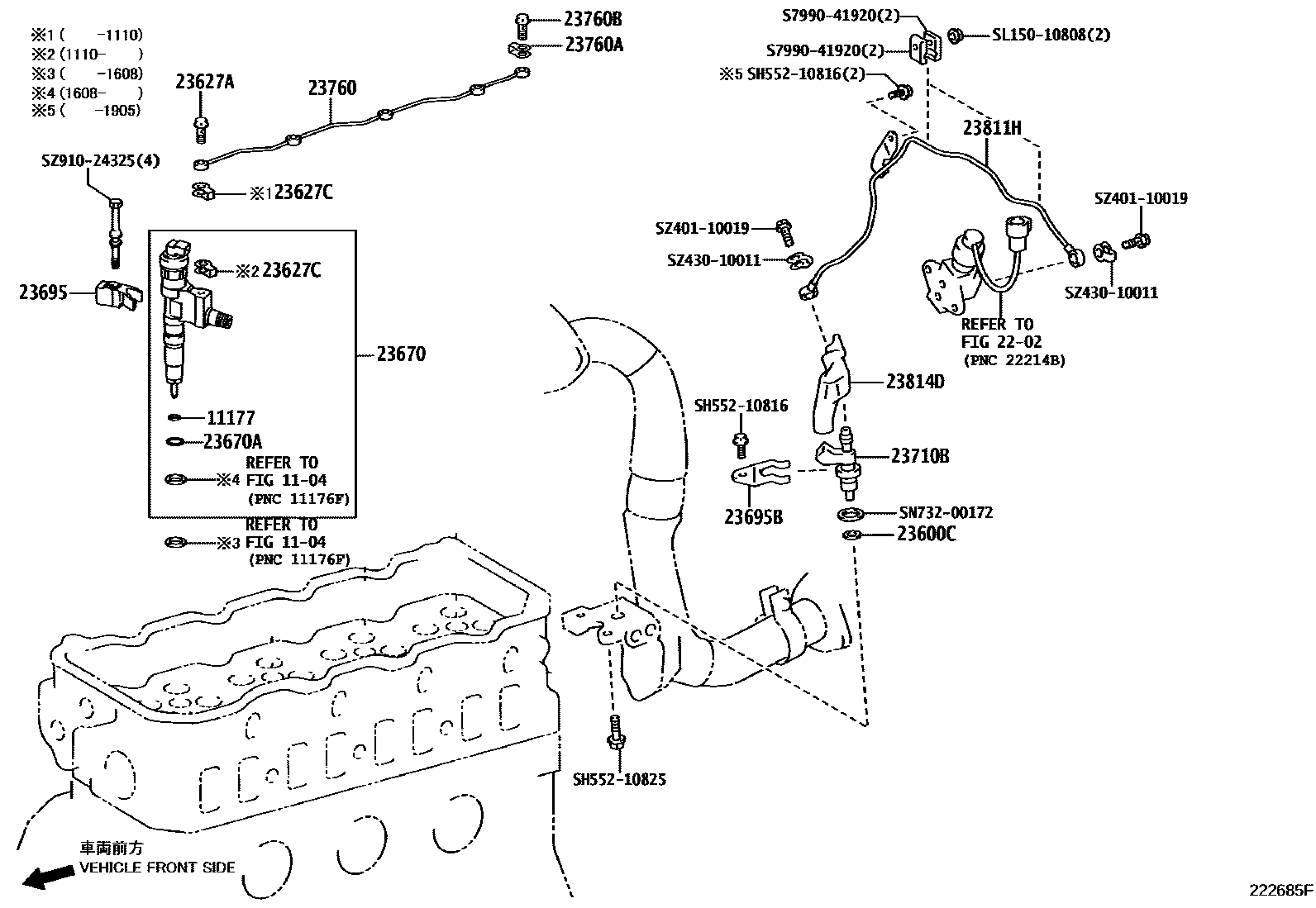

24 parts on this diagram · 1 diagram in section
